Holtgreven GSE-355 I.S. - Manual (Page 17)

8

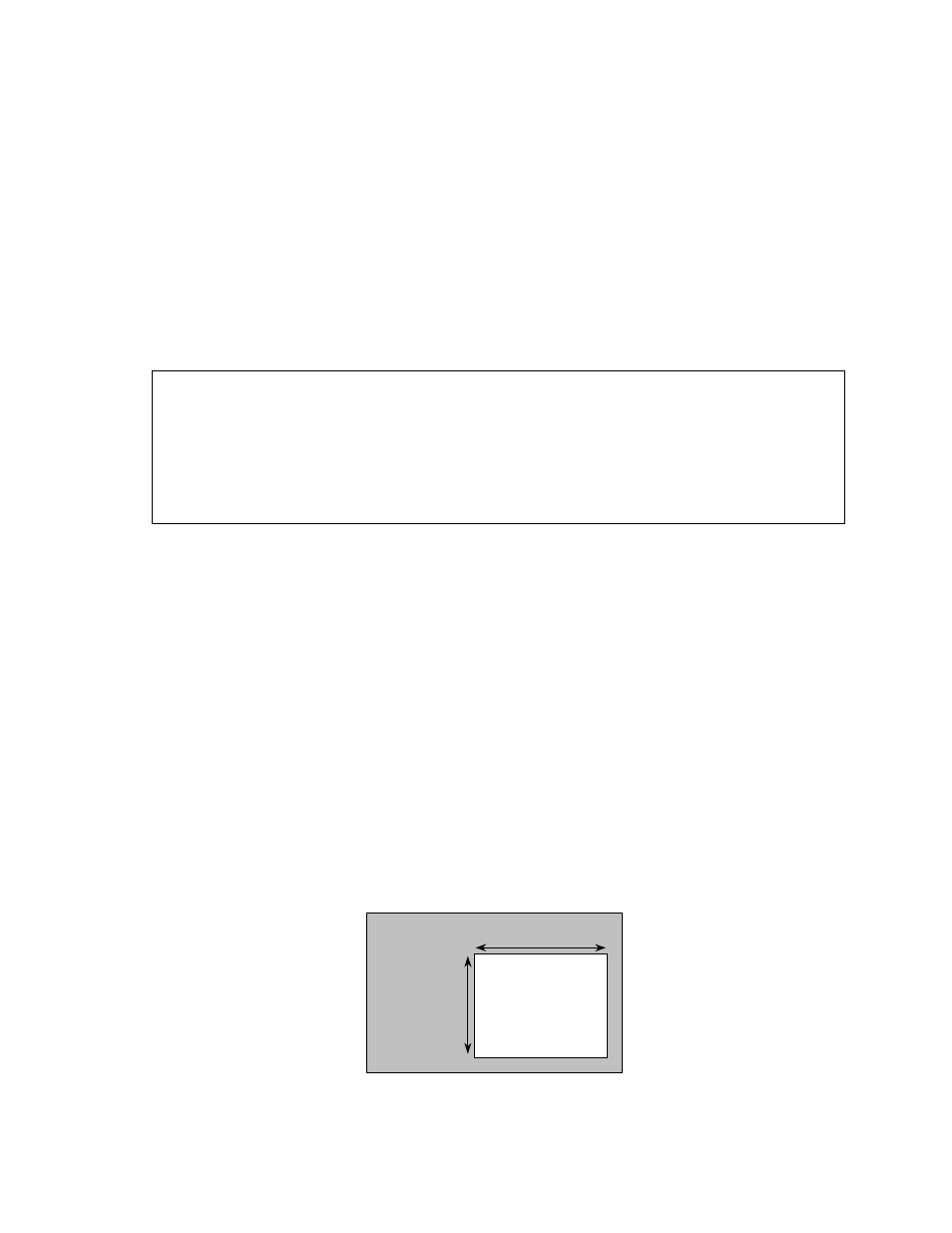

7.33” – 7.45”
(186.2 – 189.2mm)
5.25” – 5.37”
(133.4 – 136.4mm)
PANEL
CUTOUT
C
HAPTER
2: I
NDICATOR
I
NSTALLATION
This chapter contains information necessary for proper installation of the Model 350 and Model 355. Please review
these instructions before installing your controller.
High voltages may exist within the enclosure. To prevent the risk of electrical shock, ALWAYS unplug the Model
350/355 when opening the enclosure. Installation and servicing of the Model 350/355 should be performed only by
authorized and qualified service personnel.
For information on installing options, see Chapter 3: Option Installation. For NTEP and OIML details, see Chapter 6:
Legal-for-Trade.
IMPORTANT! The 350 Series indicators do not include an on/off switch and therefore must be installed
near a power outlet socket that is easily accessible and in keeping with UL/CSA Safety Standards.
INFORMATION IMPORTANT! Prendre note que les contrôleurs de serie 350 ne sont pas munis
d'interrupteurs "Marche / Arrêt". Par conséquent, il devront être installés près d'une source d'alimentation
secteur accessible pour demeurer sous les exigences des normes de sécurité UL/CSA.
Mounting
The standard Model 350 zinc die cast enclosure is a NEMA1 (IP 20) equivalent. The Model 350/355 stainless steel
enclosure meets NEMA 4X type specifications.
When choosing a mounting location for the Model 350 die cast, ensure that the unit is not installed in a washdown area
or conductive dust environment.
D
ESKTOP
M
OUNTING
The standard enclosure is designed for desktop mounting. When set on a flat surface, the front face is angled for easy
viewing. All wiring enters from the rear and can be secured with the included screw mounted cable ties.
P
ANEL
M
OUNTING
The optional panel mount kit allows the zinc die cast enclosure to be installed in a user panel. Allow for 2.00”
(57.2mm) depth behind the panel surface. See Panel Mount Kit on page 16 for more details.
