Page 173

Publication 1757-IN032B-EN-P - April 2001

Additional Redundant Server Procedures 4-9

Configuring RSLinx Drivers
for ControlNet Supervisory
Network

Installing the 1784-PCIC Driver

Install the 1784-PCIC driver for SERVERA first and then repeat the
process for SERVERB.

1. Click Start

⇒

Programs

⇒

Rockwell Software

⇒

RSLinx

⇒

RSLinx

to call up the Rockwell Software RSLinx window.

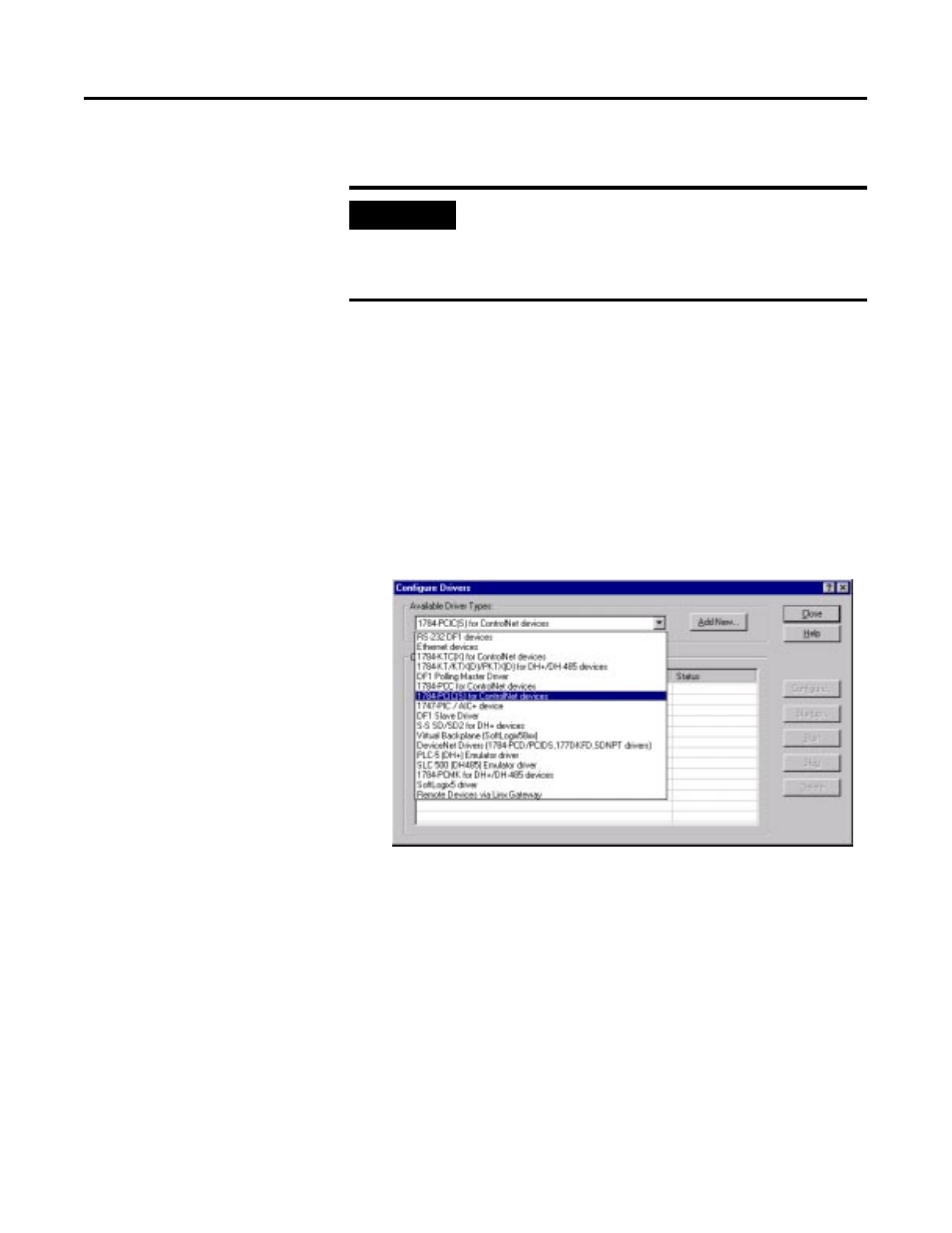

2. Click Communications

⇒

Configure Drivers to call up the

Configure Drivers dialog box.

3. Click the 1784-PCIC(S) for ControlNet devices selection in the

Available Drivers list box and click Add New to call up the Add
New RSLinx Driver dialog box.

4. Click OK to accept the default name AB_PCIC-1 for the driver.

5. In the Configure 1784-PCIC(S) window, enter the following:

•

Serial Number (hex): This value is read from the PCIC card and
does not change.

•

Network Address(dec):

– For SERVERA change the default of 99 to 20

– For SERVERB change the default of 99 to 19

6. Click OK to close the dialog box and start the 1784-PCIC driver.

IMPORTANT

If you are using Ethernet for your Supervisory
Network, restart SERVERA and SERVERB
