1-86 System Software Upgrade Procedures
Setting Up a ProcessLogix Client With Redundant Servers
Use the following procedure to set up the ProcessLogix Client node to
access data in networked ProcessLogix redundant Server nodes.
1. On the SERVERB node, click Start
⇒
Programs
⇒
ProcessLogix
Server
⇒

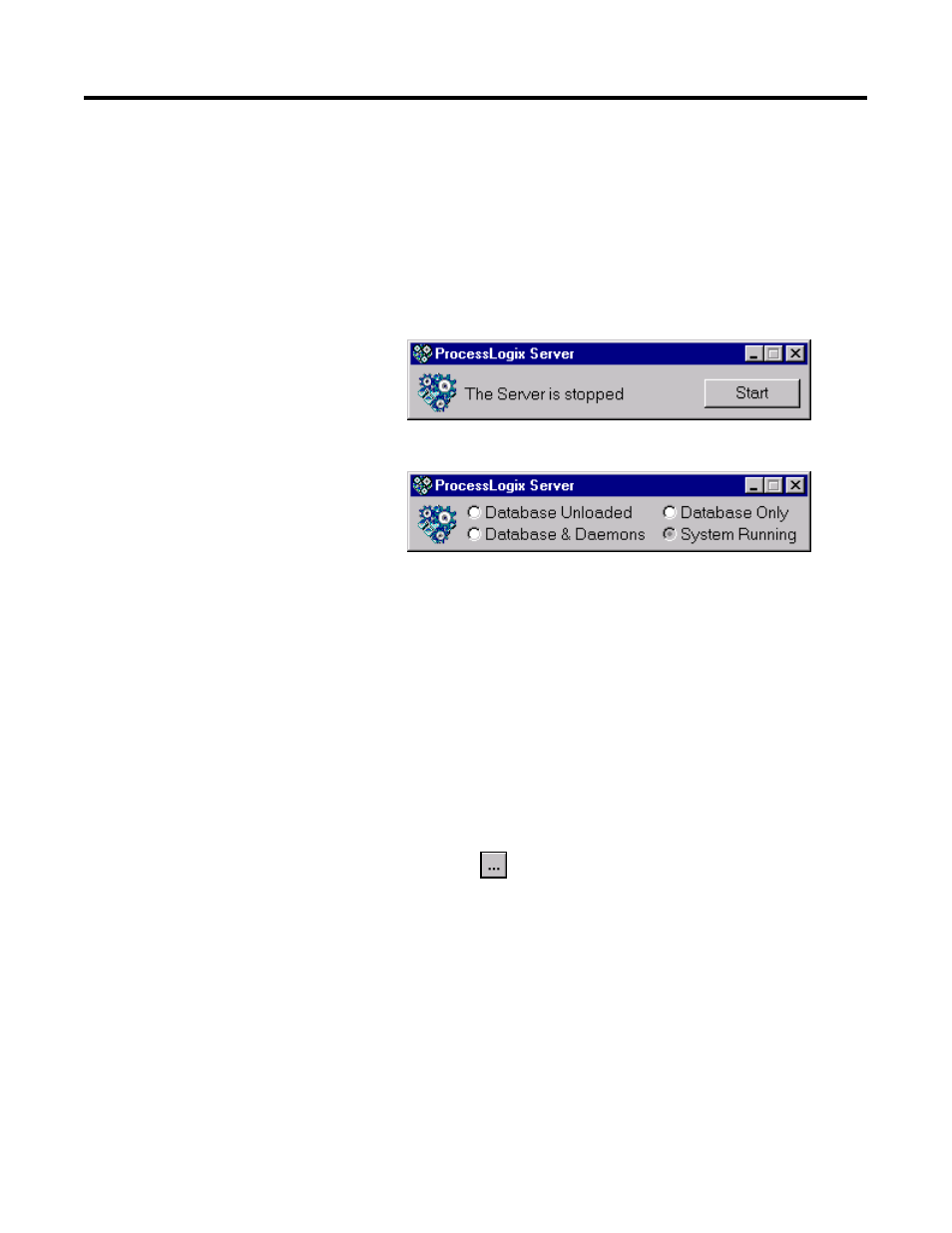

Start-Stop ProcessLogix Server to call up the ProcessLogix
Server dialog box. Check that the Server is running and close the
dialog box.
OR
2. Go to the SERVERA node and repeat Step 1 to check that the
ProcessLogix Server is also running on this node.
3. On the Client Station node, click Start
⇒
Programs
⇒
ProcessLogix
Client Software
⇒
Station.
4. Click Cancel at the Unable to connect prompt, if applicable.
5. Click Station
⇒
Setup to call up the Station Setup dialog box.
6. Click the down arrow button in the Server Connection field and
select Network (TCP/IP).
7. Click Setup in the Server Connection field to call up the
TCP/IP Setup dialog box. Make these entries to have the Station
point to the SERVERB (PLX1B) node:
a. Key in the name or IP address of the SERVERB (PLX1B) node
specified in the Hosts file in the Server Name field.
The PLX1B is the default Server name assigned by the factory. It
is used for example purposes only.
b. Select the appropriate option, Static or Rotary.
c. Key in >3< as the Station Number for Static or key in
appropriate update rates and display number for Rotary.
d. Key in >default.stn< in the Auxiliary Setup File field.
