Publication 1758-UM002D-EN-P - October 2010
DataSite Configuration Settings Utility (DS Settings) 97

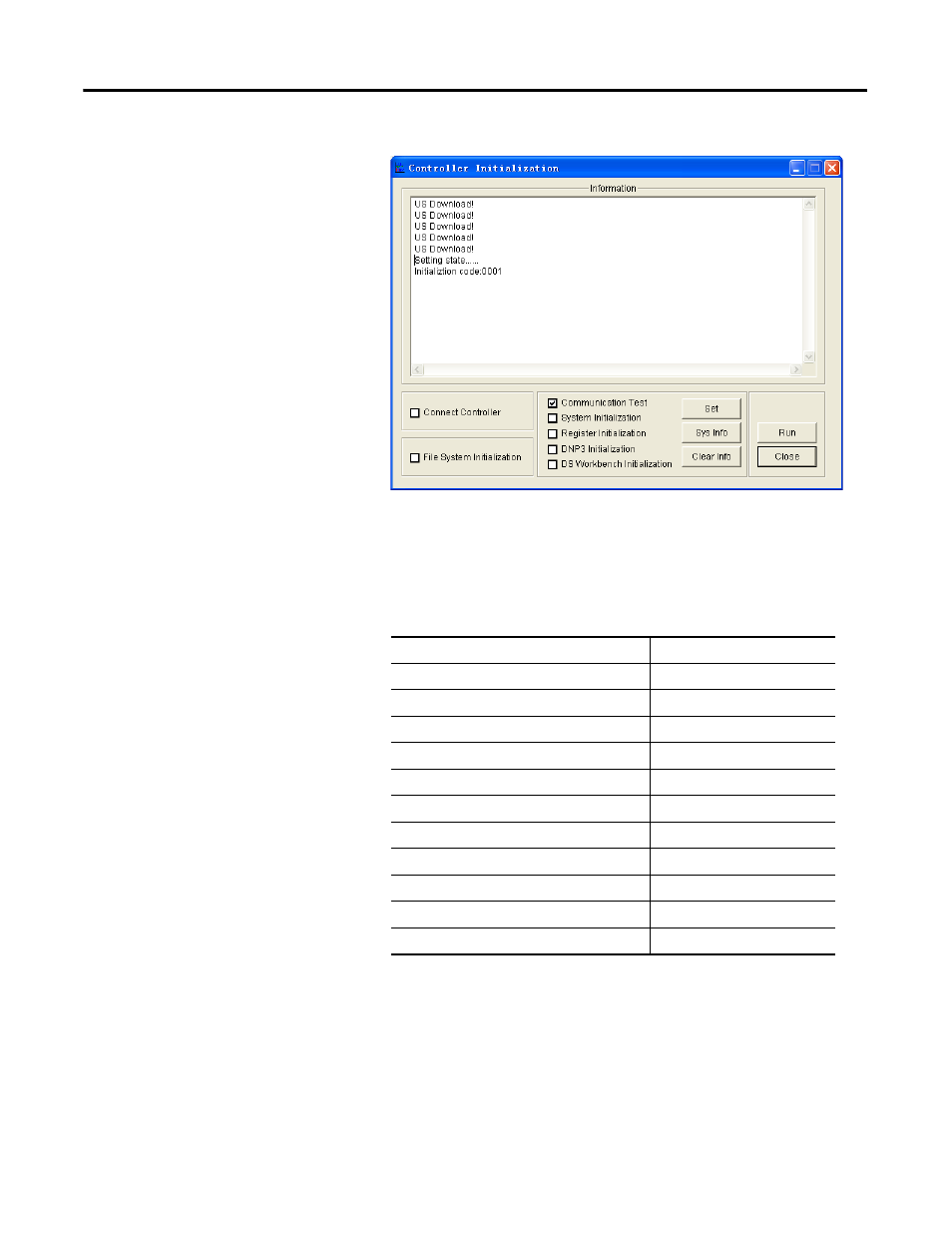

4. Click Run followed by Close.
Here the communication parameters of COM2 are set to be test
parameters. See this table.
5. Start DS Settings, and choose PC Communication Settings from the
Tools menu. Set the PC baud rate as 57600.
COM2 communication test parameters
Parameter name Parameter value
Station 1
Protocol Modbus RTU
Master/Slave state Slave
Duplex Full
Baud rate (bps) 57600
Parity None
Data bits 8
Stop bits 1
Port type RS232
Timeout (10 ms) 100
Delay time (10 ms) 0
