246 DataSite DNP3 Configuration Utility (DS DNP3)
The following table lists the range and default value of each PC
communication parameter.
3.

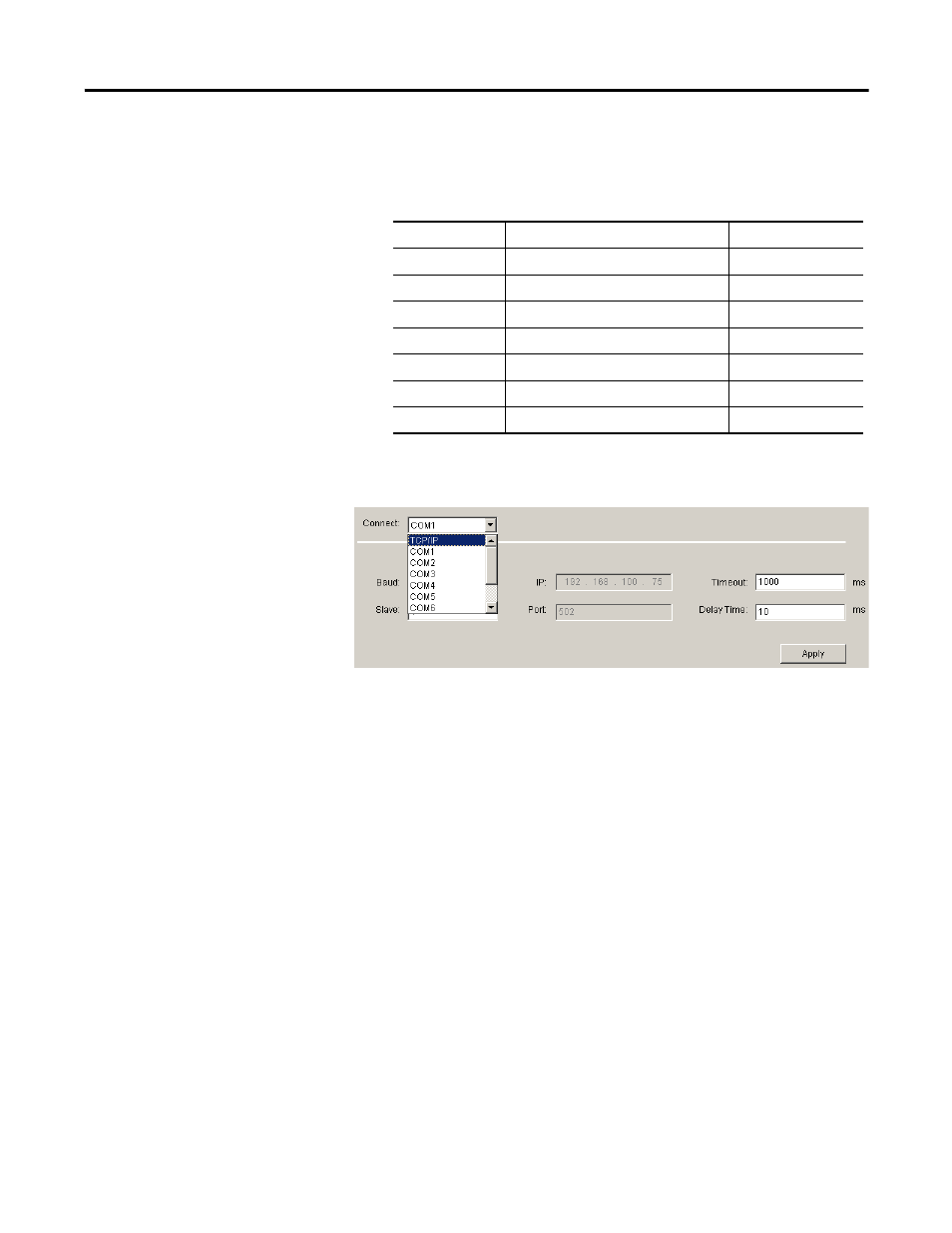

From the Connect pull-down menu, select a TCP/IP or a serial (COM)
port.
If you have selected TCP/IP, skip to step 6 to configure TCP/IP port
settings.
If you have selected a COM port, continue to configure COM port
settings.
4.
Determine the parameters for the serial port of the DataSite controller
currently in use. From the Baud pull-down menu, select the baud rate
for the COM port.
5.
In the Slave box, enter the slave station number.
6.
Enter the IP address and communication port number.
7.
In the Delay Time box, enter the duration, in milliseconds, for the delay
time. Maximum delay time allowed is 1 s (or 1000 ms).
8.
In the Timeout box, enter the duration, in milliseconds, for the timeout.
Maximum timeout allowed is 10 s (or 10000 ms).
Value ranges of PC communication parameter
Variable
Range
Default Value
Connect
TCP/IP, COM1…COM9
TCP/IP
Baud
2400, 4800, 9600, 38400, 57600
9600
Slave
1…247
1
IP
xxx.xxx.xxx.xxx
192.168.100.75
Port
5…65535
502
Delay Time
10…1000
10
Timeout
1000…10000
1000
