Publication 1758-UM002D-EN-P - October 2010
DataSite Configuration Settings Utility (DS Settings) 25
Configure TCP/IP Settings
Follow these steps to configure the Ethernet port.
1. In the TCP/IP Settings box, double-click the row for the TCP/IP port
you want to configure.

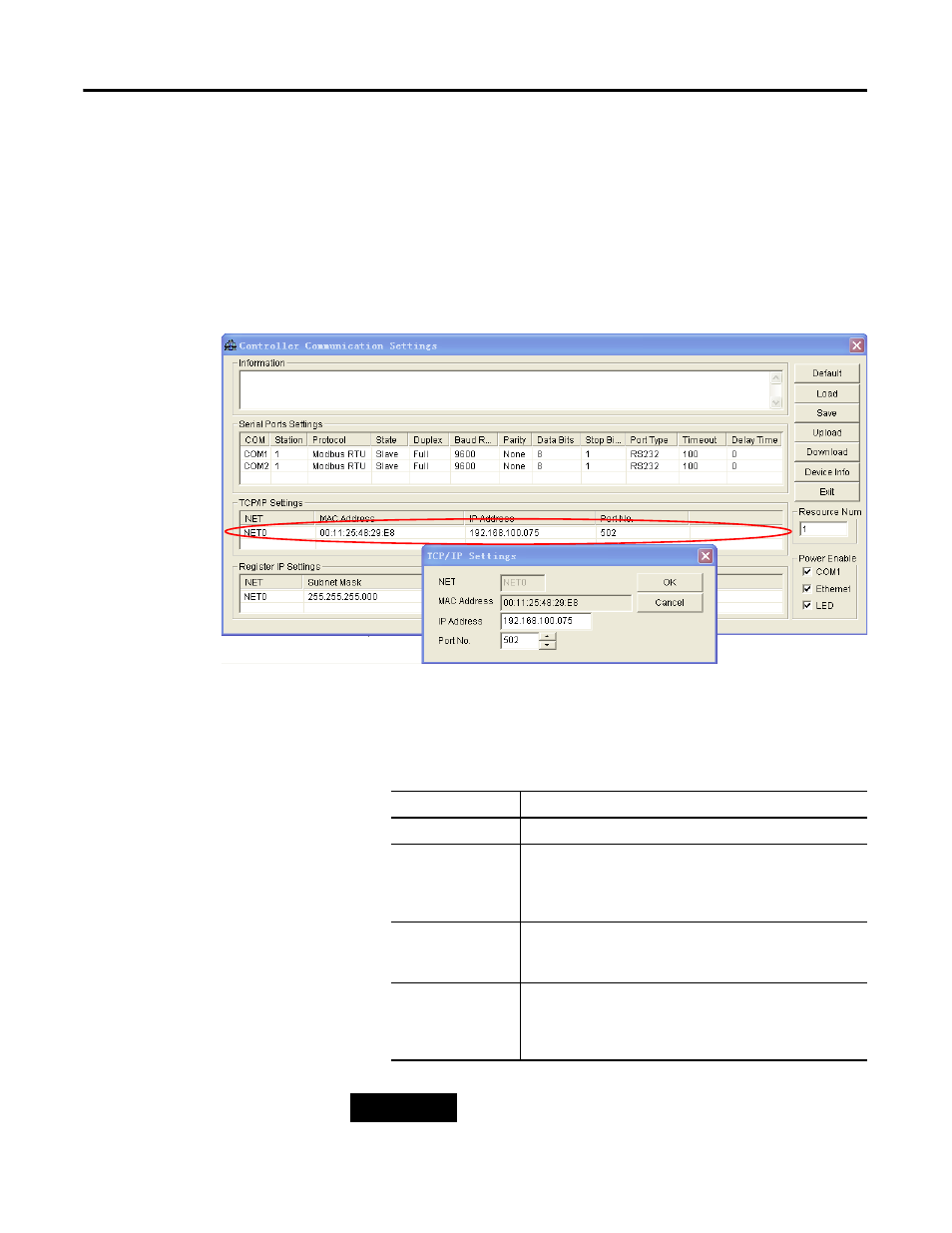

The TCP/IP Settings dialog box appears.
2. Set up the parameters of the selected TCP/IP port.
This table shows the value range for each parameters.
TCP/IP port parameters
Parameter Parameter Value Range
NET (Ethernet card) NET0
MAC address xx:xx:xx:xx:xx:xx
6 integers in hexadecimal format. For example,
00:00:BC:60:61:D0. The MAC address is read-only.
IP address xxx.xxx.xxx.xxx
4 octets with each octet ranging from 0…255.
Port no. 502
The port number of DS Settings TCP/IP port is defined as
502 when the PC is connected to the DataSite controller.
TIP
If you change the IP address, the DataSite controller will
cycle power automatically.
