System modules
DFOUT_IO_DigitalFrequency (node number 22)
Inputs_DFOUT / Outputs_DFOUT
l
338
EDBCSXA064 EN 3.2
13.17
DFOUT_IO_DigitalFrequency (node number 22)
13.17.1
Inputs_DFOUT / Outputs_DFOUT
This SB converts internal speed signals into frequency signals and outputs them to X8
(configuration via C0491).
ƒ
Transmission is effected with high precision (without offset and amplification
faults) including remainder considered.
ƒ
The type of output signals can be set via C0540.
ƒ
A configuration of the master frequency output X8 as input (
C0491.
DFOUT_IO_DigitalFrequency
X8
C0540
0
1
2
CTRL
C0549
C0545
C0030
C0540
0
1
2
n
max
15000 rpm
0
0
1
1
X7
C0491
C0547
DFOUT_nOut_v
DFOUT_nIn_v
ECSXA232

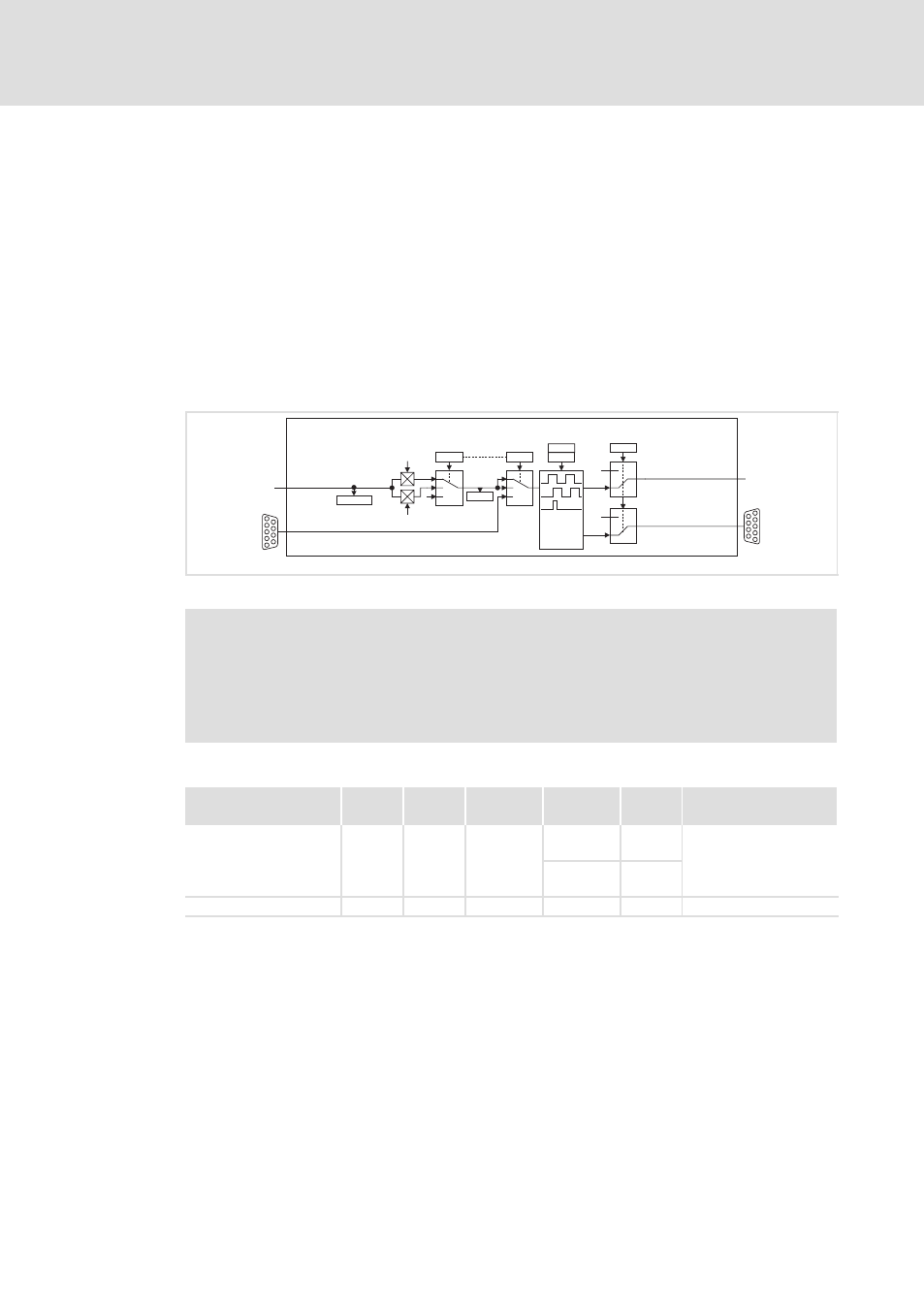

Fig. 13−25
System block "DFOUT_IO_DigitalFrequency"
)
Note!
The process image is recreated for every task the SB is used in.
ƒ
If therefore DFOUT_nIn_v and DFOUT_nOut_v are used in several tasks, an
individual process image of the SB is created for each of these tasks.
ƒ
This process is different from the previous process image principle!
System variables
Variable
Data
type
Signal
type
Address
Display
code
Display
format
Notes
DFOUT_nOut_v
Integer
Velocity
%QW22.0
C0547
dec
[%]
C0549
dec
[rpm]
DFOUT_nIn_v
Integer
Velocity
%IW22.0
˘
˘
