AIF_IO_Management (node number 161)
13.1.1
Inputs_AIF_Management
This SB serves to monitor the communication of a fieldbus module connected to the
automation interface (AIF).
ƒ
In the event of an error, AIF_bCe0CommErr_b is set to TRUE and the communication
error "CE0" (LECOM no. 61) is set. The response to this can be configured via C0126
(default setting: off).
ƒ
New AIF fielbus modules (e. g. 2133 and 2175) also use
AIF_bFieldBusStateBit0_b ... AIF_bFieldBusStateBit15_b to transfer an error number
from the fieldbus module.
ƒ
C2121 serves to display the status.
,
Please read the documentation for the connected fieldbus module.
AIF
Communication
Error
AIF
Fieldbus State
X1
Inputs_AIF_Management
AIF_bCe0CommErr_b
AIF_bFieldBusStateBit0_b
AIF_bFieldBusStateBit1_b
AIF_bFieldBusStateBit2_b
AIF_bFieldBusStateBit6_b
AIF_bFieldBusStateBit5_b
AIF_bFieldBusStateBit4_b
AIF_bFieldBusStateBit3_b
AIF_bFieldBusStateBit7_b
AIF_bFieldBusStateBit8_b
AIF_bFieldBusStateBit9_b
AIF_bFieldBusStateBit10_b
AIF_bFieldBusStateBit14_b
AIF_bFieldBusStateBit13_b
AIF_bFieldBusStateBit12_b
AIF_bFieldBusStateBit11_b
AIF_bFieldBusStateBit15_b
ECSXA200

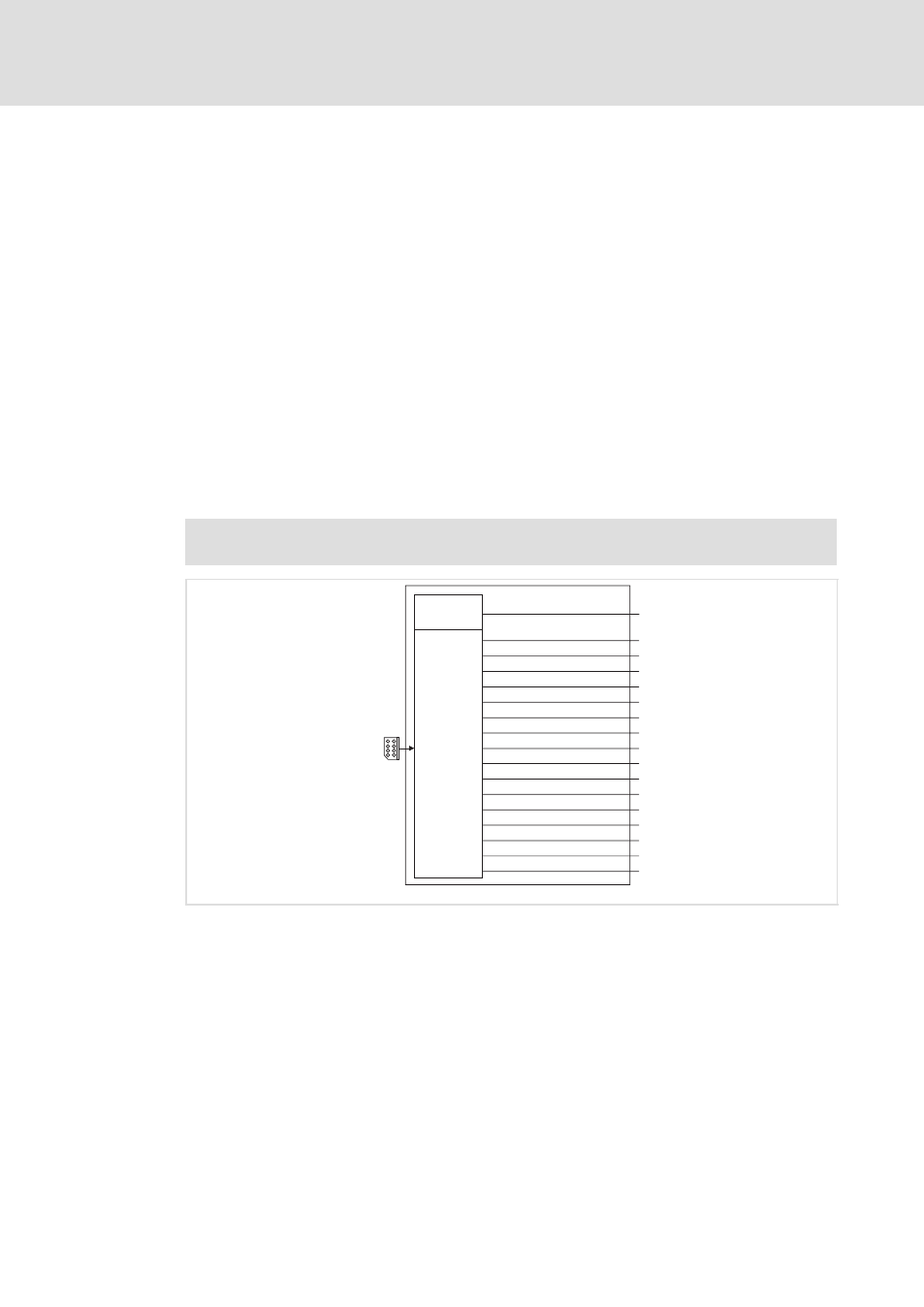

Fig. 13−1
System block "Inputs_AIF_Management"
