Monitoring and managing the switch
54
•
Incompatible zoning configurations
—Refer to the HP StorageWorks HA-Fabric
SAN high availability planning guide for information on joining zoned fabrics.
•
Build fabric protocol error
.
•
No principal switch (no switch in fabric is capable of being the
principal switch)
.
•
No response from an attached switch
.
•
Threshold alert—If a threshold alert exists for the port, an alert indicator (yellow triangle)
displays by the Threshold Alert field, and the configured name for the last alert received
displays in the field.
•
Zoning enforcement—For switches, this field displays N/A.
Displaying switch information

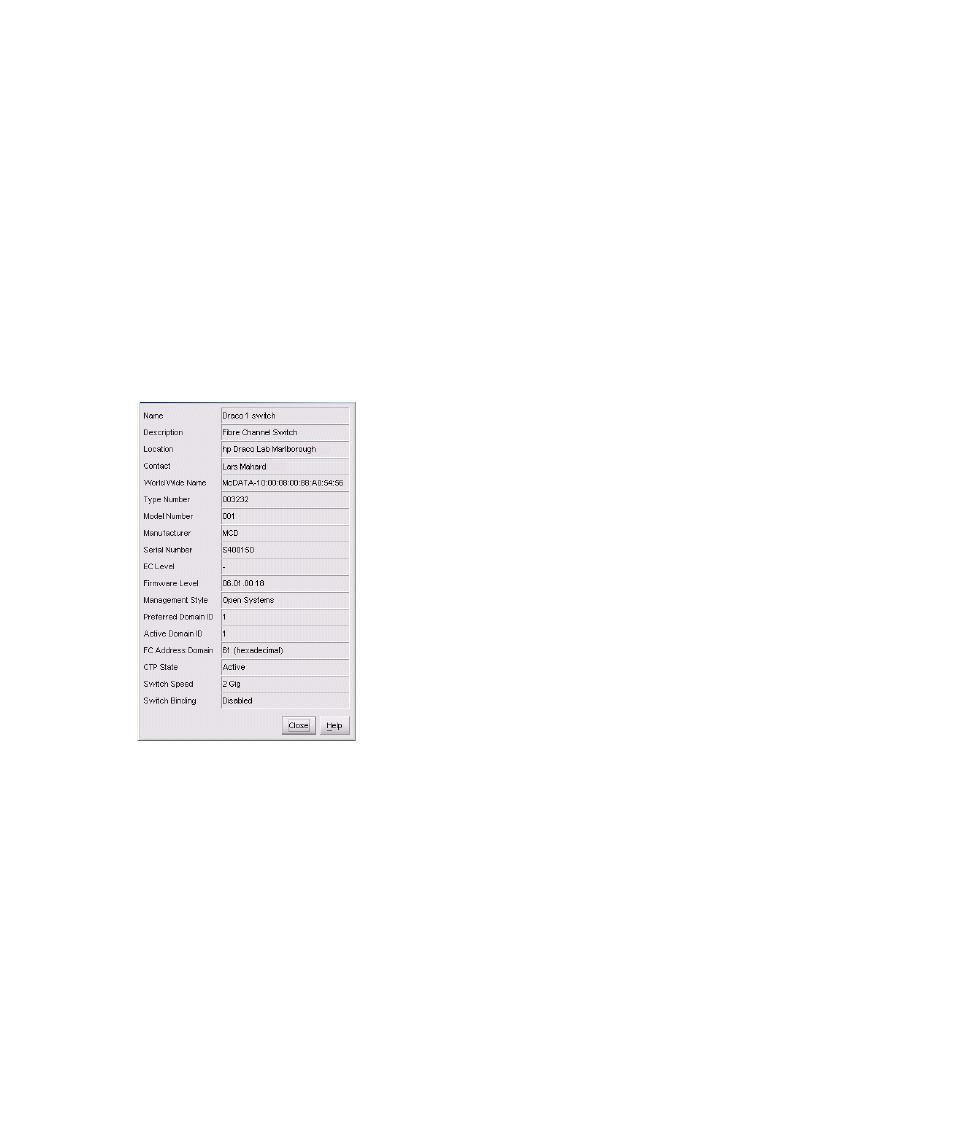

Double-click the switch illustration (near to, but not on, a hardware component) to display the
Switch Properties dialog box, as shown in
.
Figure 12
Switch Properties dialog box (Edge Switch 2/32)
The following information displays in this dialog box:
•
Name—Switch Name, description, location, and contact configured through the Configure
Identification dialog box.
•
Type number—Fibre Channel World Wide Name (WWN) identifier for the switch.
•
Type number—Edge Switch type number.
•
Model number—Product model number.
•
Manufacturer—Product manufacturer.
•
Serial number—Product serial number.
•
EC level—Engineering change (EC) level.
•
Firmware level—Firmware version number.
