Element Manager overview 32
Port List View
Click the Port List view tab. The Port List View appears. This view contains a table of data on all
Fibre Channel ports in the switch. This data includes the port number, port name, blocked
configuration state, operational state (such as online or failed), type of port, and any alerts.

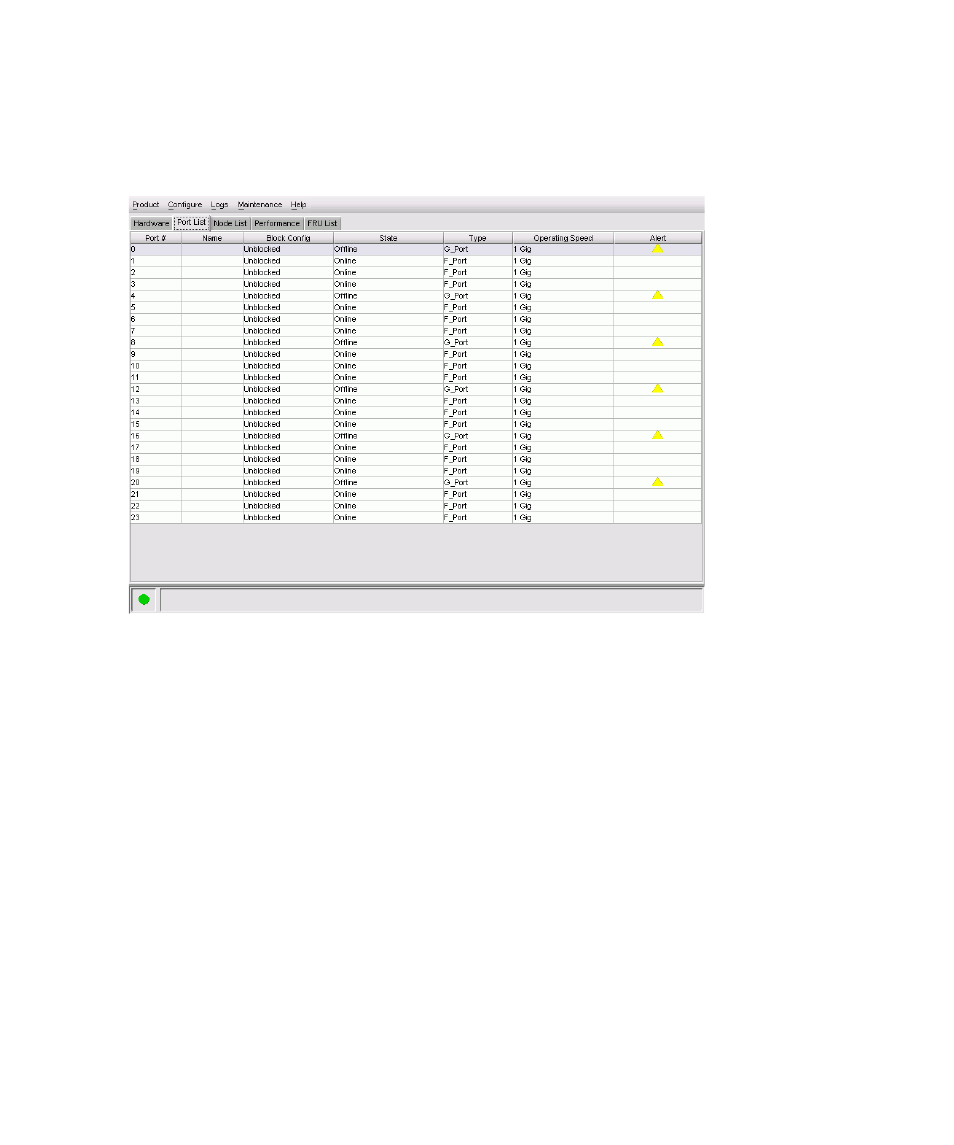

Figure 5 shows an example of the Port List View.
Figure 5 Port List View
The Port List View displays information about all ports installed in the switch. All data is dynamic
and updates automatically. Double-click any row in this view to display the Port Properties dialog
box for the port.
Right-click a port row to display the same menu options that display when you right-click a port in
the Port Card view or a port’s bar graph in the Performance view. These include:
• Port Properties
• Node Properties
• Port Technology
• Block Port
• Enable Beaconing
• Diagnostics
• Channel Wrap (FICON management style only)
• Swap Ports (FICON management style only)
• Clear Link Incident Alert(s)
• Reset Port
