Element Manager overview
30
Hardware View
The Hardware View is the default view that displays in the View panel the first time you open a
switch’s Element Manager. To return to this view from another view, click the Hardware tab. See

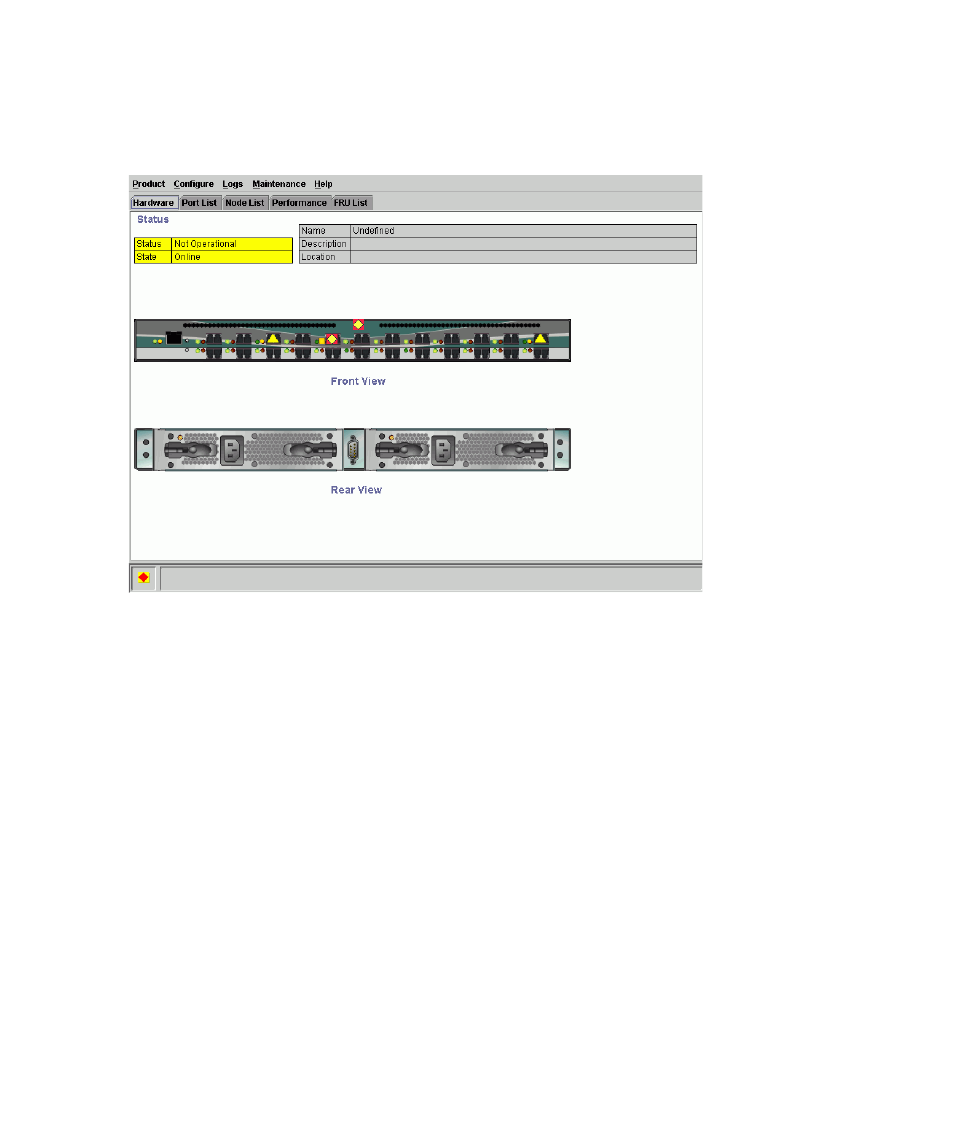

Figure 4
Hardware View
In the Hardware View, colored indicators reflect the status of actual LEDs on the switch FRUs. The
status bar displays a symbol to represent the most degraded status currently reported by any of the
switch FRUs. For example, for a port failure, indicated by a blinking red and yellow diamond on a
port, a yellow triangle displays on the status bar to indicate a degraded condition. However, if a
blinking red and yellow diamond displays over both power supplies, the status bar displays a red
and yellow diamond, which indicates a failure requiring immediate attention.
For an explanation of the different status symbols and the reasons they display in the Hardware
View or Port List View, see the table under ”
Switch menu
Double-click the switch graphic, away from a FRU, to display the Switch Properties dialog box.
Right-click a hardware graphic, away from a FRU, to display the following options:
•
Properties
•
Enable unit beaconing
•
Clear system error light
•
IPL
•
Date and time
•
Set online state
