Element Manager overview
20
Opening the Element Manager
To open the Element Manager:
•
In HAFM, double-click the appropriate edge switch product icon in the Physical/Topology
Map, as shown in
. The Element Manager window displays, showing the default
Hardware View. See
Or,
•
Right-click the appropriate edge switch product icon in the Physical/Topology Map, as shown
. A pop-up menu displays.

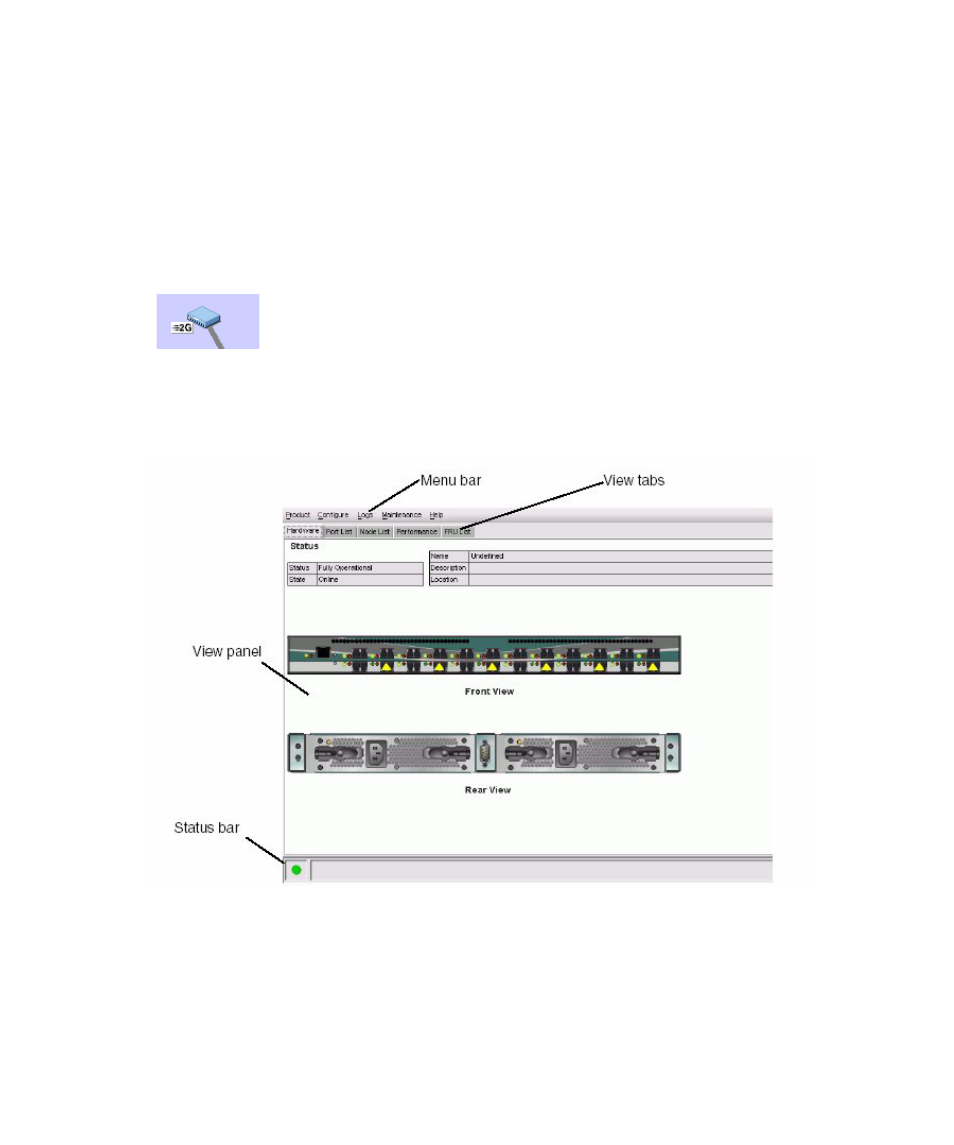

Figure 2
edge switch icon
Click Element Manager. The Element Manager window displays, showing the default
Hardware View. See
.
Figure 3
Element Manager window (Hardware View for the Edge Switch 2/24)
