GSP-930 User Manual
96

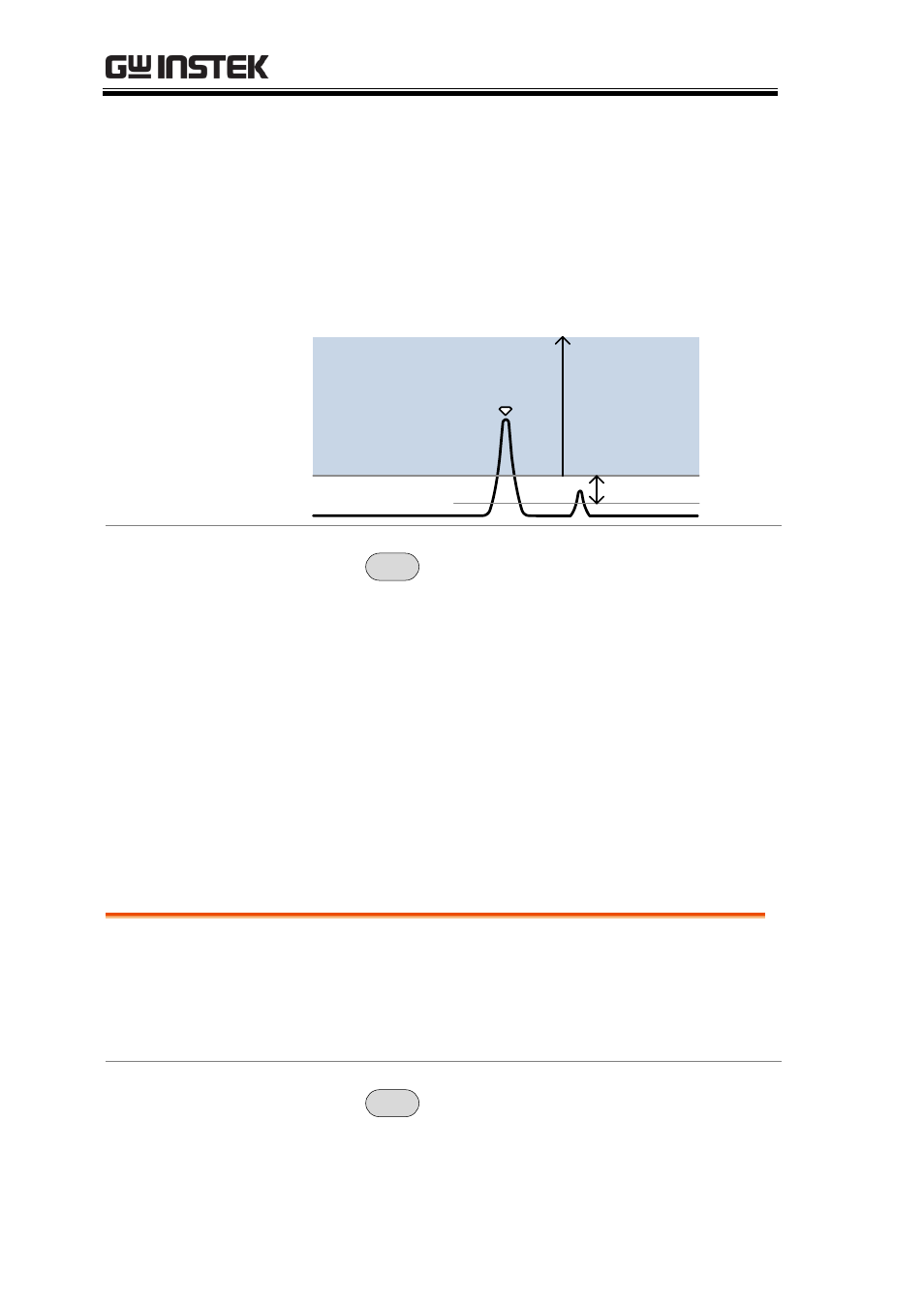

Peak Threshold: Peak threshold sets the
minimum threshold level for
the analyzer to detect peaks.
Any value above the Peak
Threshold + Peak Excursion
will be detected as a peak.
Peak Threshold
Peak Excursion
1
Peak
detection area
Operation 1. Press Peak
Search
>More 1/2[F7].
2. Press Peak Excursion[F2] to set the excursion
level.
3. Press Peak Threshold[F3] to set the peak
threshold.
Peak Excursion: 0~100dB
Peak Threshold: -120dB~+30dB
Peak Table
Description The Peak Table function will display all peaks
(up to 10) that meet the peak configuration
settings. The amplitude and frequency for each
peak is listed.
Operation 1. Press Peak
Search
>More 1/2[F7]>Peak Table[F5].
