ADVANCED OPERATION
173
Power Meter
When using the optional power meter, the GSP can measure and
log the average signal power level of a DUT from -32dBm ~
+20dBm over an operating frequency range of 1Mhz to 6.2GHz.
 Activating Power Meter Mode → from page 173
 Data Logging Power Meter Measurements → from page 175
Activating Power Meter Mode
Operation 1. Press
Mode
> Power Meter[F2] to enter the
power meter mode.

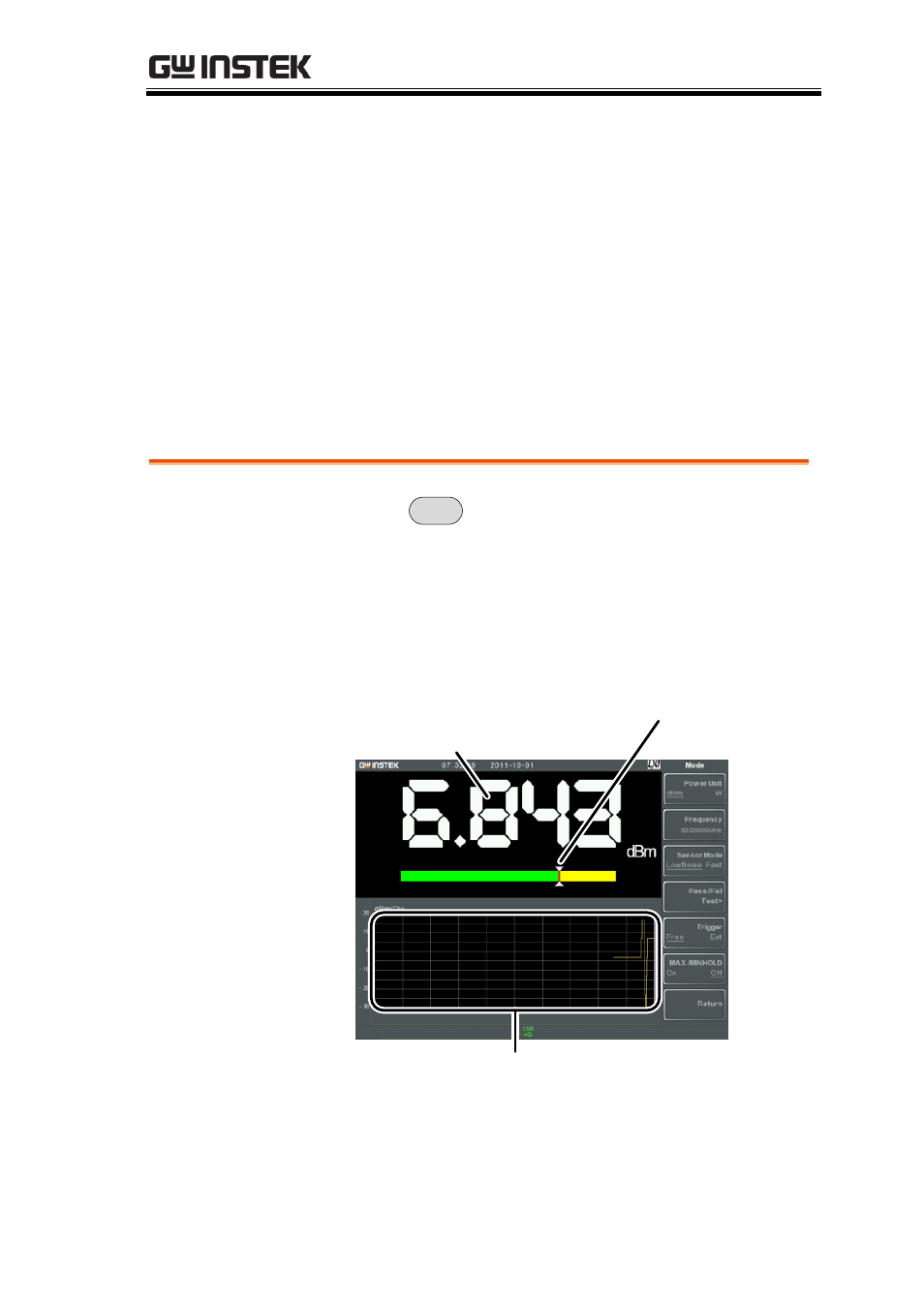

2. The display splits into two screens. The top
screen shows the power measurement in dBm
or W. The bottom screen shows a graph of the
measurements.
Data log of power measurements
Power meter measurement
Power meter bar
3. Press Power Unit[F1] and choose the unit:
