GSP-930 User Manual

174

Unit

dBm, W

4. Press Frequency[F2] choose measurement

frequency:

Frequency

1MHz~6200MHz

Resolution:

1MHz

5. Press Sensor Mode[F3] to choose measurement

speed (and thus accuracy) of the power meter:

Low Noise:

100ms/sample, typical

Fast:

30ms/sample, typical

6. To create pass fail tests, press Pass/Fail Test[F4]

and set the following parameters:

High Limit[F1]

:

-100dBm~20dBm

Low Limit[F2]

:

-100dBm~20dBm

Pass/Fail Test[F3]:

On, Off

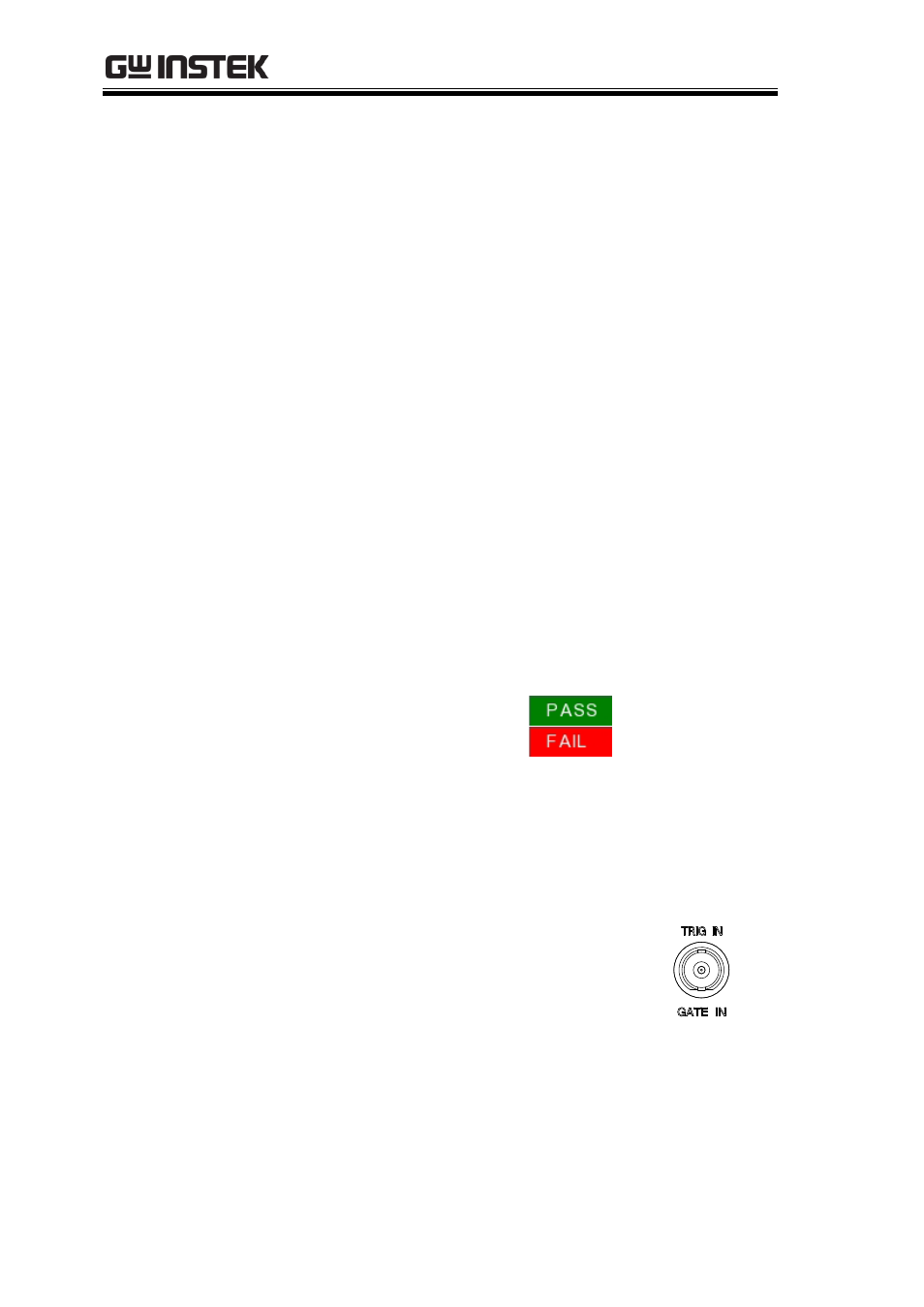

Pass Icon:

Fail Icon:

7. Press Trigger[F5] to toggle between a free run

(internal) trigger and an external trigger.

Trigger:

Free, Ext

Ext trigger input:

3.3V CMOS

8. Press MAX/MIN HOLD[F6] to toggle the

MAX/MIN hold measurements on/off in the
power meter bar.

The MIN/MAX measurements will be displayed in
the power bar meter in the center of the screen.
