BASIC OPERATION
77
Auto Detector

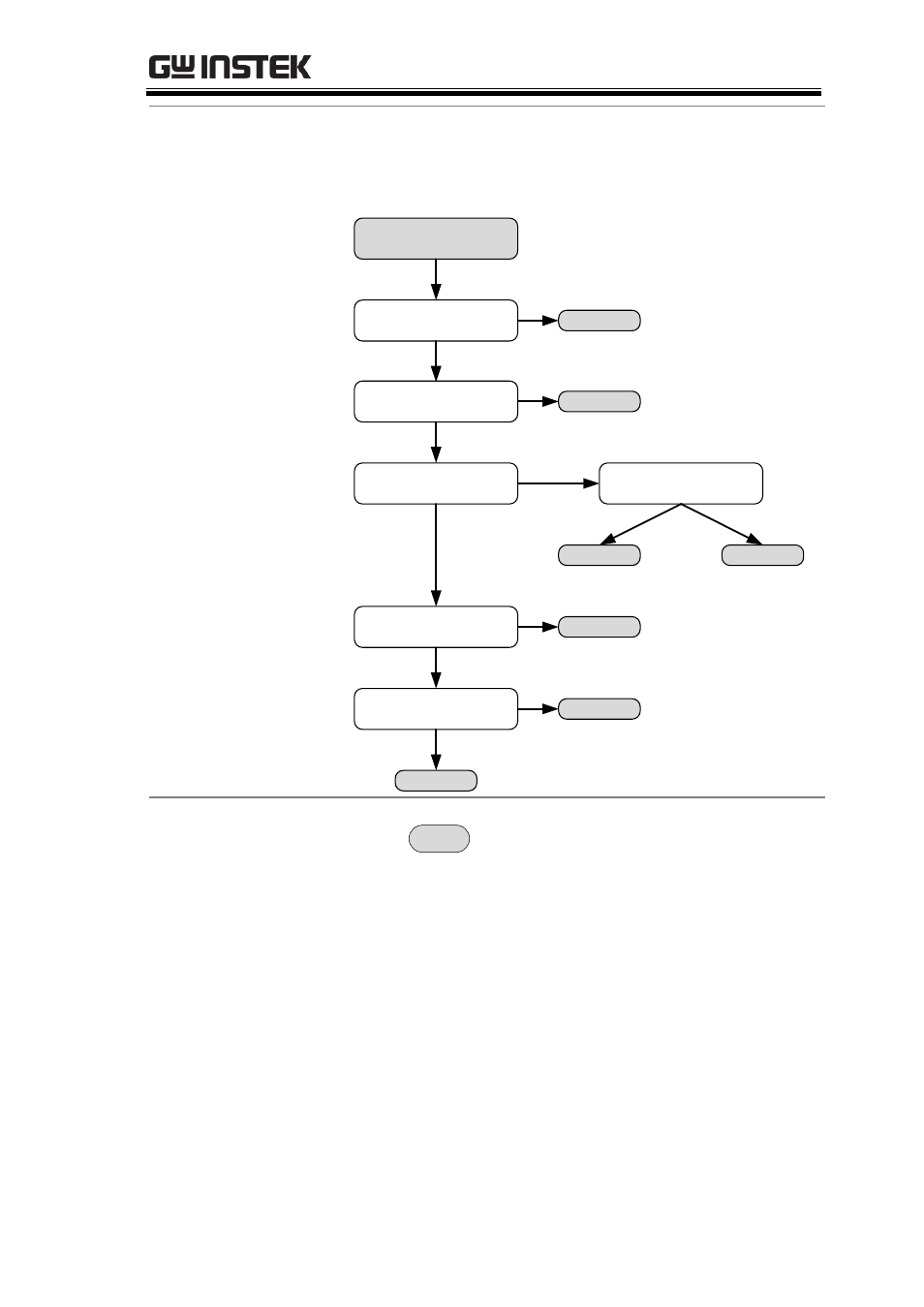

Selection Method Below is a flow chart diagram showing the
Detector selection for the Auto mode.
Is (trace) Average
on?
Are any traces set
to Max Hold?
Are any traces set
to Min Hold?
Is Average Type
set to Power?
Average Sample
Peak+
Peak-
Normal
Y
N
Y
N
Y
N
N Y
Is Phase Jitter
measurement on?
Sample
Y
N
Are any windows
set to Topographic?
Peak+
Y
N
Detector
(Auto mode)
Operation 1. Press
Trace
> More[F7]>Detection[F2].
2. Select the trace detection mode for the selected
trace:
Auto[F1]
Normal[F2]
Peak+[F3]
Peak-[F4]
Sample[F5]
Average[F6]
