GSP-930 User Manual

102

Topographic

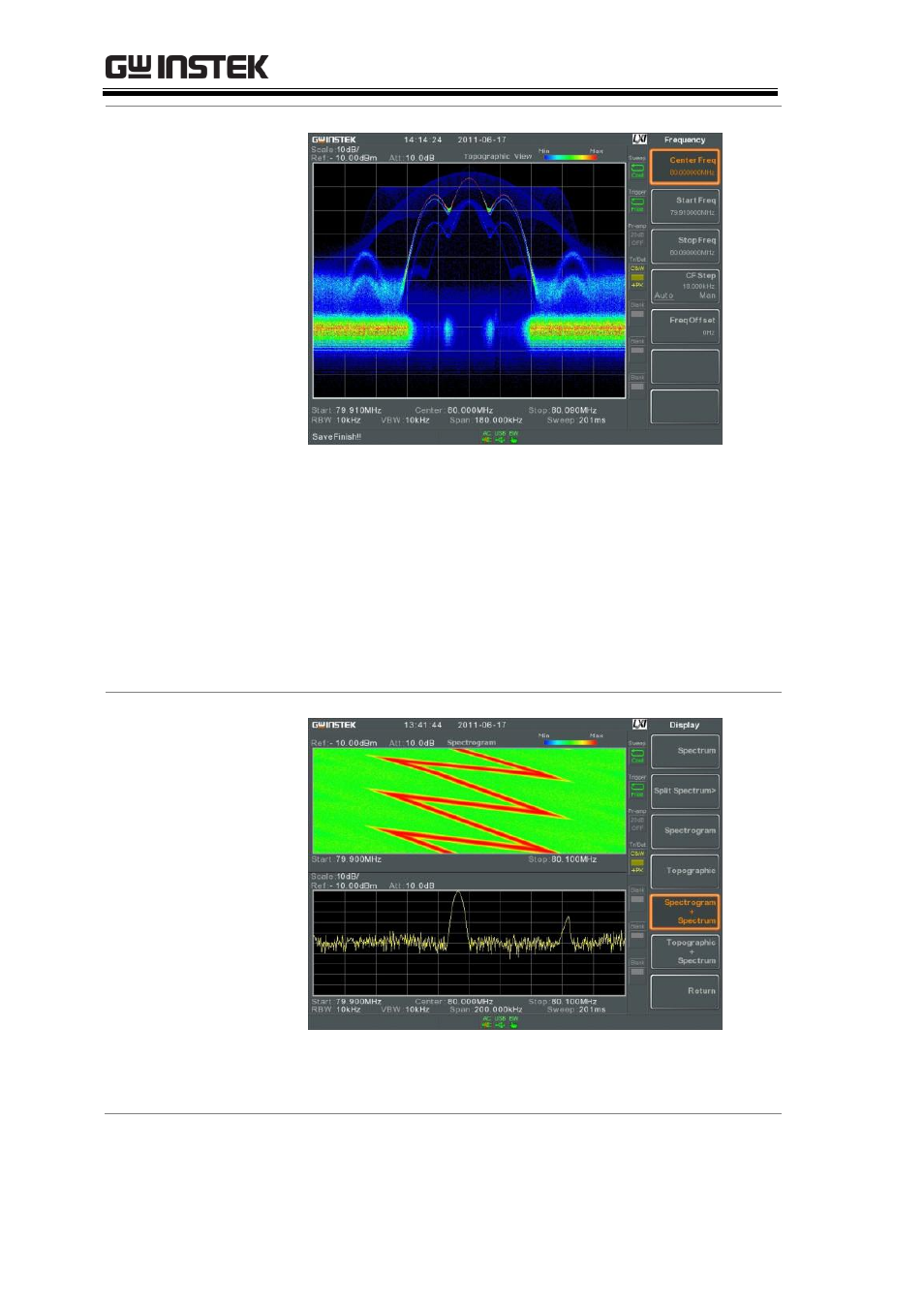

The topographic view shows the frequency of
events. The topographic view is useful for
observing smaller signals that have been
overpowered by stronger signals or to easily
observe intermittent events. Color is used to
represent the frequency of an event. Red
represents a high frequency of occurrence,
while blue represents events that occur rarely.

Spectrogram
+Spectrum

Displays both spectrographic and spectrum
views of the signal.
