GSP-930 User Manual

90

Frequency Counter

Description

The frequency counter function is used to make
accurate frequency measurements.

Operation

1. Press

Marker

> Select Marker[F1] and select a

marker number.

2. Press [F2] to turn the selected marker on.

3. Press Normal[F3] and then position the marker

to the desired location.

4. Press Function[F5]>Frequency Counter[F1] and

turn the counter function on.

5. Press Resolution[F2] and set the resolution:

Auto:

Automatically chooses
the best resolution.

Man:

Allows the resolution to
be manually set.

Man Range:

1Hz, 10Hz, 100Hz, 1kHz

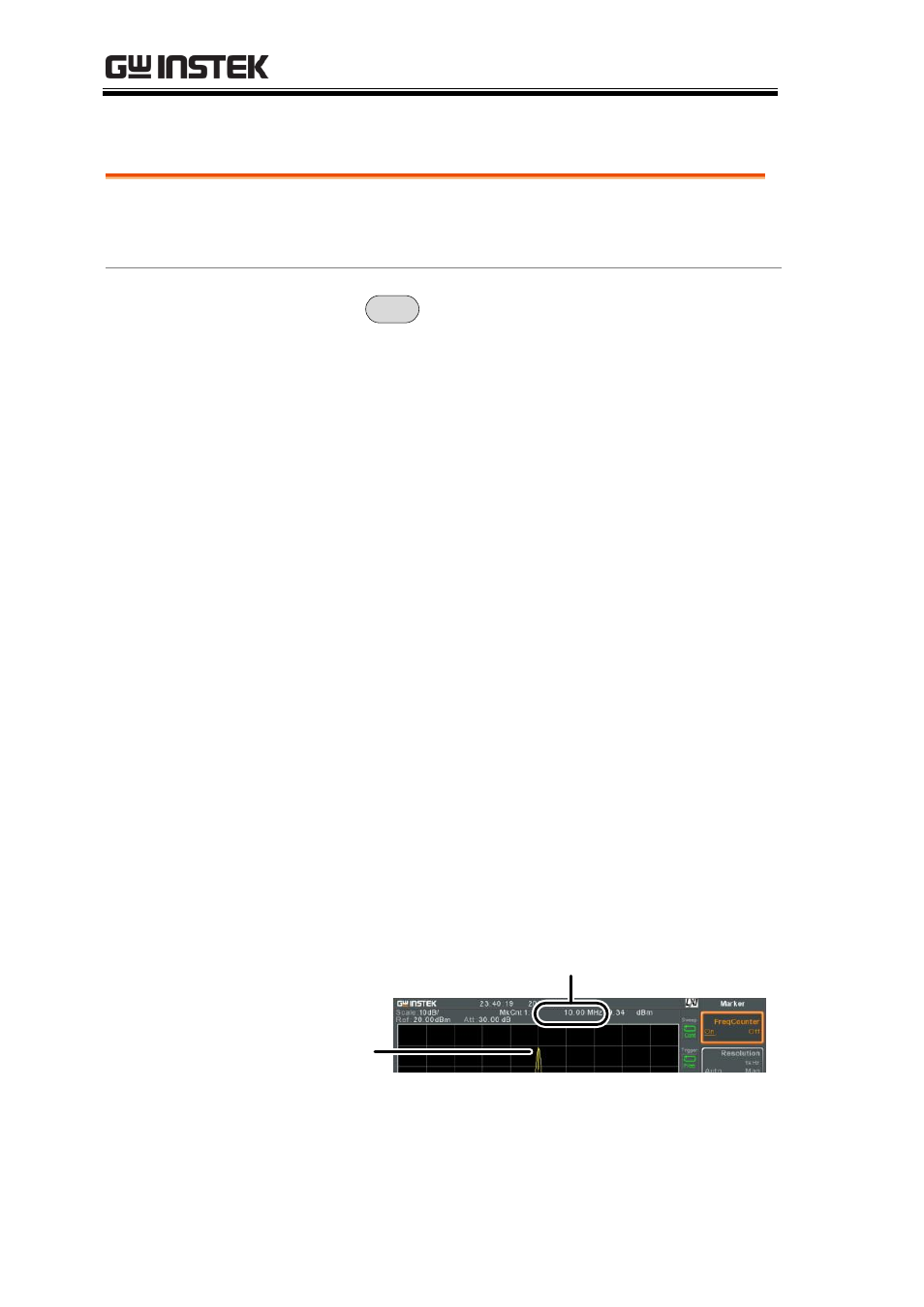

6. The display will show the frequency

measurement at the top of the screen at the
selected resolution.

Frequency

Marker
