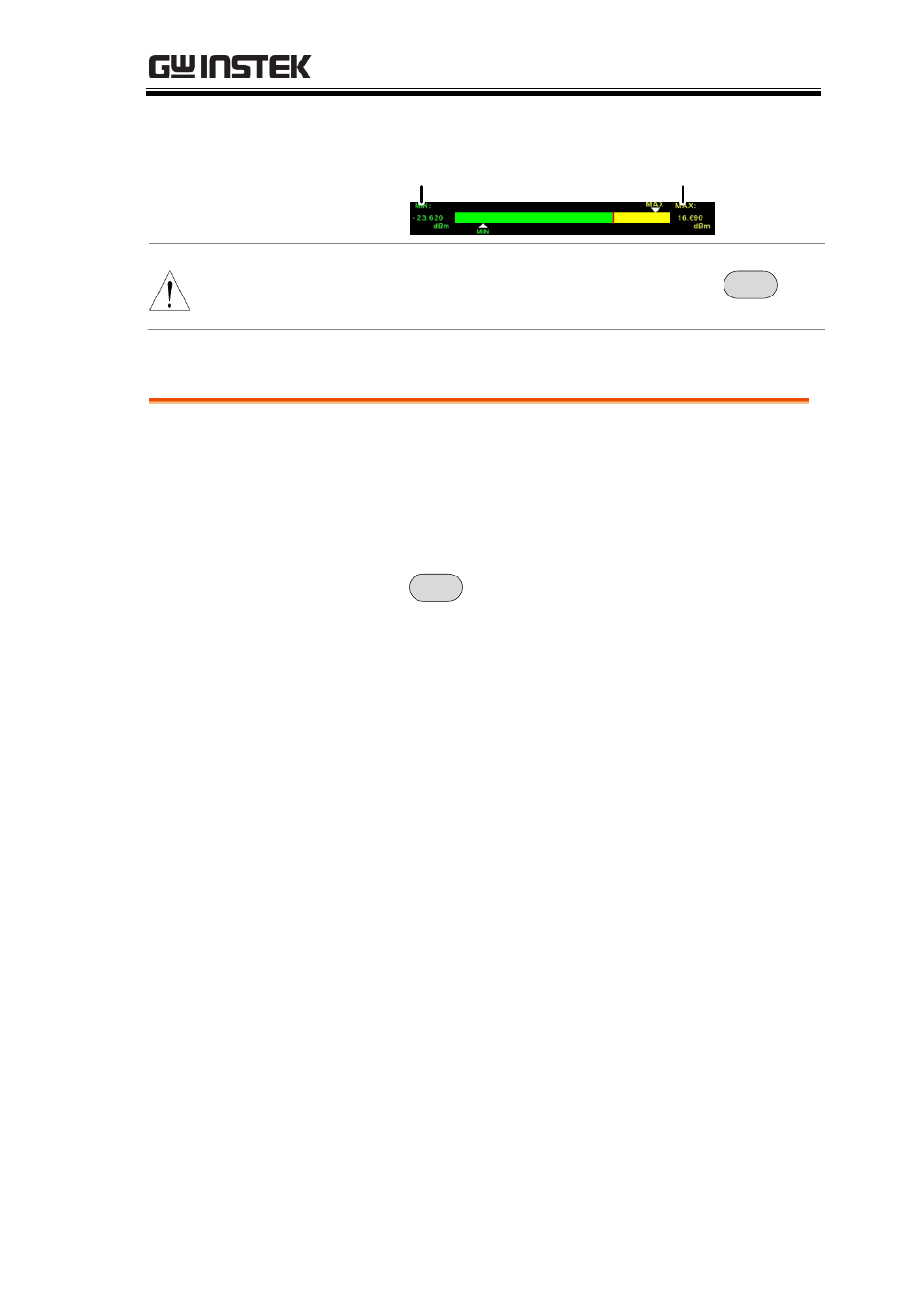

ADVANCED OPERATION

175

MIN HOLD

measurement

MIN HOLD

measurement

Note

The return to the Spectrum Mode, press

Mode

>

Spectrum[F1]

.

Data Logging Power Meter Measurements

Description

When in Power Meter mode, the spectrum
analyzer is able to log the power meter
measurements over a user-defined time period
at user-defined intervals.

Operation

1. Press

Save

to enter the save menu.

2. Press Type[F2] and select Power Meter[F7].

3. Press Data Source[F3] and select Power State[F1].

4. Press PMET Record Option[F4] and set the

recording options:

Record Stop[F1]:

Sets the recording time for
automatic data logging:
00 :00 :00 (continuous) or
00 :00 :01 ~ 23 : 59: 59

Record Step[F2]:

1sec ~ 999sec

5. Press Save To[F1] and select a destination

source:

Register 1~6:

Internal memory registers,
these internal registers are not
part of local memory

Local:

Internal memory
