REMOTE CONTROL
195

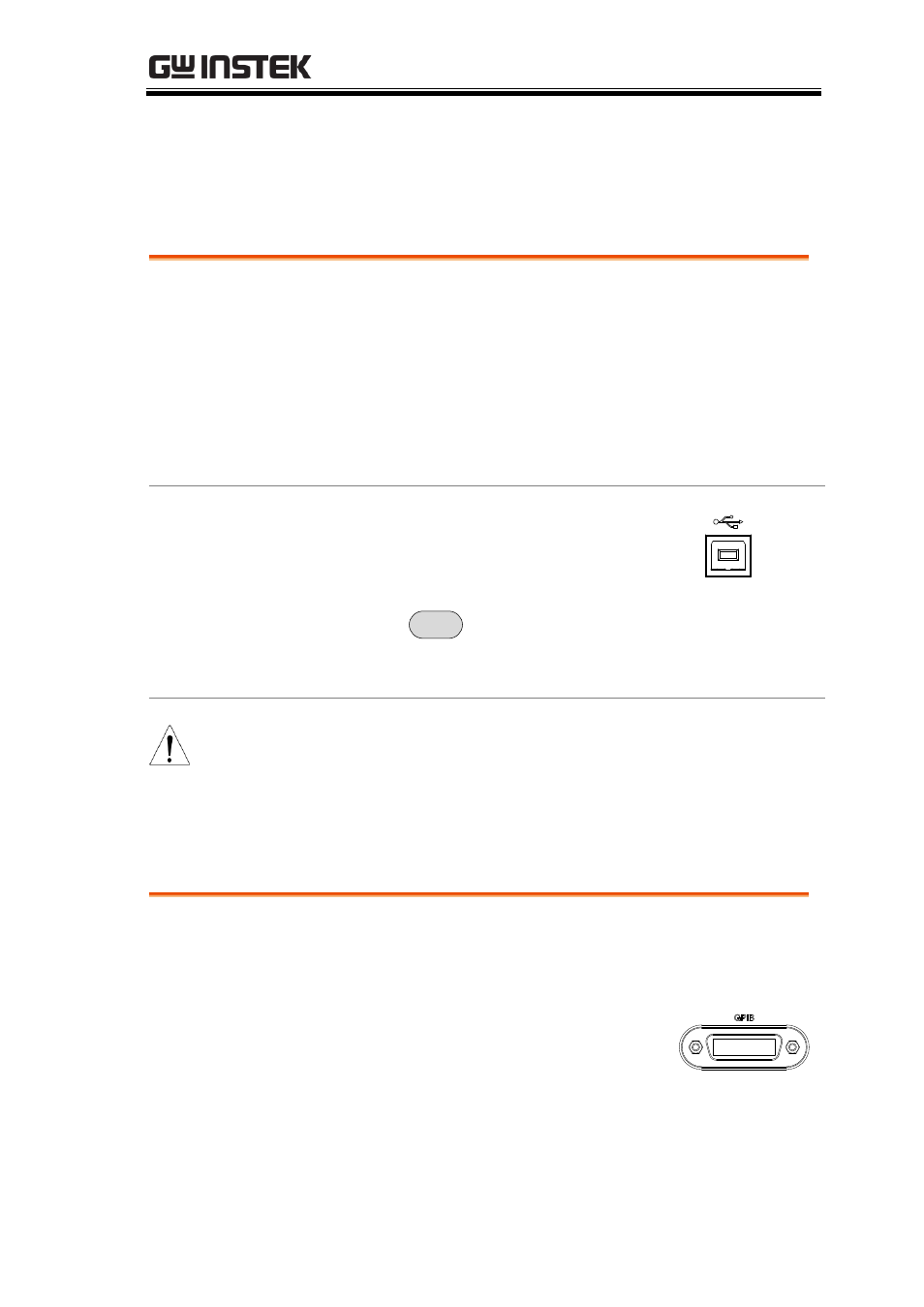

Interface Configuration
Configure to USB Remote Interface
USB
configuration
PC side
connector
Type A, host
GSP side
connector
Rear panel Type B, slave
Speed
1.1/2.0 (full speed/high speed)
USB Class
USB TMC (USB T&M class)
Panel operation 1. Connect the USB cable to the rear
panel USB B port.
2. Press
System
>More 1/2[F7]>RmtInterface
Config[F2]>USB Mode and toggle the USB mode
to Device.
Note
It may take a few moments to switch USB modes.
Configure GPIB Interface
To use GPIB, the optional GPIB port must be installed.
Configure GPIB 1. Ensure the spectrum anlayzer is off before
proceeding.
2. Connect a GPIB cable from a
GPIB controller to the GPIB port
on the spectrum analyzer.
3. Turn the spectrum analyzer on.
