BASIC OPERATION

103

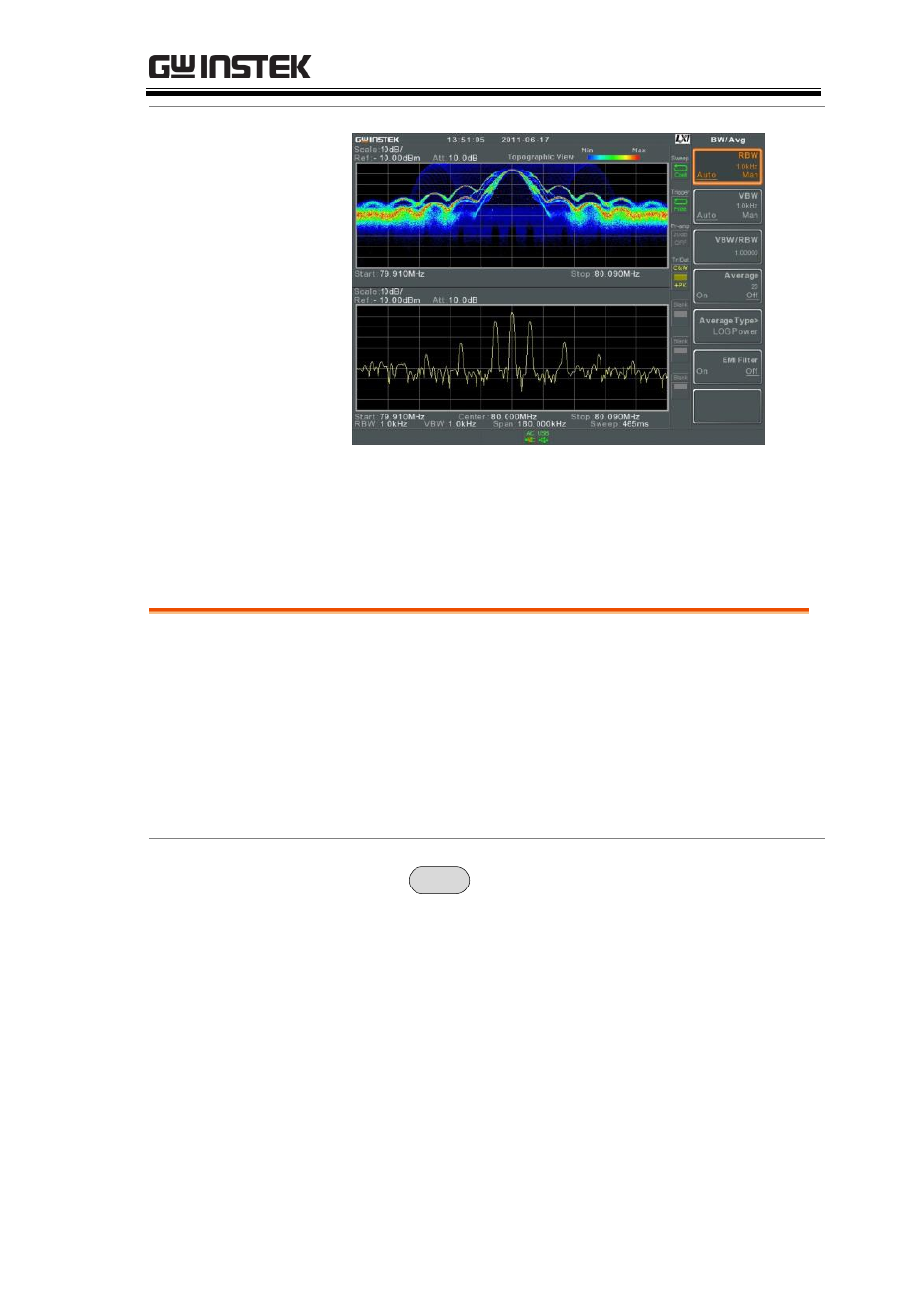

Topographic
+Spectrum

Displays both topographic and spectrum views
of the signal.

Split Spectrum View

Description

The split spectrum view is able to view two
different sweep ranges on the display at the
same time using a split screen view. The top
and bottom view can have independent sweep
ranges, amplitudes, spans and other settings.
However only one split screen (top or bottom)
can be swept each time.

Operation

1. Press

Display

>Window Setup[F1]>Split

Spectrum[F2]>Active Win[F1] to activate the
upper split screen.

2. Pressing Active Win.[F1] will toggle the sweep

between the upper and lower screen.

3. Press Alternate Sweep[F2] for the analyzer to

alternate the sweep between the upper and
lower screen at the end of each sweep.
