A limit line can be created any number of times.

5. Press Return[F7]>Save Save Limit Line[F5] to

save the currently selected limit line.

Creating a Limit (from marker data)

Description

Marker data can be used to create limit lines.
Please see the marker chapter on page 83 for
details on markers. A maximum of 10 points
can be created.

Operation

1. Press

Limit

Line

> Edit Limit Lines[F1]>Limit Line

[F1] and choose a limit line.

Limit line:

1~5

2. Press Mkr Data to Limit Line[F4].

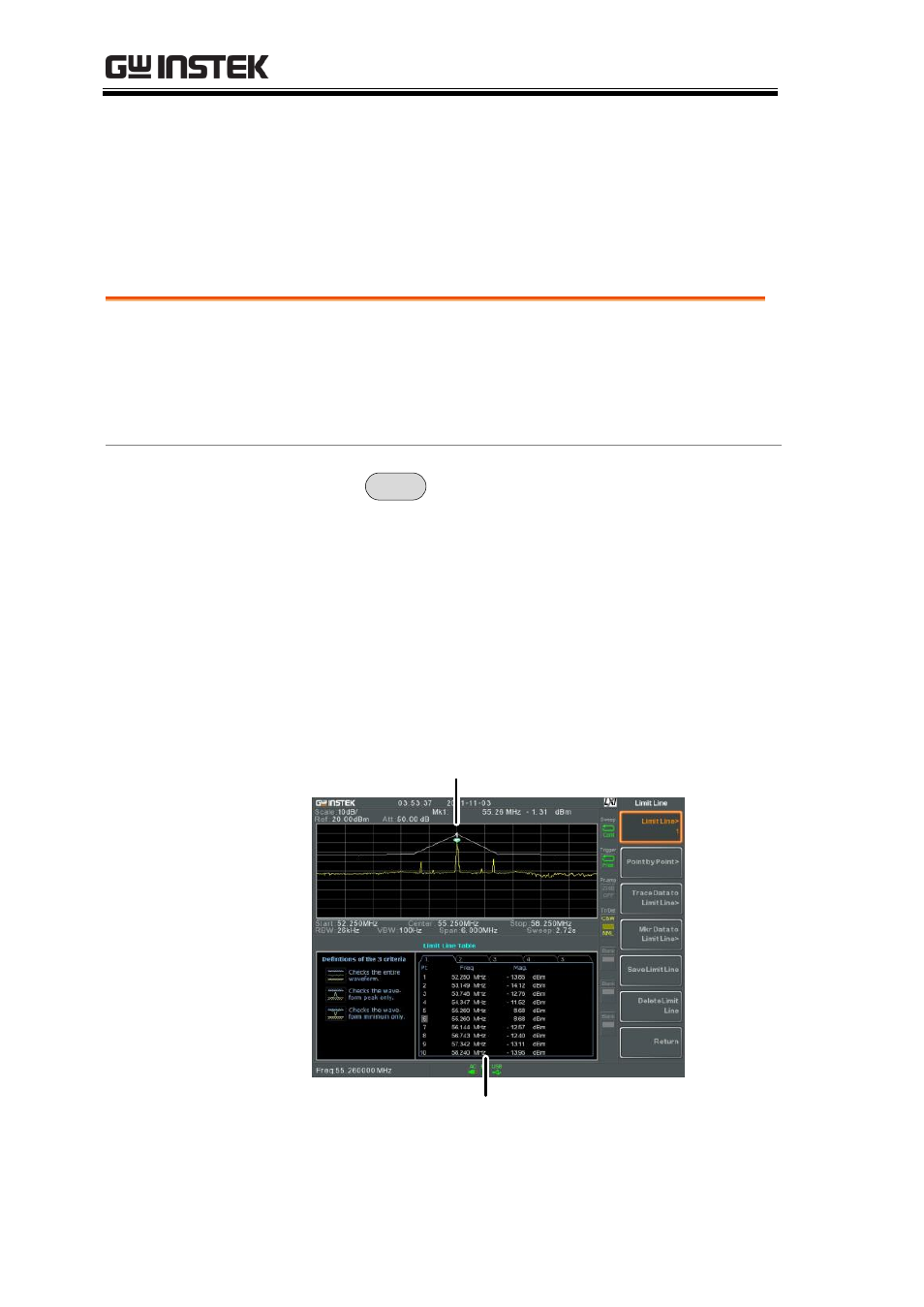

The GSP-930 is split into two screens. The top
screen shows the trace and limit lines and the
bottom screen shows the limit line table.

Spectrum display

Limit Line Table

3. Press Point Num[F1] and choose a point number
