GSP-930 User Manual

130

Measurement
items

Carrier Power:

dBm

Jitter in phase:

rad

Jitter in time:

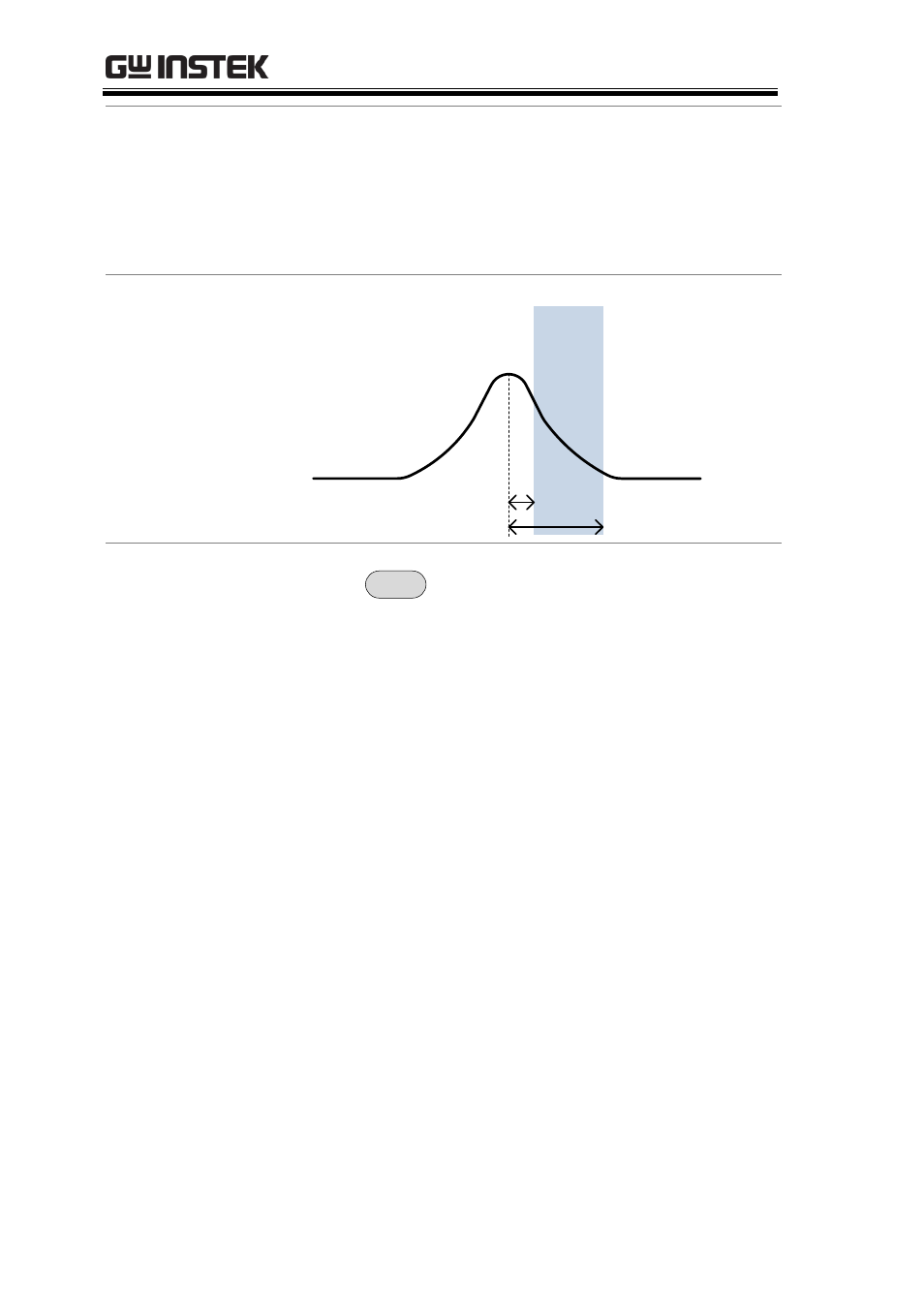

Example

Stop Offset

Start Offset

Operation:
Setting up the
main channel

1. Press

Meas

> Phase Jitter[F4]>Phase Jitter[F1]

and turn Phase Jitter on.



Any other measurement mode will automatically be
disabled.

2. The display splits into two screens. The top

shows the trace with the start and stop offsets.
The bottom screen shows the phase jitter
measurements.
