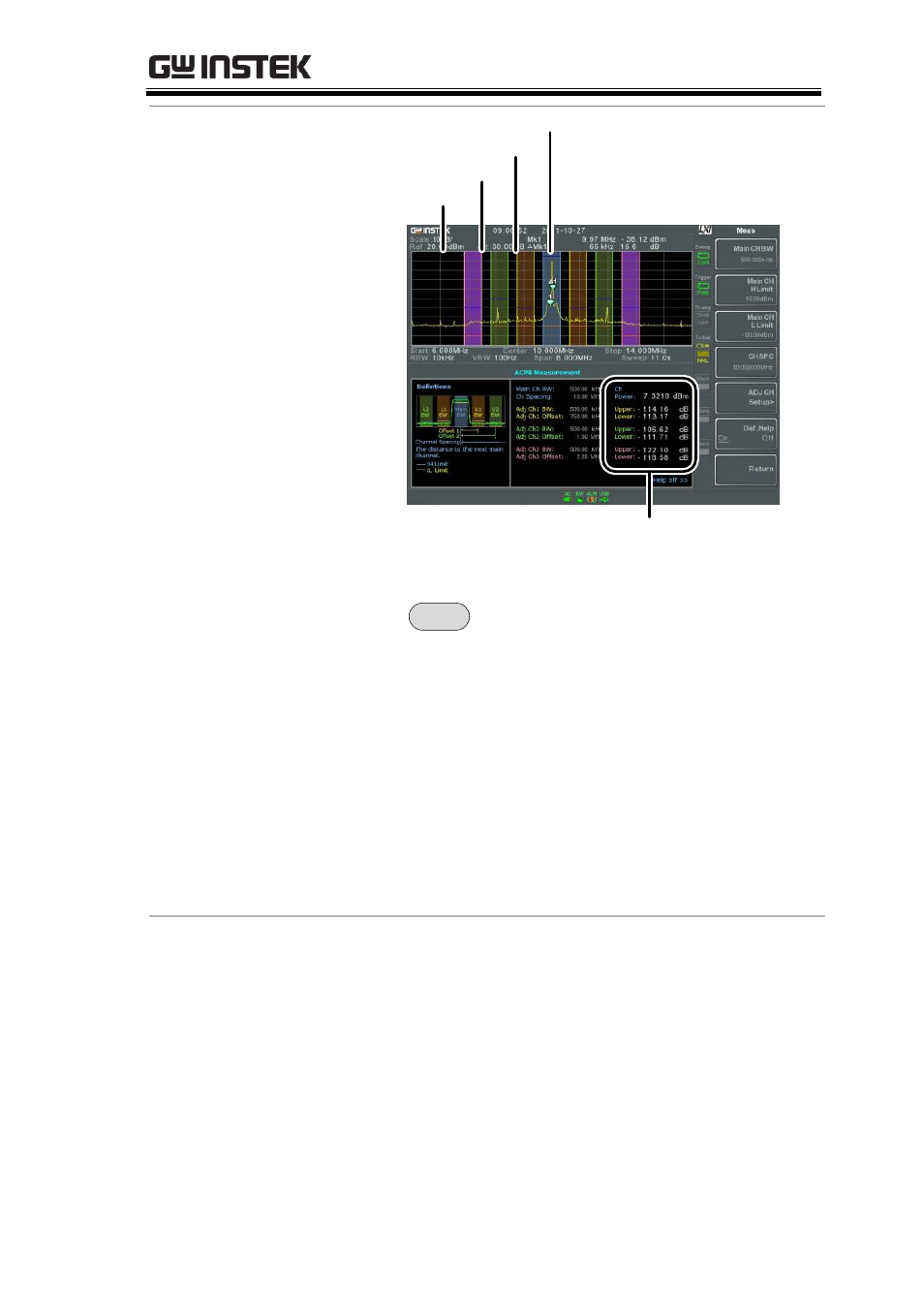

ADVANCED OPERATION

115

ADJCH2

Channel power

results

ADJCH3

ADJCH1

Main CH

3. Press

Meas

> Channel Analysis[F1]>ACPR

Setup[F1]> and set the following:

Main CHBW[F1]

Set the bandwidth of the
main channel.

Main CH H Limit[F2]

Set the low limit for the
main channel.

Main CH Limit[F3]

Set the high limit for the
main channel

CH SPC[F4]

Specify the channel
spacing

Operation:
Setting up the
adjacent
channel(s)

1. Press ADJCH Setup[F5] to setup the adjacent

channels:

ADJCH[F1]

Choose an adjacent
channel number: 1, 2, 3

[F2]

Toggle the selected
channel on/off.

ADJCHBW[F3]

Choose the bandwidth of
the selected channel.
