Spectrum Emission Mask Overview
Description SEM measurements are used to measure the
out-of-channel emissions relative to the in-
channel power. SEM measurements are usually
calculated for specified power bands at a
number of different offsets to the carrier
frequency. SEM measurements are often carried
out for a number of different wireless
standards.
For 3GPP, the GSP-930 supports BS (base
station) and UE (user equipment) testing
standards for both FDD (frequency-division
duplexing) and TDD (time-division duplexing)
modes.
The GSP-930 also supports SEM testing for
802.11b, 802.11g, 802.11n and 802.16 as well as
user defined emission mask testing

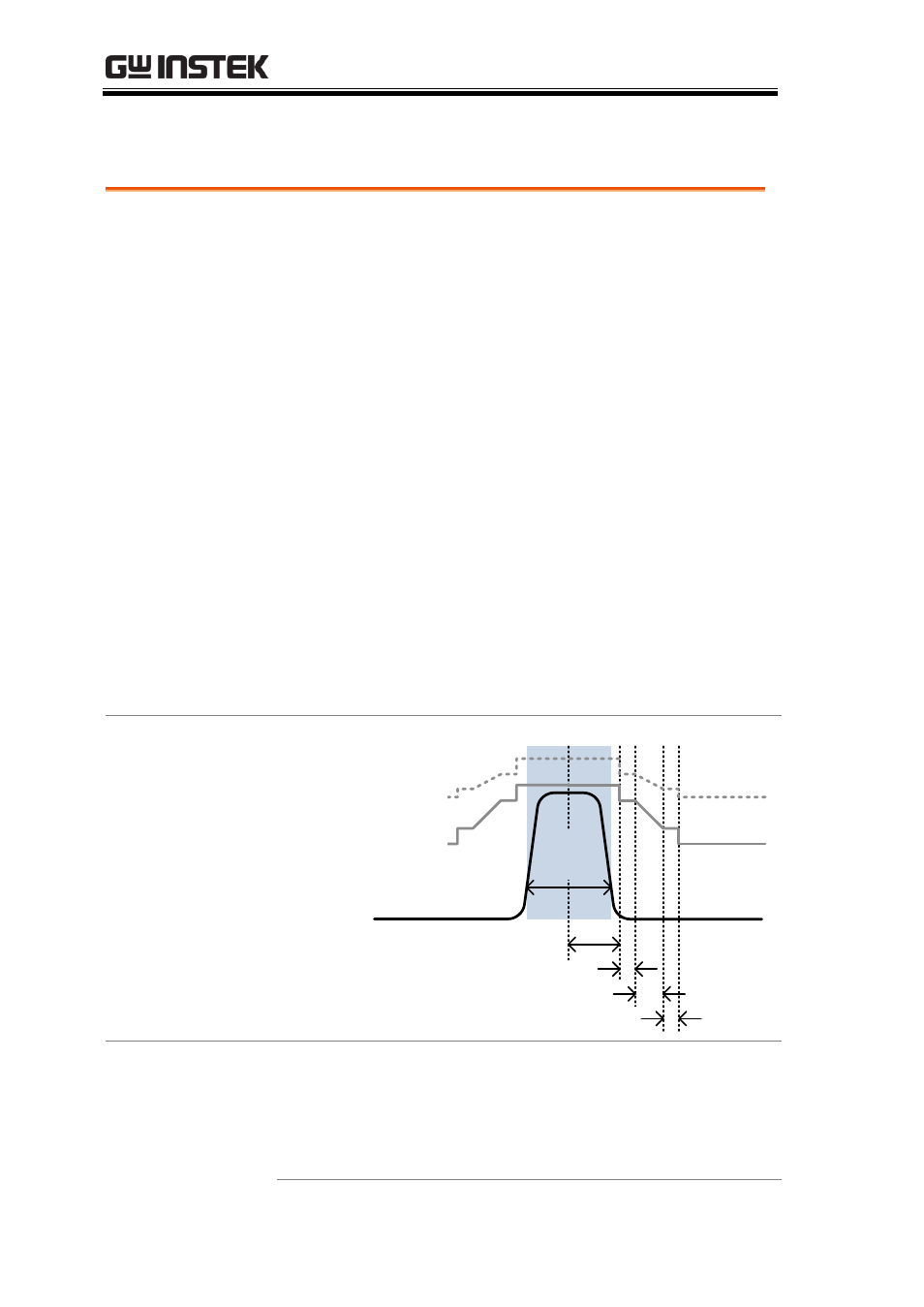

Example
Channel integrated BW
Offset 1
Offset 2
Offset 3
Chan
span
Absolute mask
Relative mask
Parameters Chan Inte BW:
Channel Integration
Bandwidth. The Chan Inte
BW is used to measure the
in-channel power.
