GSP-930 User Manual

118

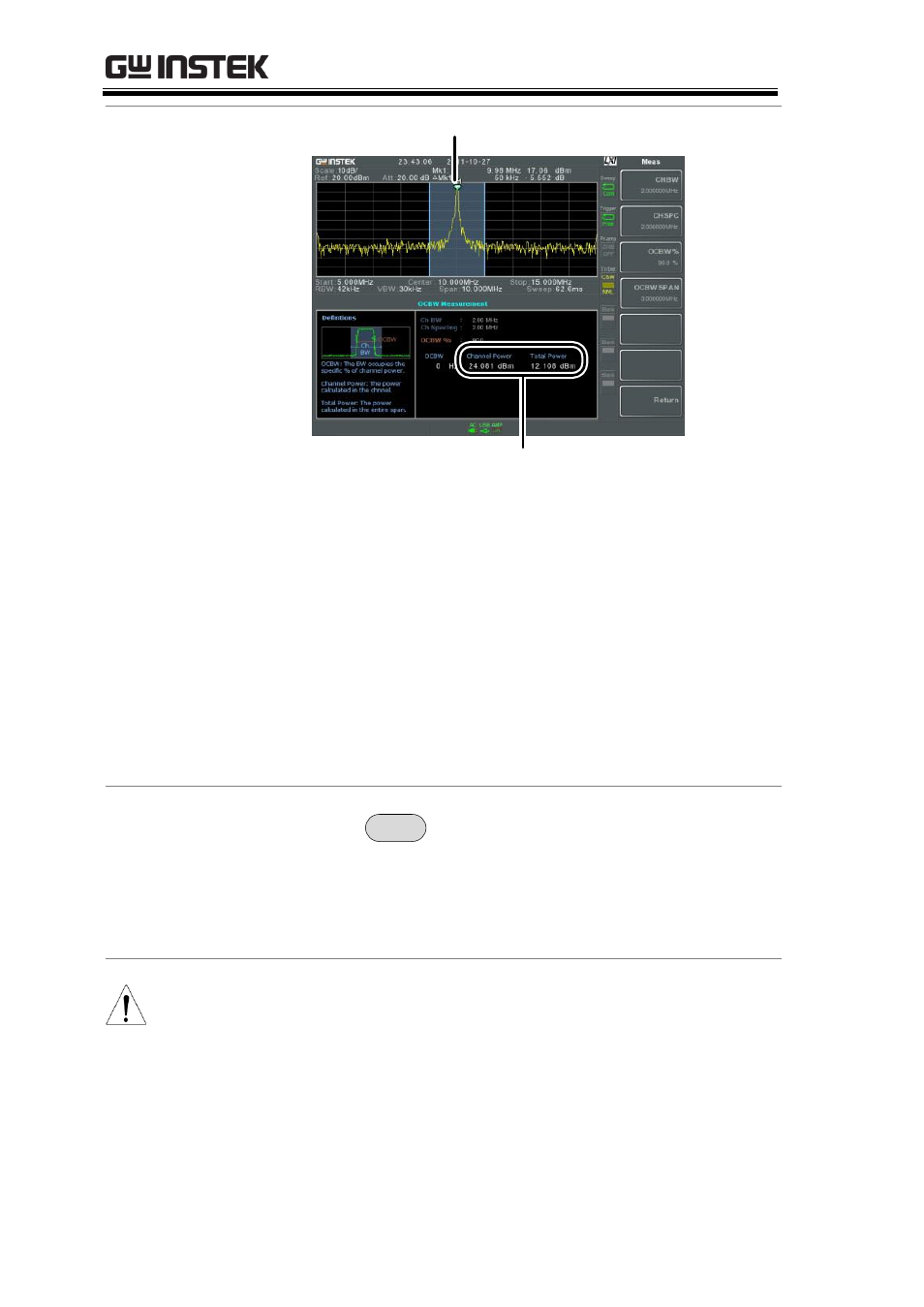

Channel power and total

power results

CH BW

3. Press OCBW Setup[F3] to enter the OCBW

setup:

CHBW[F1]

Set the channel
bandwidth.

CH SPC[F2]

Set the channel space
between main channels.

OCBW%[F3]

Set the % of the OCBW
to CHBW.

Move Channels
Up/Down

1. Press

Meas

> Channel Analysis[F1] and select:

Channel Move Up[F5]

Next main channel.

Channel Move
Down[F6]

Previous main channel.

Note

The channel space (CH SPC) parameter
determines where the next main channel is
located.

The CH SPC parameters from the ACPR and
OCBW setups are independent.
