DAR
WIN Hardware Configurator
4.22 Setting Burn-out, RJC, and (for DR Only)
Recording Colors

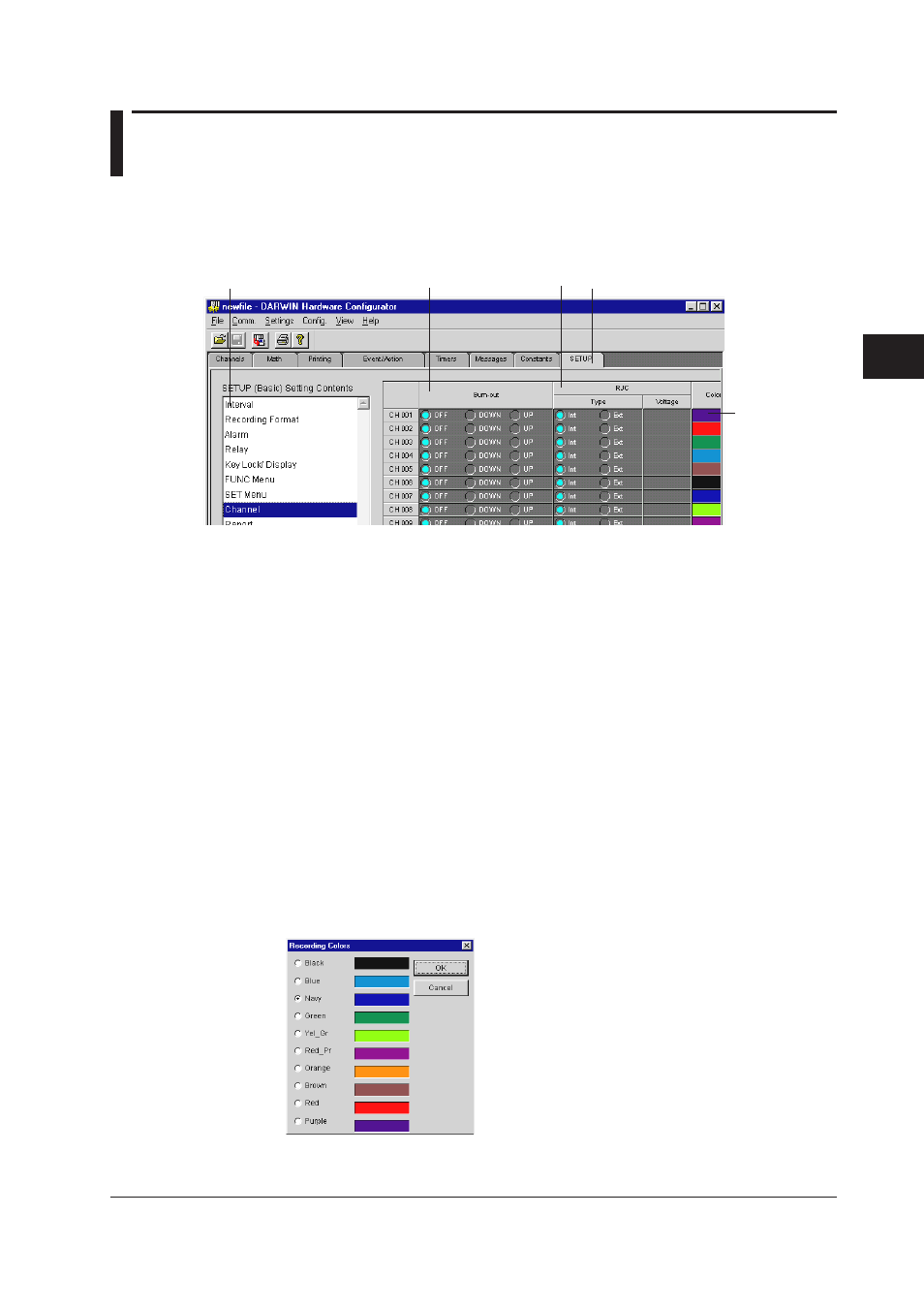

Open the Alarm Setup setting screen (see below) for Burn-out, Reference Junction
Compensation, and (for DR Only) Recording Colors as follows: Click the SETUP tab
and select Channel from the SETUP Setting contents box, or select from the menubar
Settings > SETUP (Basic) Settings > Relay > and Burn-out, RJC, or Recording Colors.
Select a SETUP topic SETUP tab Burn-out setting Select RJC
Recording color
(for DR only).
Click a color to
display the color
dialog box.
Copying Settings
Copy below settings to other channels as explained in Section 4.12.
Burn-out
Set the recording position for each channel when burn-out occurs. Click OFF, DOWN, or
UP. A blue circle marks the active setting.
• OFF : The burn-out function is not actuated.
• DOWN : The output extends to the minimum value of the span.
• UP : The output extends to the maximum value of the span.
Reference Junction Compensation (RJC)
Set either the internal or the external compensation for each channel in the RJC Type
setting space. A blue circle in the Burn-out setting area marks the active setting.
• INT : internal compensation is performed.
• EXT : external compensation is performed. For external compensation, set the voltage
to be compensated in the RJC Voltage setting area. Voltage to be externally
compensated: set in the range of –20000 to 20000 µV.
Recording Colors (for DR only)
To set the colors used for DR trend recording, click the color setting area to display the
Recording Colors setting screen. Select the desired channel color and click OK.
