9-6 IM WX102-01E
9.3 Group Settings/Displaying and Changing the
Monitor/Using Cursors
Making group settings
Group settings are made as described for Logger software, explained in Section 5.3,
“Group Settings.”
Displaying waveforms on a monitor and changing the monitor screen

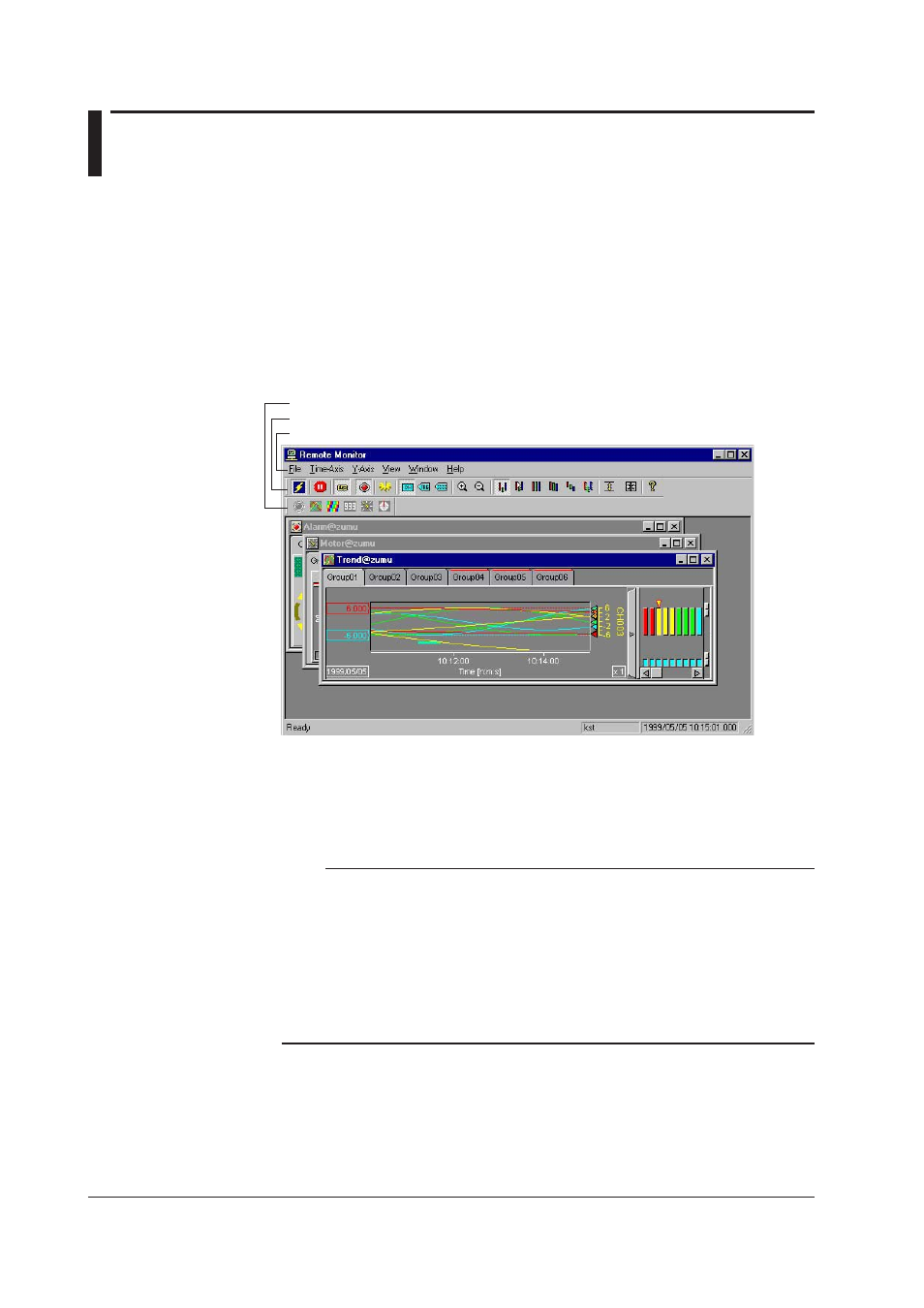

Monitor screens are displayed inside the Remote Monitor window. The content of the
displayed menubar of the Remote Monitor may differ for each monitor screen.
On the toolbar all tools are displayed, however, only the buttons related to the selected
monitor screen are active.
Monitor bar
Tool bar
Menu bar
• Displaying Monitor screens
To display Monitor screens click the button for the Alarm, Trend, Color Graph,
Numeric, or Meter Monitor on the Monitor bar, or select Window from the menubar,
and choose the desired monitor.
Note
• For one connection it is possible to open the following amount of Monitor screens:
Alarm Monitor: 1 screen
Trend Monitor: 4 or less screens
Color Graph Monitor: 4 or less screens
Numeric Monitor: 4 or less screens
Meter Monitor: 4 or less screens
Circular Monitor: 4 or less screens
Note that your PC performance may get slower if many screens are opened simultaneously.
• Select Window > Tile, or Cascade to change the Monitor screen display order.
