4.3 Setting Input Range, Span, and Linear Scaling
Setting Input Range, Span, and Linear Scaling
1 To open the Channel Settings related setting screen, click the Channels tab, or
select Settings > SET (Regular) Settings > Channel Settings from the menubar.

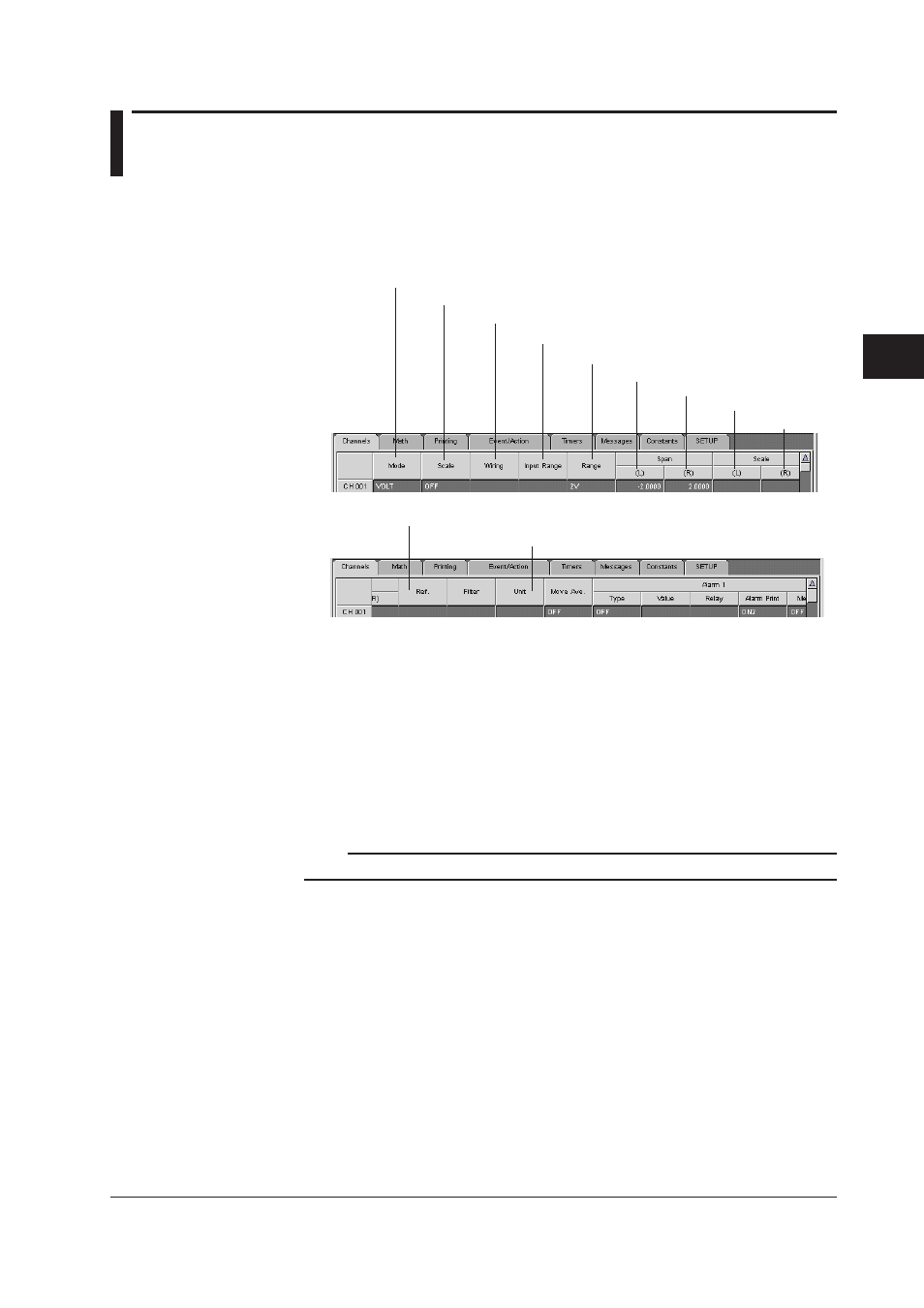

Mode (input type)
Scale ON/OFF
Power monitor wiring
Power monitor input range
Scale left
Scale right
Span left
Span right
Measurement range
Scale unit
Reference channel for Delta or RRJC mode
2 Set the input type (Mode) in the pull-down menu which appears when you
click the setting area below the Mode label. The content of the pull-down menu
depends on the kind of modules that are active.
3 Linear Scaling will be possible, unless you selected above (2) SKIP (no
measurement), DELTA (inter-channel calculations), or RJJC (Remote RJC). For
linear scaling Scale must be set ON. For the pulse module ON is fixed, and will
not be displayed.
4 For power monitor modules make Wiring and Input Range settings. Wiring, and
the Input Range is common for modules.
Note
Alarm settings will automatically be set OFF when wiring or the input range is changed.
5 Set the Range in the pull-down menu which appears when you click the setting
area below the Range label. The content of the pull-down menu depends on the
Mode selected at step (2).
6 Set the Span, left (L) and right (R).
7 Set the Reference Channel (Ref.) only if you selected the DELTA Mode (inter-
channel calculations) at step (2) above.
8
For linear scaling Scale (L/R) and Unit settings are required (Scale must be set
to ON -except for PULSE when ON is fixed). The Scale (L/R) setting range is
-30000 to 30000. For pulse inputs, however, it is 0 to 30000. Units may contain a
maximum of 6 alphanumerics (and: #, %, &, (), *, +, -, ., /).
