WIN Hardware Configurator

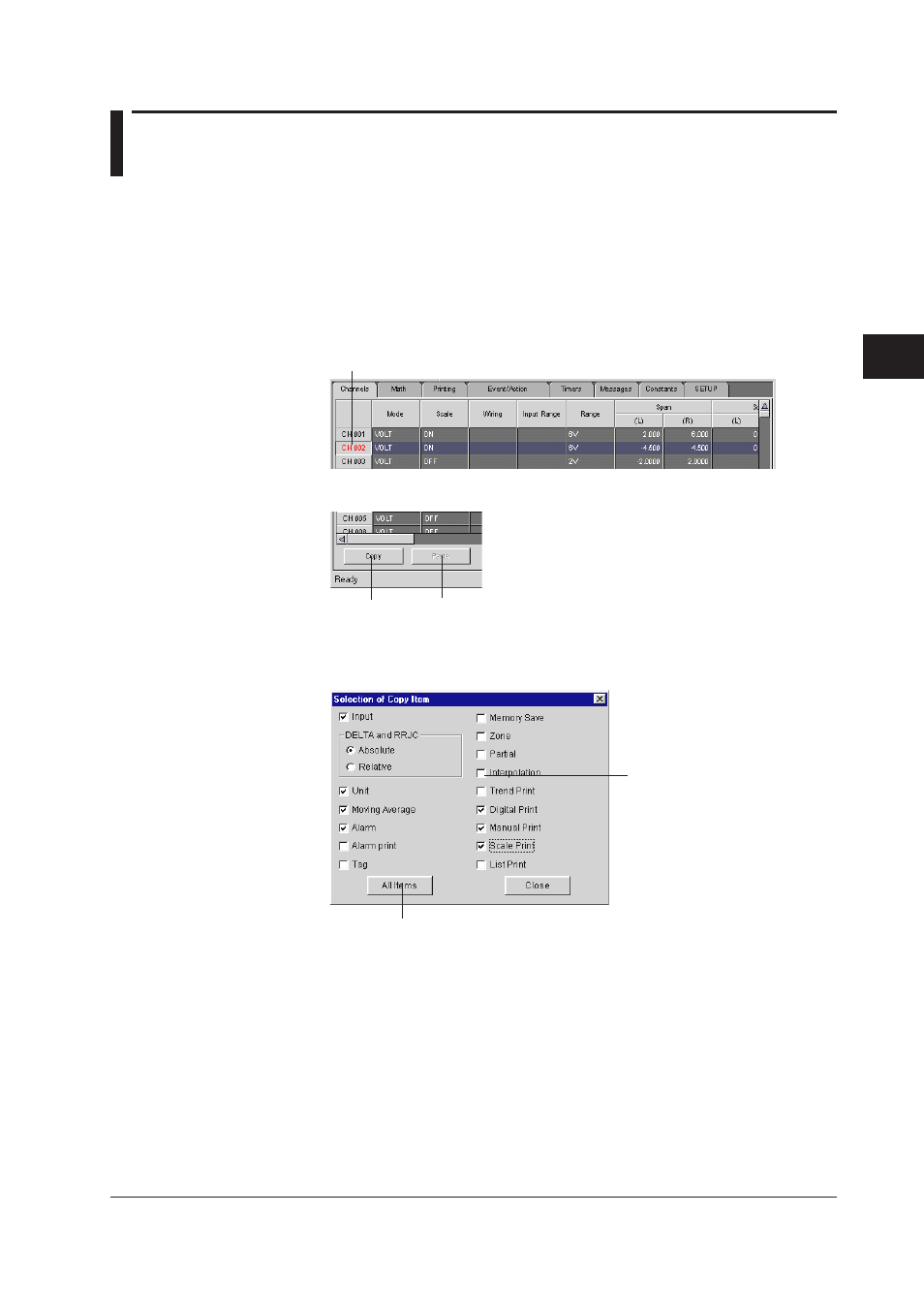

4.12 Copying Channel Settings
Copy measurement and Math settings to other channels as follows.
1 To open the Channel Settings related setting screen, click the Channels tab, or
select Settings > SET (Regular) Settings > Channel Settings from the menubar.
For the Math channel related setting screen click the Math tab, or select Settings
> SET (Regular) Settings > Math Functions from the menubar.
2 Click the channel number which settings you want to copy to other channels The
display color changes.
Click here the copy base or copy destination
3 Click the copy button in lower left corner of the setting screen.
Copy button Paste button
Below dialog box will appear to select the items you wish to copy to other
channels.
Items to copy
Click to select all items
4 Select the desired items to copy, and then close the dialog box.
5 Click the first channel you want to copy the settings to, and drag the mouse
pointer down to the last channel the settings should be copied to. The display
color of the selected channels changes.
6 Click the Paste button, to copy the selected settings to the selected channels.
