Remote Monitor Software
9.1 Operating the Remote Monitor
Starting the Remote Monitor
Follow one of the steps below:
For DAQ 32 Plus
• After selecting the desired project, click the Remote Monitor button on the Launcher,
or right click the Launcher icon on the taskbar and select Remote Monitor.
• Select Program > YOKOGAWA DAQWORX > DAQ 32 Plus > Remote Monitor from
the Windows Start menu.

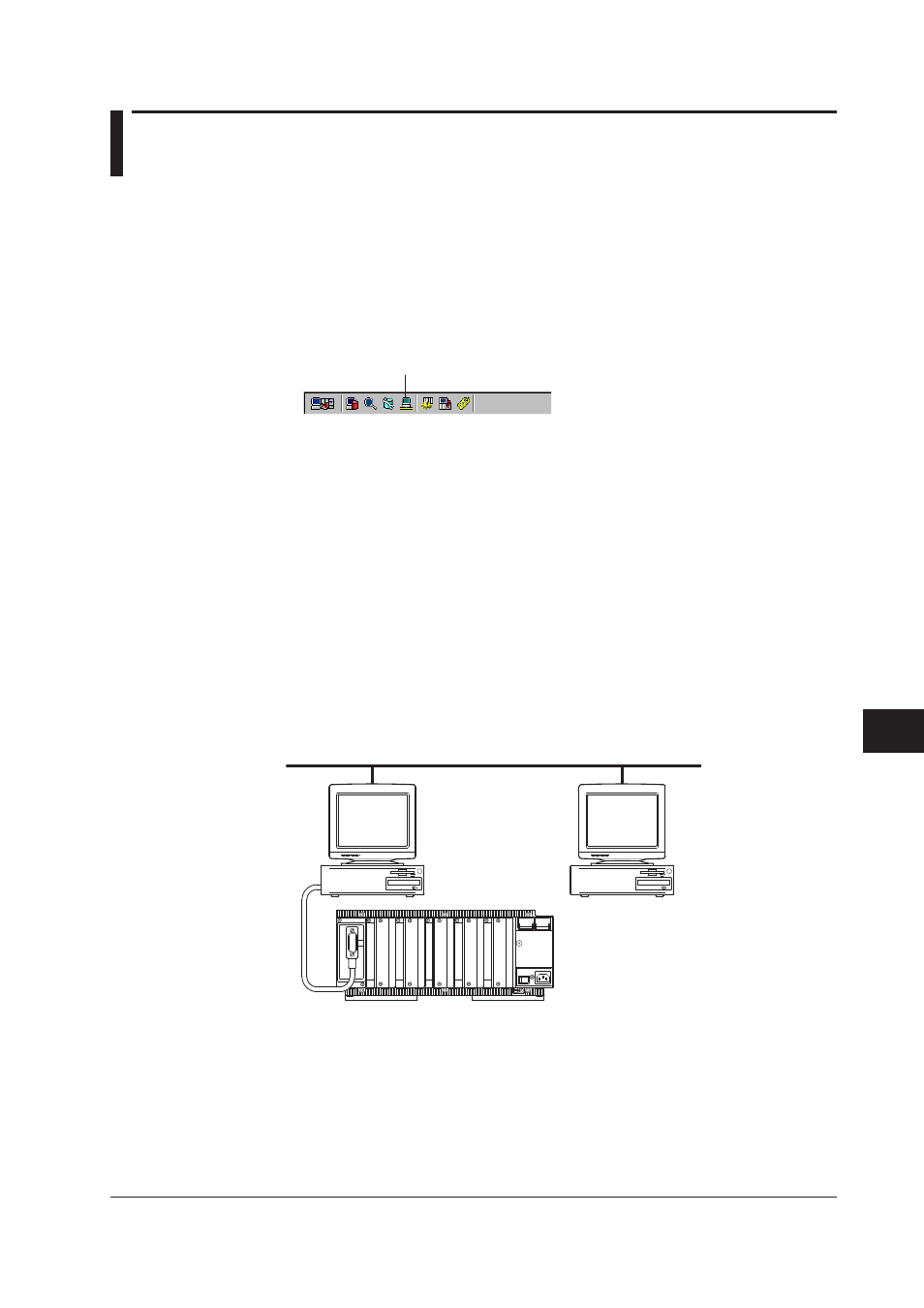

Remote Monitor start button
For DAQ 32 Plus Client Package
Select Program > YOKOGAWA DAQWORX > DAQ 32 Plus Client > Remote Monitor
from the Windows Start menu.
The Remote Monitor window opens.
Functions
The Remote Monitor function is used to observe data with a personal computer
connected to the host through a network. A monitor server is required for the host. (Please
refer to Section 5.15, “Using the Monitor Server”).
You can display an Alarm Monitor, Trend Monitor, Color Graph Monitor, Digital Monitor,
Meter Monitor, and Circular Monitor. The functions of each monitor are equal to those in
Logger software. Furthermore, cursors can be used in Alarm Log display. (Please refer to
Using cursors for Alarm Log display on page 9-7.)
Waveform display settings are also equal to Logger software.
Ethernet
Host computer
DAQ 32 Plus
DARWIN
Client computer
(Remote Monitor)
Chapter 9 Remote Monitor Software
