6-18 IM WX102-01E

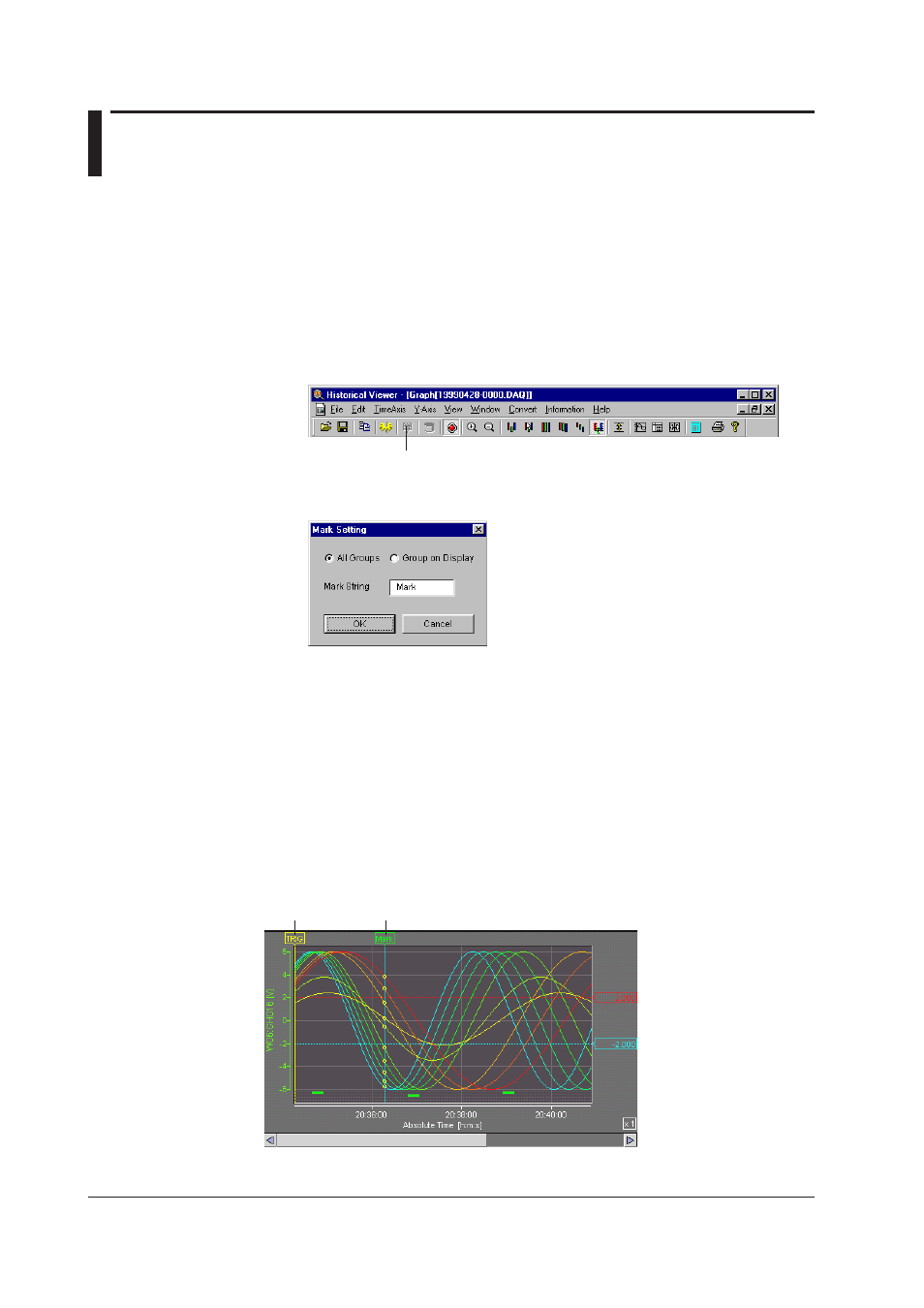

6.12 User Defined and Trigger Marks
There are two kinds of vertical bar marks, User Defined marks, and Trigger marks.
User Defined marks
User Defined marks are green marks added to and removed from arbitrary points on the
X-axis.
Set User Defined Marks in the following manner:
1 Place the mouse pointer —either in the waveform or digital Sheet area— at the
position where you wish to add a User Defined mark.
2 Select Edit > Append Mark..., or click the Add Mark button on the toolbar (see
below).
User Defined mark
3 Enter a name in the Mark Setting text box.
4 Click OK.
You can set as many user defined marks as you like by repeating steps 1 to 4.
The name of the User Defined marks appear above the waveform display area.
To change the name of a mark, double-click the mark to be changed, and repeat step 3
and 4.
Trigger marks
Trigger marks are yellow marks indicating where a trigger took place at the time the data
were acquired with a DARWIN device.
You may change the name of the trigger mark in the same way as described above.
User defined mark Trigger mark
