6.8
Using Cursors for Statistical Calculations
You can view five different statistical calculations on the data between cursor A and B:
• Maximum value.
• Minimum value.
• Peak-to-peak (P-P) value.
• Average value.
• Root-mean-square (RMS) value.
1
Place cursor A and B as explained in Section 6.6.
2
To view the statistical calculations select Window > Statistics, or click the Statistics
button on the toolbar (see below).
Statistics button

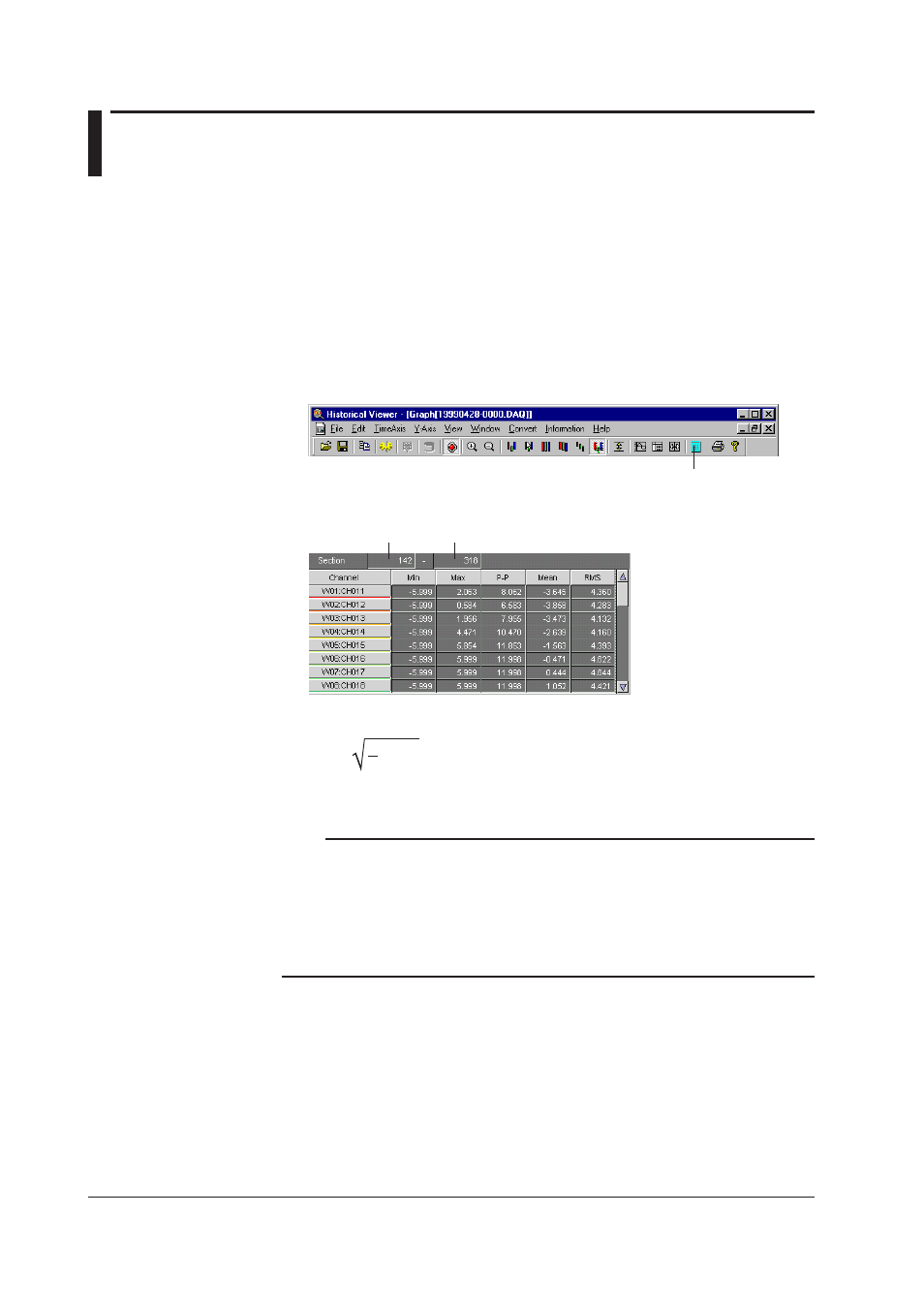

The below Statistics window will open.
First section
Last section
1
n
(x )
2
k=0
n-1
k
k
RMS =
n : umber of data
x : value
Σ
The RMS equation is as follows.
Note
• If you wish to view the statistical calculations on data at different cursor positions, reposition
the cursors. If you proceed in this way it is not necessary to close the Statistics window.
• The Statistics window displays the statistics of the group in the active window, regardless if
a waveform is displayed or not.
• The size of the Statistics window can’t be altered. Use the scrawl bar to view other channel
results.
• If no cursors are being used, statistics from the first to last channel will be displayed.
