Calibration

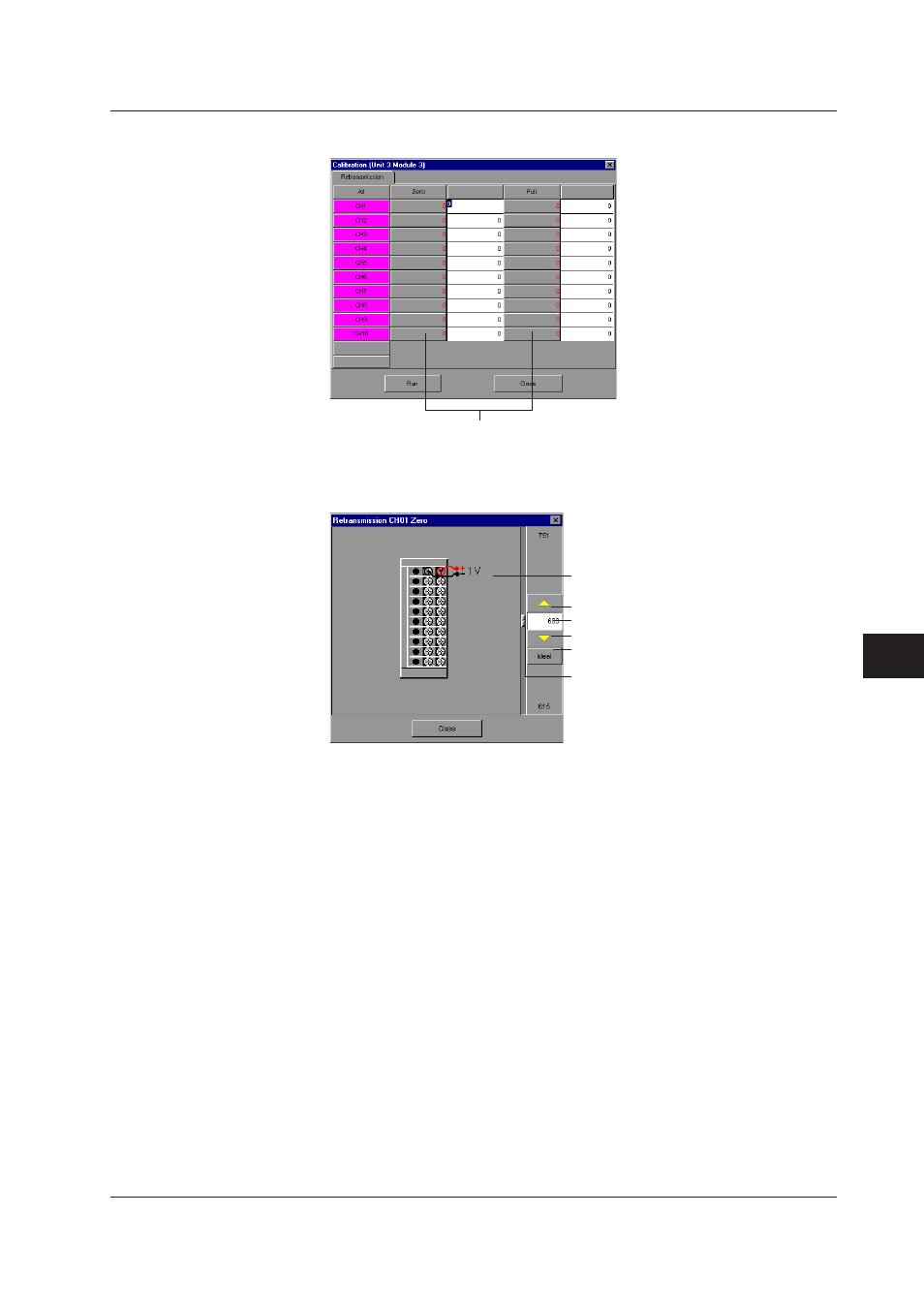

2. When you click the module to be calibrated, the calibration dialog box appears.
Current Value
3. Click the button (in the Zero or FULL column) displaying the current value of the
output terminal to be calibrated. The calibration value setting screen appears.
Output voltage / current
UP button
Setting Value
DOWN button
Ideal Value Setting button
Slide controller
4. Set the calibration value with the slice controller or by clicking the UP/DOWN
buttons. The voltage and current corresponding to the set calibration value is
output from the terminal displayed in the onscreen illustration. Click the ideal
value button to quickly select the ideal value setting.
5. When you click the [Close] button, a message appears confirming whether you
want to save the current calibration setting values. If you click [OK], the calibration
value settings confirmation message appears.
6. Click [OK] again to complete the calibration procedure. If you wish to calibrate
another terminal, repeat the procedure from step 3. [OK] is displayed on modules
for which calibration has been completed. When you want to calibrate another
module, click the [Close] button, and repeat the procedure from step2.
8.4 Calibrating the Transmission Output Module (DA, DC only)
