4.15 Setting Timers and Summer/Winter Time
Setting Timers
The Timer function can be used to trigger a number of event/action functions. It can
also set the time interval between digital printouts of analog values, or between logging
printouts.
1

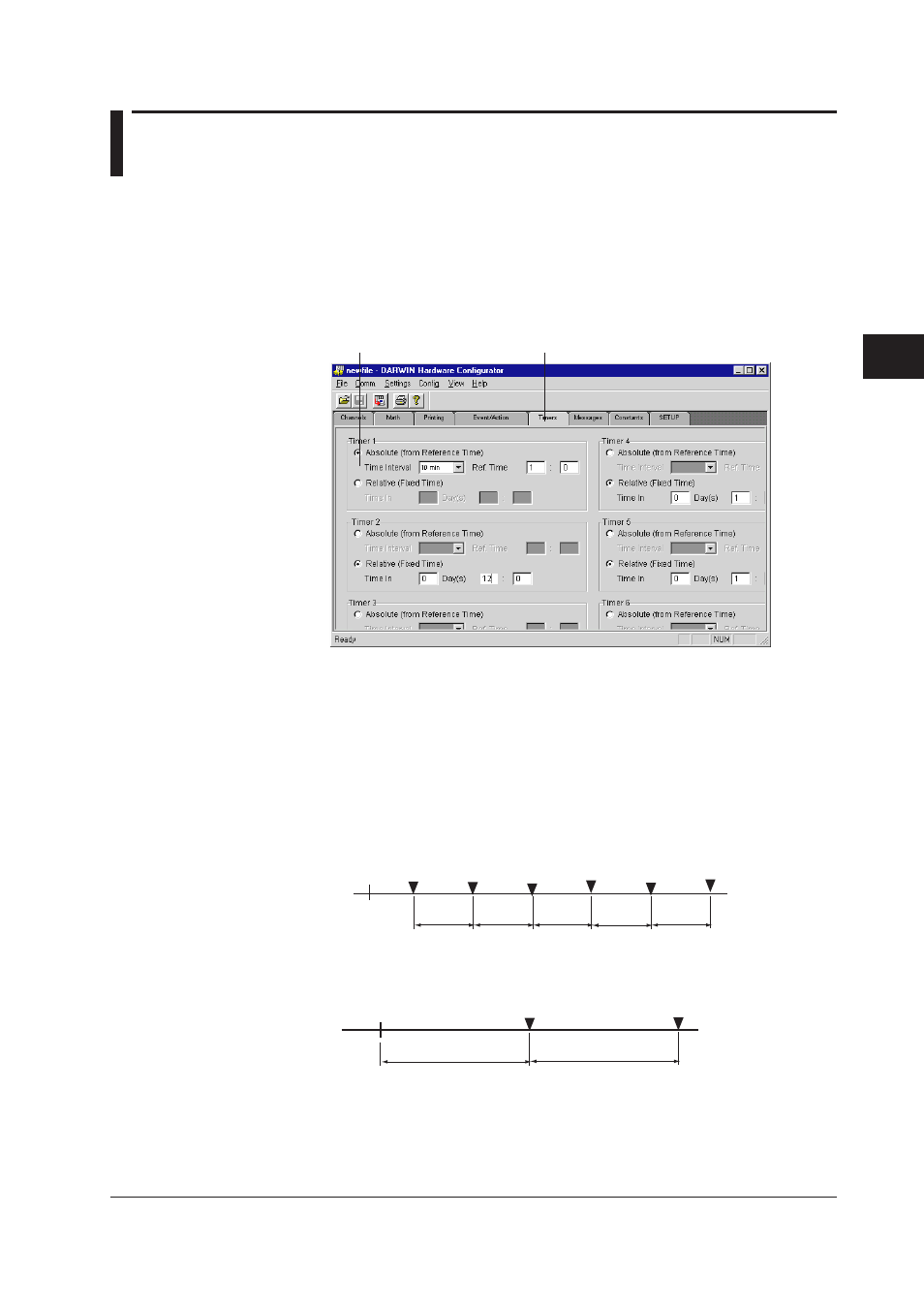

Click the Event/Action tab, or select Settings > SET (Regular) Settings >Timers
from the menubar. The Timers setting screen will open.
Timer tab Select type of Timer
2 Select the kind of Timer, Absolute (from the reference time), or Relative (a fixed
time). See the below illustration.
3 If you choose to set an Absolute time, set the desired time interval, and a
reference time. If you select a Relative time, set the fixed amount of days,
hours, and minutes you would like between events. Event detection occurs every
specified time interval. Six timers can be set. They are reset with an action.
• Relative time setting
Setting completed/
timer reset
Specified time passes
• Absolute time setting
A A A A A
A: Specified time interval
Specified time passes
Event detection Event detection
Event
detection
Event
detection
Reference
time/
Event
detection
Event
detection
Event
detection
Setting
completed
Event
detection
