5-14 IM WX102-01E

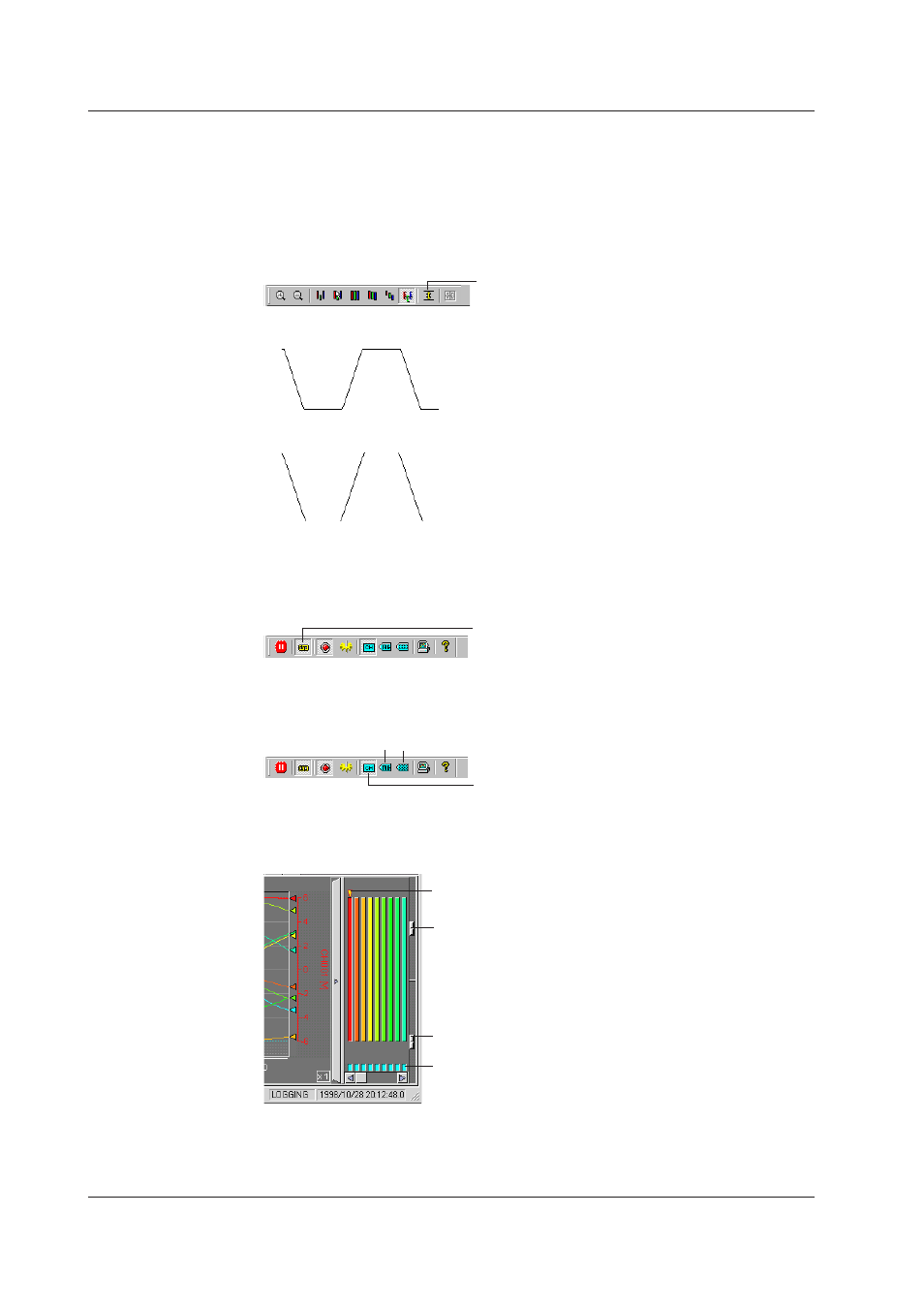

Setting the Y-Axis display limiting Clip
It’s possible to apply a display limit Clip to waveforms you view. When you set the display
limit function, waveforms will be limited between the minimum and maximum values on
the Y-Axis scale. Waveforms with data points smaller than the minimum scale value or
larger than the maximum scale value will be truncated. This function enables you to view
waveforms outside the screen range as horizontal lines in the display area.
Click the Clip button (below) from the monitor toolbar, or select Y-Axis > Clip.
Clip button
• Waveform without Clip :
• Waveform with Clip :
Linking other monitors
If you Link the monitor display with other monitor displays, settings for one display will
get copied to all other displays. To do so, click the Link button from the monitor toolbar, or
select Trend Monitor > Monitor Link.
Link button
Selecting Channel, Tag No. or Tag Comment labeling
Click the Channel, Tag No. or Tag Comment button from the monitor toolbar, or select
View > and select either Channel, Tag No. or Tag Comment.
Tag comment Tag No.
Channel
Setting waveform display ON/OFF inside the display area
Click the channel buttons on the bottom of the Zone display area on right side of the
waveform display window.
Grid brilliance
Waveform
area brilliance
Waveforms
ON/OFF
Selected zone
indicator
Adjusting display grid and background brilliance
Move the buttons on the right of the Zone display area on right side of the waveform
display window up and down to adjust display grid and background colors.
5.6 Changing Monitor Display
