Logger Software
• User Zone
The User Zone shows Edit Zone settings, but these zone settings can not be changed.

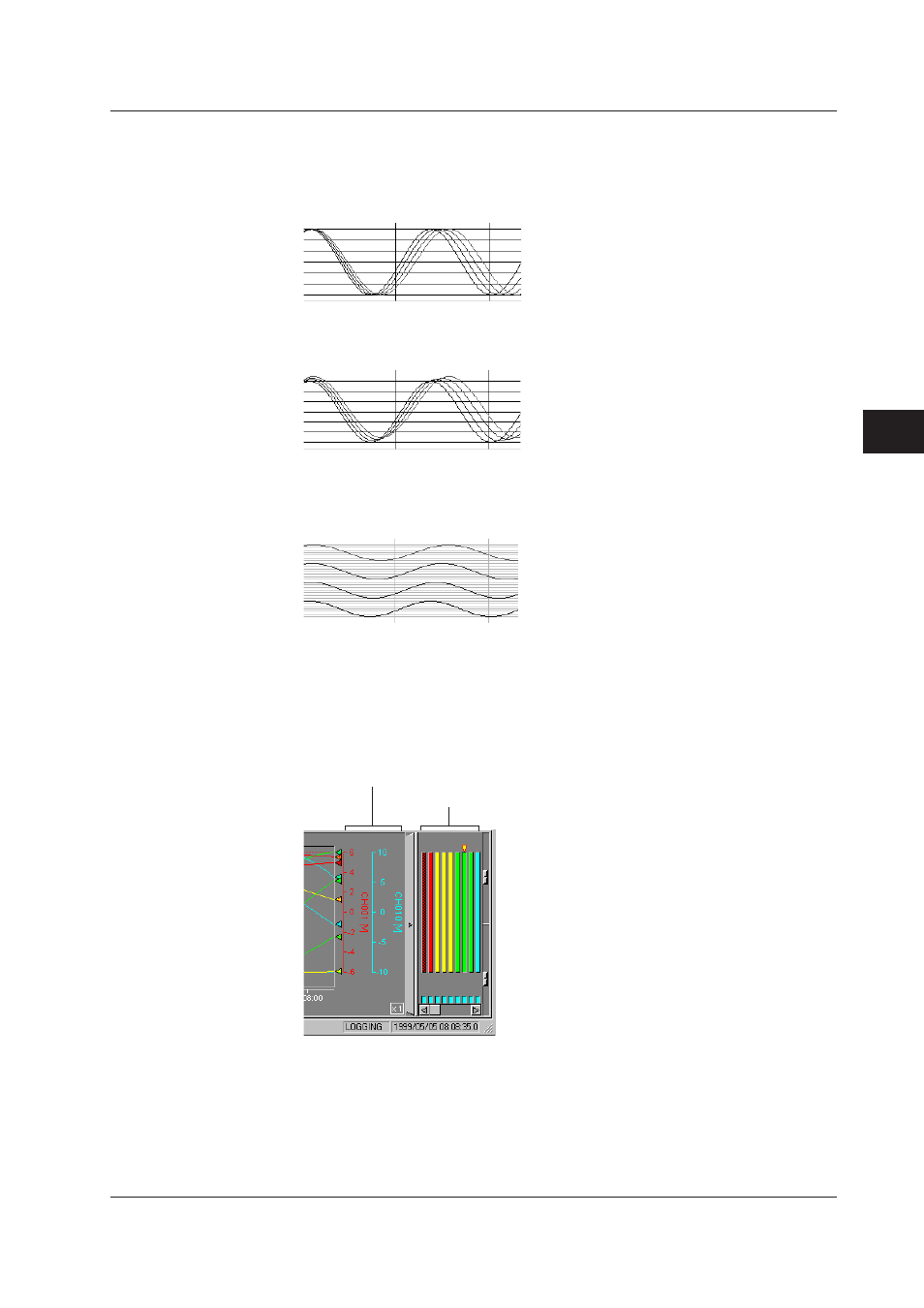

• Full Zone
Use the Full Zone to display all waveforms in a 100% zone range.
• Slide Zone
In Slide zone all waveforms scales are shifted slightly from top to bottom.
• Auto Zone
In Auto Zone the Y-axis of the waveform display area is divided into equal parts for
each selected waveform.
• Multi-Axis Zone
Displaying multiple Y-axis.
Select an axis for display as follows:
• Use the General Display Settings (See section 5.3, “Group Settings”).
• If display in the Trend Monitor screen is being paused, you can drag and drop Zone
display bars, to and from the Y-axis display area in the Trend Monitor screen.
Y-axis display area
Zone display bars
5.6 Changing Monitor Display
