4.11 Setting Math Channel Equations
1

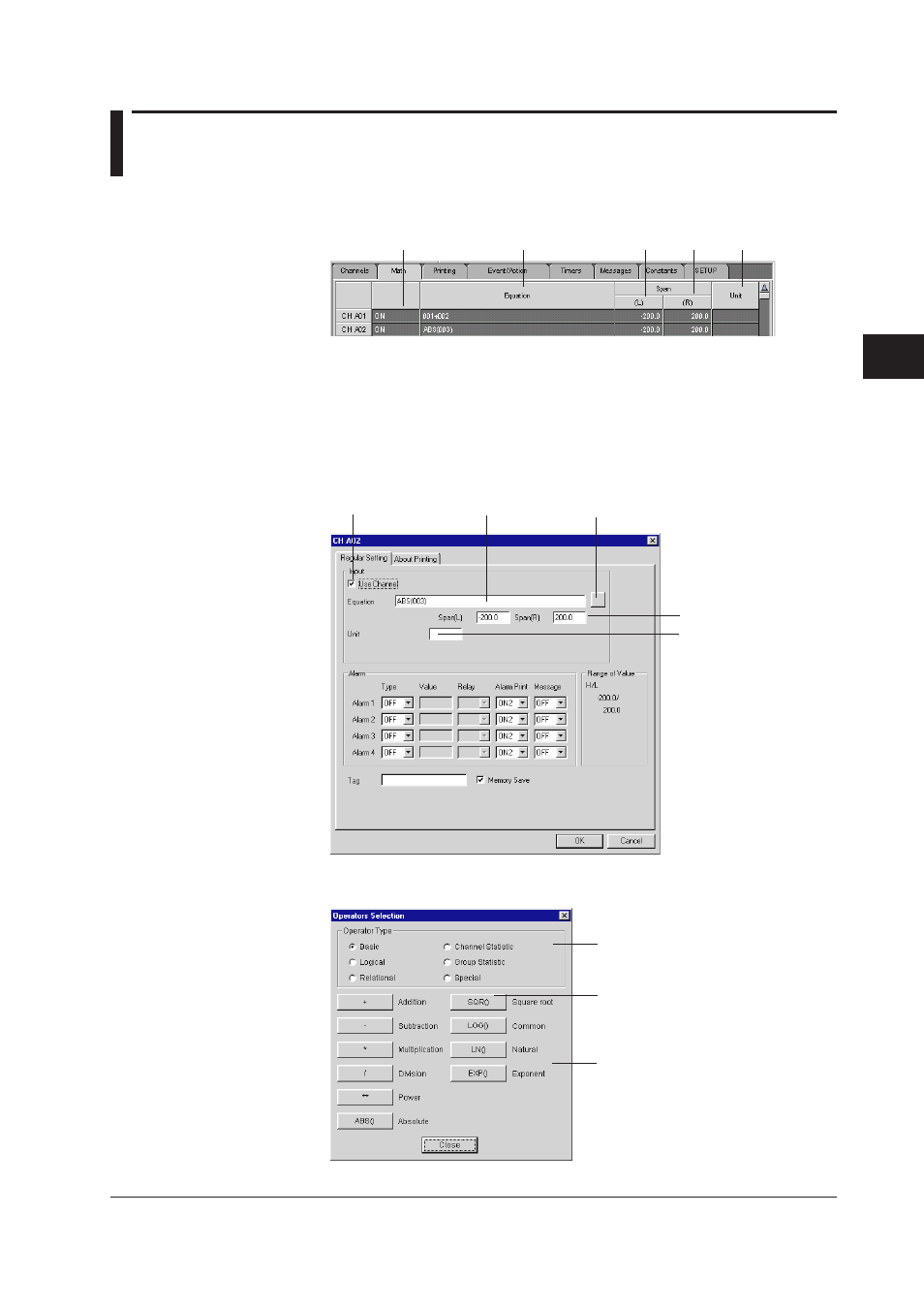

For the Math channel related setting screen click the Math tab, or select Settings
> SET (Regular) Settings > Math Functions from the menubar.
Math channel ON/OFF
Equations
Left and right span Unit
2
Set Math ON to activate the Math channel.
3
Set a Math Channel Equation. To use the equation operators, first double-click
the desired Math channel number, displayed on the left side of the Math setting
screen. Then, click the square button on the right side of the equation setting
box. In the Operators Selection dialog box choose the desired equation operator,
which will appear in the equation setting box when clicked.
Span setting
Unit
Equation
setting
Activate
Math channel
Equation operators
(only with M1 option)
4
Set the display/recording span in the –9999999~9999999 range.
Operator types
Equations
Click the buttons
to enter equations
