5.2 Logging Configuration
Please set the following conditions before collecting measurement data:

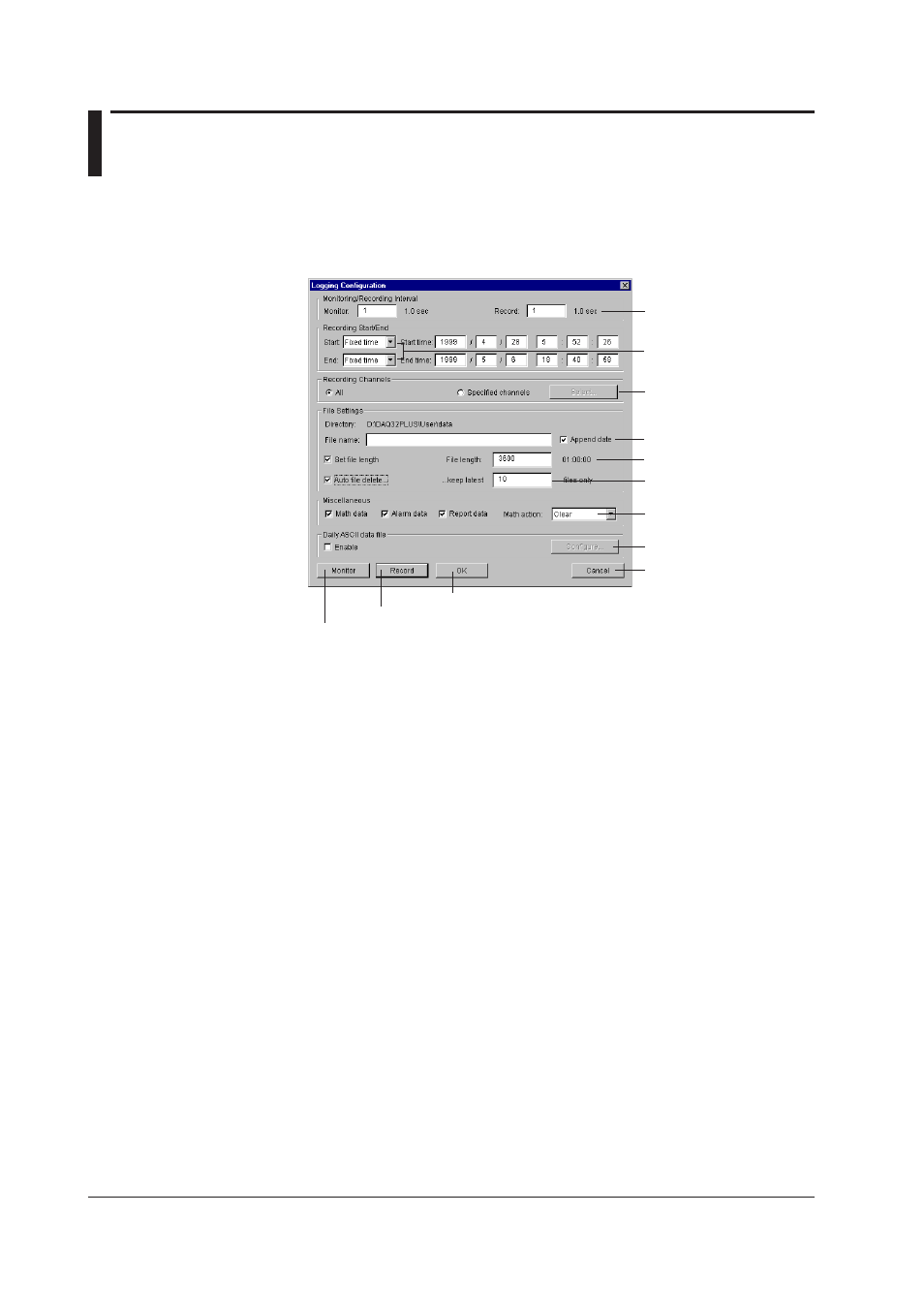

1 Select from the Logger menubar Logging > Logging Configuration... to open the
Logging Configuration setting screen.
Math action
Daily ASCII files
File length
Auto overwriting
File name
Saving channel
settings
Recording Start/End
Monitoring/
recording interval
Cancel settings
Acknowledge settings
Acknowledge settings and start reporting
Acknowledge settings and start monitoring
Monitoring/Recording Interval
2 Enter the interval for renewing the observation monitor in the Monitor setting box.
The monitoring interval is the integer of the DA100/DC100/DR measurement
interval.
3 Enter the recording interval for writing data to, for example, the harddisk of your
PC, in the Record interval setting box. The recording interval is the integer of the
monitoring interval.
The monitoring and recording intervals are displayed on the right side of the
Monitor/Record interval setting boxes.
Recording Start/End
Set starting and ending conditions for writing measurement data to, for example, the
harddisk of your PC.
4 Starting Time: Set the Start dialog box to On Record or Fixed time.
On Record, means recording will start on the moment you press the Record icon
on the Logger toolbar, or when you select Logging > Record from the Logger
menubar.
When selecting Fixed Time, set the automatic recording starting time.
5 Ending Time: Set the End dialog box to None, Data count or Fixed time.
None: Recording will start on the moment you press the Stop icon on the Logger
toolbar, or when you select Logging > Stop from the Logger menubar.
Data count: Enter the exact datacount after which you want recording to hold.
When selecting Fixed Time, set the automatic recording ending time.
