4.1 Using DARWIN Hardware Configurator
DARWIN Hardware Configurator enables you to make settings to the DA100/DC100/DR.
Settings differ for each device. The hardware setting data can be saved to a PC.
Starting DARWIN Hardware Configurator
Select the Project you want to open. Click the DARWIN Hardware Configurator button on
the Launcher toolbar, or right-click the Launcher icon on the taskbar and select DARWIN
Hardware Configurator.
Setting Screen

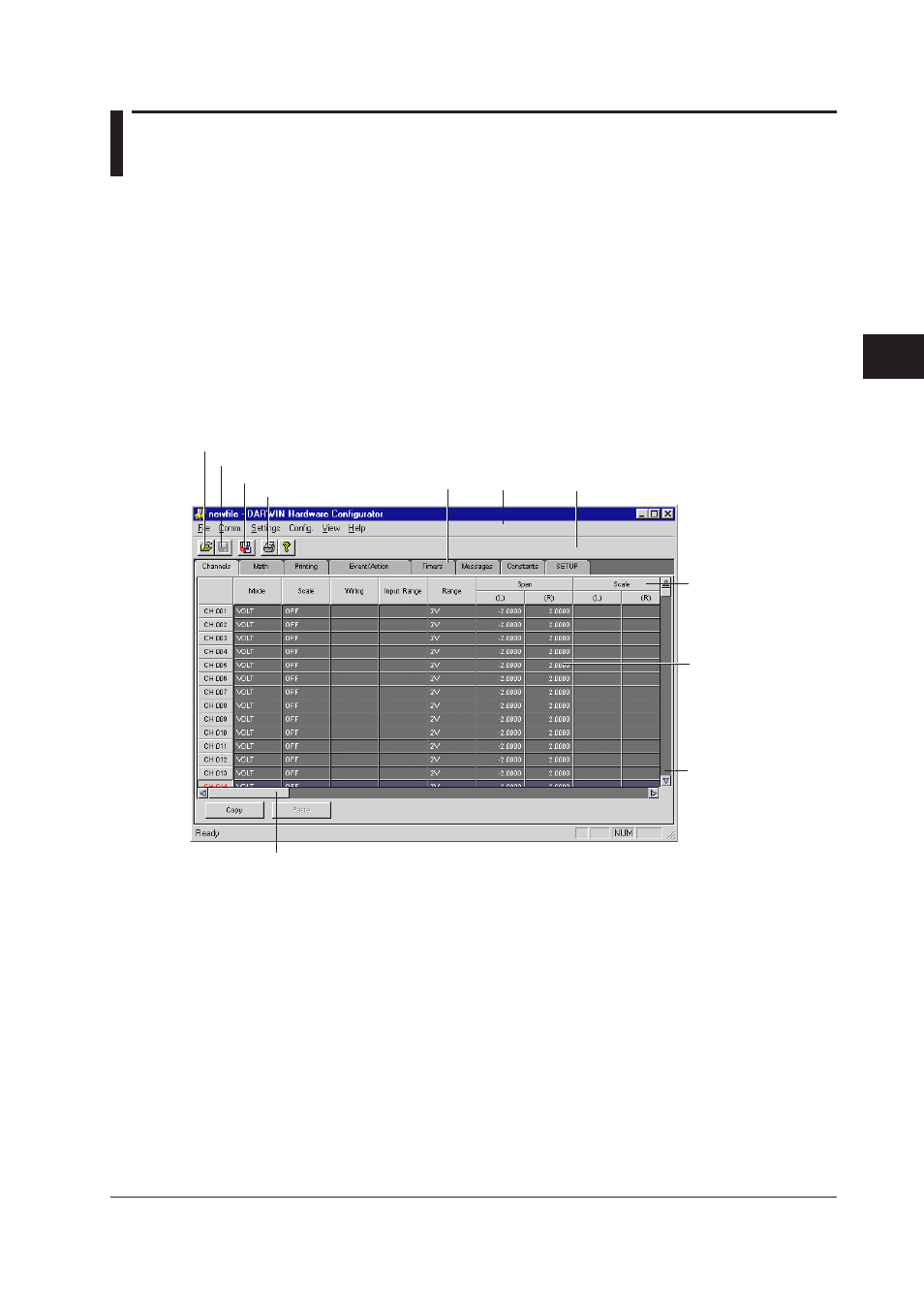

The DARWIN Hardware Configurator setting screen (for the DA100) should look like
below illustration
Print button
Receive settings button
Save button
File open button
Tags Menu bar
Horizontal scroll
Vertical scroll
Toolbar
Setting items. Change
when the setting screen
is changed with a tab.
Setting area.
Click to change.
Enter the desired value,
or select an item from
the pull-down menu, if
it appears
Displayed tabs and setting items, differ depending on the kind of connected device.
Base Setting Data
Three kinds of data can serve as basis for further settings:
• Data earlier saved to the PC harddisk or to a floppydisk from the DA100, DC100, or
DR.
• Setting conditions when Hardware Configurator closed last.
• Data settings of loaded from a DA100/DC100/DR connected to a PC.
Chapter 4 DARWIN Hardware Configurator
