DAR
WIN Hardware Configurator
4.20 Setting Alarm Interval, Hysteresis, and Alarm
Display Hold

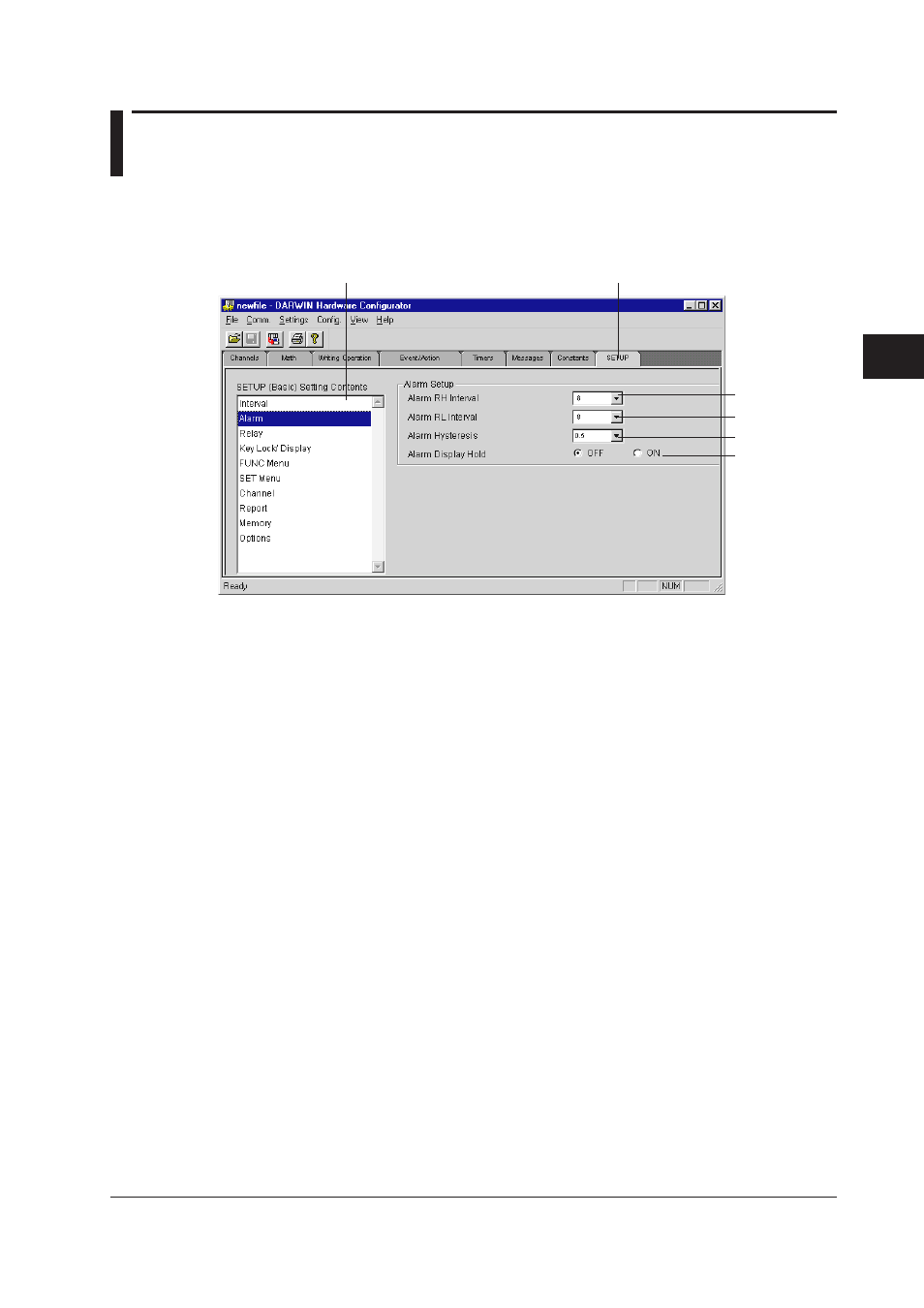

Open the Alarm Setup setting screen (see below) for Alarm Interval, Hysteresis, and
Alarm Display Hold as follows:
Click the SETUP tab and select Alarm from the SETUP (Basic) Setting contents box, or
select from the menubar Settings > SETUP (Basic) Settings > Alarm Setup.
Select a SETUP topic SETUP tab
Alarm display hold
(only DC100/DR)
RH alarm interval
RL alarm interval
Hysteresis setting
Alarm Interval
For high/low limit on rate-of-change alarms, variation is measured over a preset interval.
If the variation exceeds the preset value, an alarm occurs. This interval can be set and
applied to all channels.
Hysteresis
Set the width between the value of alarm occurrence and its release. This setting
prevents frequent alarm occurrences/releases in an unstable environment. Hysteresis
values can be set in the 0–1% percentage range of the span. The hysteresis setting is
used for high and low limit alarms.
Set the span percentage using the Alarm Hysteresis pull-down box.
Alarm Display Hold (DC100, and DR only)
For DC100, and DR select whether to hold the alarm indicator after the alarm is released,
or not.
