SMP Frame (SAS only)

Double‐click SMP Frame in the Pattern window to open the SMP Frame Pattern dialog.

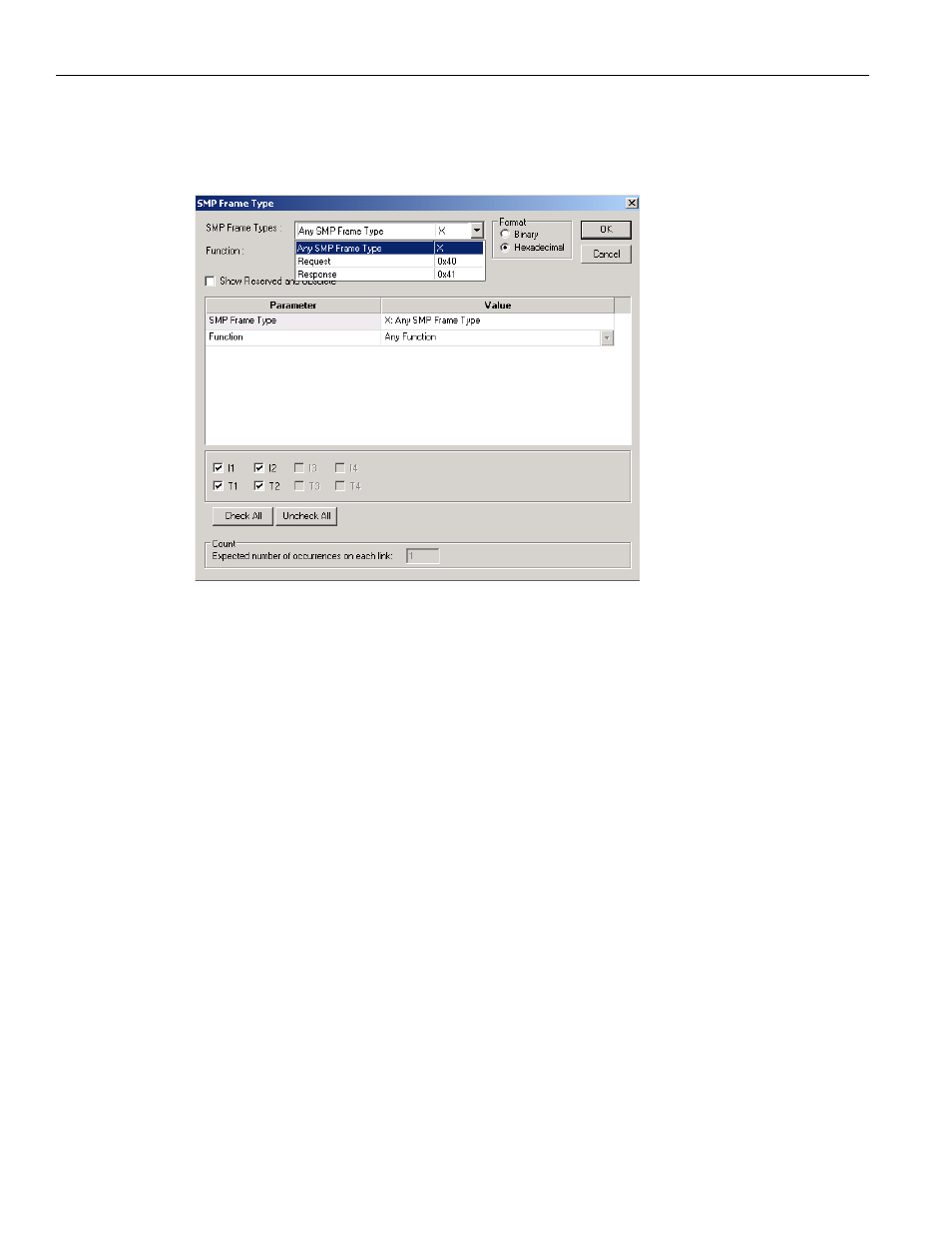

Figure 2.57: SAS: SMP Frame Pattern Dialog

SAS vs. SATA: Not available in SATA.

Choose a SMP Frame Type and Function from the drop‐down list and click OK.
