Teledyne LeCroy Analysis
236 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
Lanes Report (SAS)
To display the Lanes Report, click the Lanes tab. The Lanes Report displays the report data
in columns with the following information (see
Figure 3.42 on page 236 ):
 Port
 Open Accept: All, Custom, or a number
 Open Reject: All, Custom, or a number
 AIP Waiting on Con.
 Break
 SCSI Command: All, Custom, or a number
 ATA Command: All, Custom, or a number
 SMP Command: All, Custom, or a number
 Out Standing Command: All, Custom, or a number
 Transfer Bytes: All, Custom, or a number
 Link Utilization (time)
 Link Utilization %

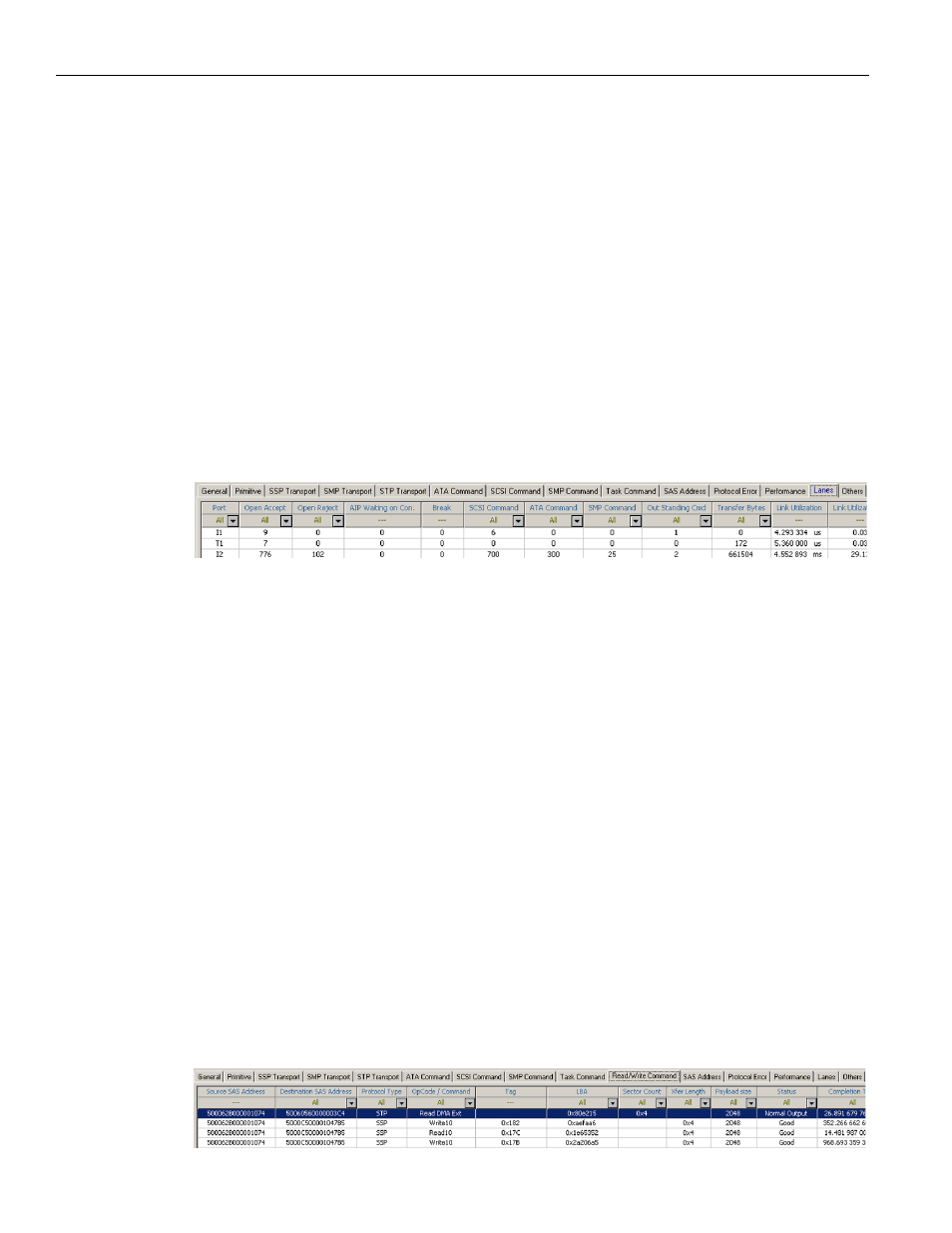

Figure 3.42: SAS Lanes Report
Read/Write Command Report (SAS)
To display the Read/Write Command Report, click the Read/Write Command tab. You
can enable or disable creation of this page under Preferences (see
“Preferences” on
page 305 ). The Read/Write Command report displays the report data in columns with the
following information:
 Source SAS Address
 Destination SAS Address
 Protocol Type
 OpCode/Command
 Tag
 LBA
 Sector Count
 Xfer Length
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Good
 Completion Time
 Performance
 Standard Deviation
 Count: All, Custom, or a number
Figure 3.43: SAS: Read Write Command Report
