Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 399
Sierra Trainer Menus Teledyne LeCroy
 Analyzer and Trainer on same port, and Analyzer and Trainer on another
port: You can generate initiator/target traffic and also capture the traffic gen‐
erated on two ports.
 Trainer on one port, and Analyzer on another port: Trainer is run on a port
generating initiator/target traffic and Analyzer is run on the other port cap‐
turing the traffic.
 Trainer and Jammer on same port: You can generate initiator/target traffic
and also inject errors on the traffic between initiator and target on the port.
Note: See “Multi‐Port Trainer Script Assignments to Links” on page 416 .
Display Options: Selects what information to display. See “Display Options” on page 469 .

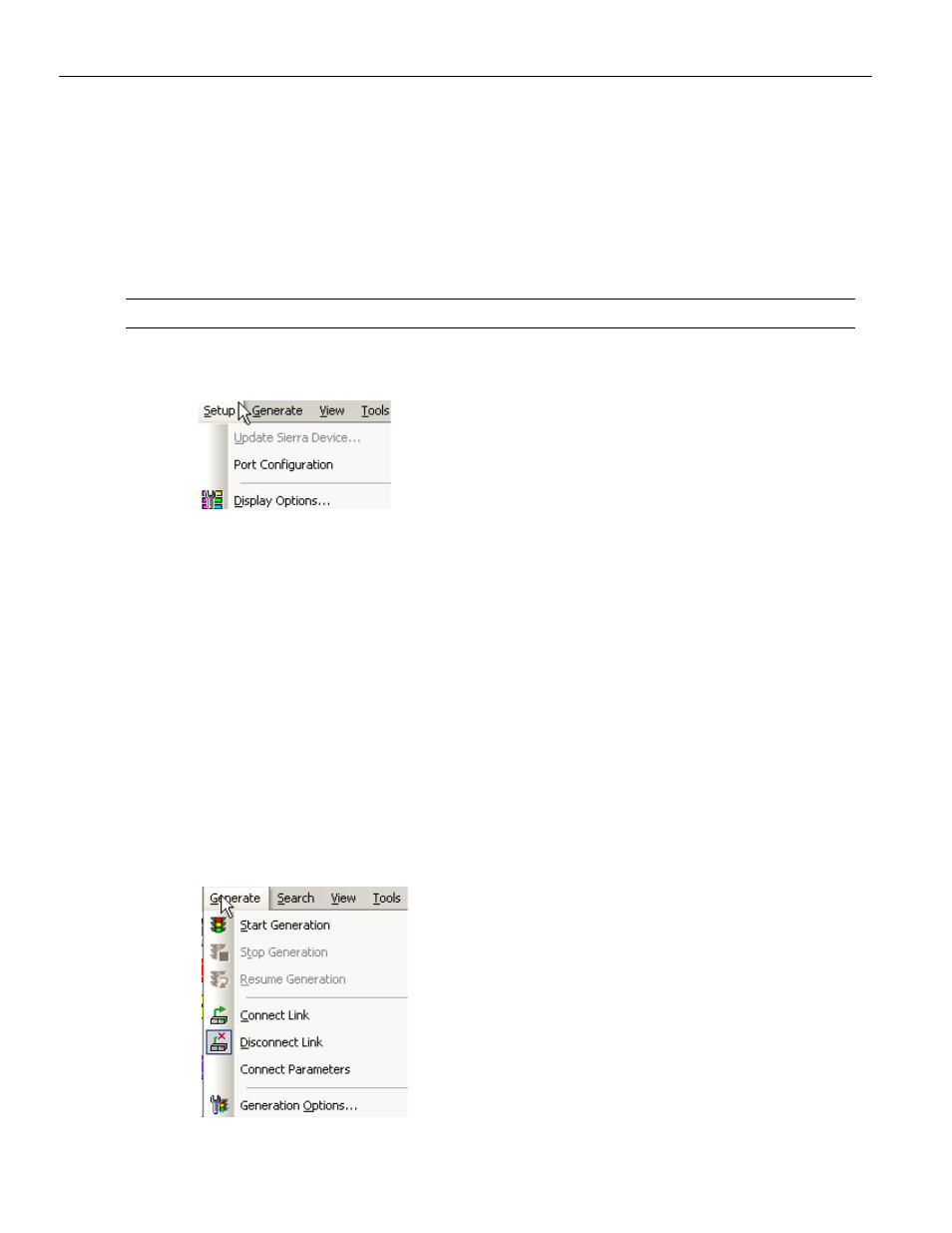

Figure 5.3: Trainer Setup Menu
5.1.3 Generate Menu
Start Generation: Causes the Generator to begin generation.
Stop Generation: Causes the Generator to stop generation.
Resume Generation: Causes the Generator to resume generation after a stop.
Connect Link: Automatically bring the linkup to the Host, Device, Initiator, or Target
connected to the Generator.
Disconnect Link: Disconnect link.
Connect Parameters: Set the “Identify” frame parameter settings to keep the link
connected. See
“Connection Parameters” on page 474 .
Generation Options: Setup the Generation Rules. See “Generation Options” on page 457 .
Figure 5.4: Trainer Generate Menu
