Teledyne LeCroy Analysis
240 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
 Response DC Idle Time
 Request Wakeup Time
 Response Wakeup Time
 Count: All, Custom, or a number

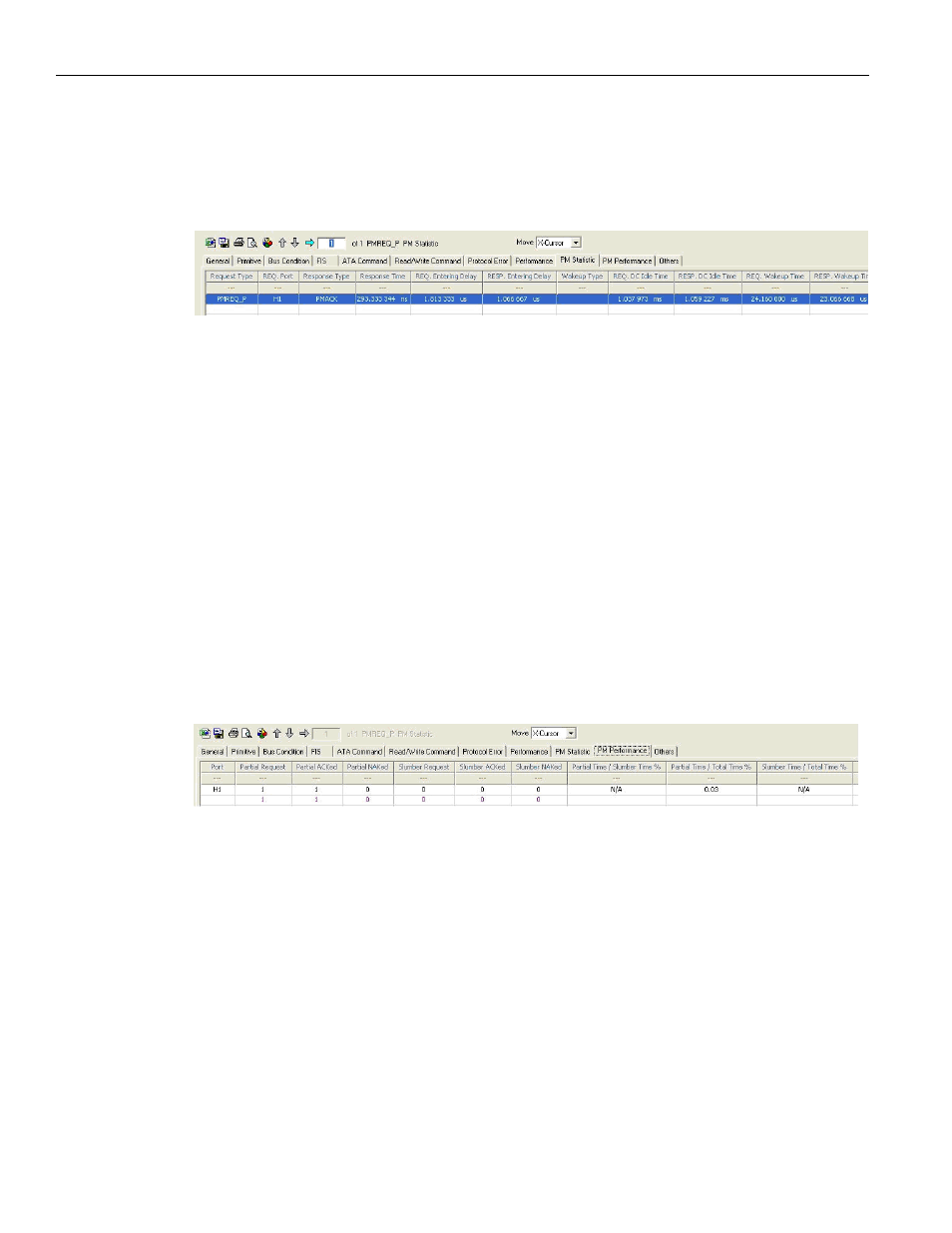

Figure 3.48: SATA: PM Statistic Report
PM Performance Report (SATA)
To display the PM Performance Report, click the PM Performance tab. The
PM Performance Report displays (see
Figure 3.49 on page 240 ) information in the
following columns:
 Port
 Partial Request
 Partial ACKed
 Partial NACKed
 Slumber Request
 Slumber ACKed
 Slumber NACKed
 Partial Time / Slumber Time %
 Partial Time / Total Time %
 Slumber Time / Total Time %
Figure 3.49: SATA: PM Performance Report
Read Write Command Report (SATA)
To display the Read/Write Command Report (see Figure 3.50 on page 241 ), click the
Read/Write Command tab. You can enable or disable creation of this page under
Preferences (see
“Preferences” on page 305 ). The Read/Write Command Report displays
information in the following columns:
 Time Stamp
 OpCode/Command
 LBA
 Sector Count
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Good
 Completion Time
 Count: All, Custom, or a number
