2.12.3 Connection Management (SAS only)
Click the Connection Management icon in the Errors window to display the Connection
Management Setting dialog.

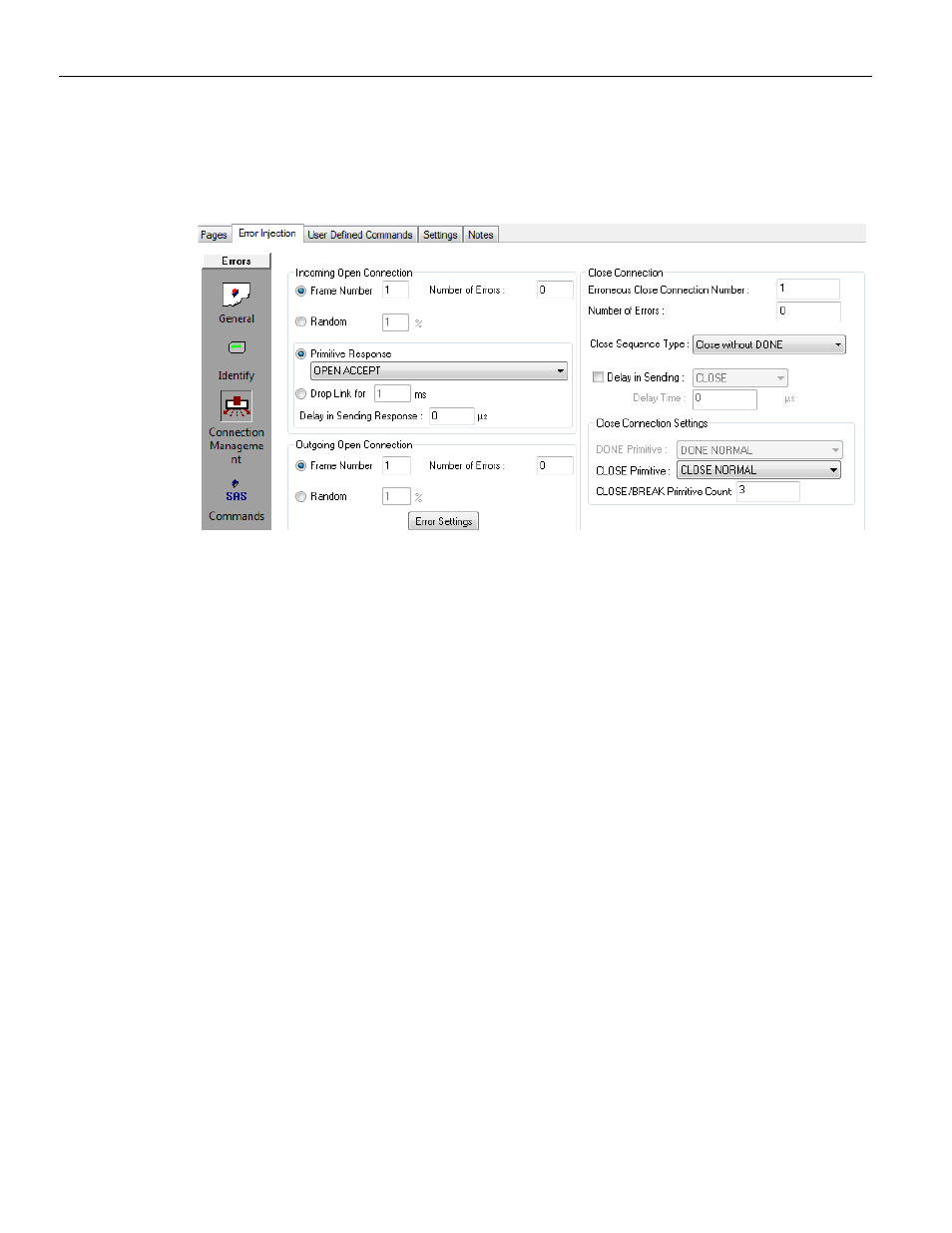

Figure 2.180: SAS: Connection Management Setting Dialog
Open Connection Definition
Incoming Frame Settings
1. In the Open Connection dialog, enter a value for the Incoming Open Frame Number
and the Number of Errors in the corresponding text box.
2. Click the Random radio button if desired and enter a value.
3. Click the down arrow next to the Primitive Response: drop down list box, choose a
primitive response, and enter a value for the Delay in Sending Response text box.
4. Click the Drop Link for radio button if desired and enter a value
5. Enter a value for Outgoing Open Frame Number and Number of Errors in the
corresponding text box.
Outgoing Frame Settings
1. In the Outgoing Open Connection pane, enter a value for the Frame Number and
the Number of Errors in the corresponding text box (see Figure 2.181 on page 186 ).
2. Click the Random radio button if desired and enter a value
3. Click Error Settings to display the Open Frame Setting dialog. Check the errors to
introduce and click OK.
