Teledyne LeCroy Target and Device Emulation
178 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
SATA: To set up a Device Emulation, click File > New > SATA Device Emulator. 
The Device Emulation project opens with the Pages tab selected.

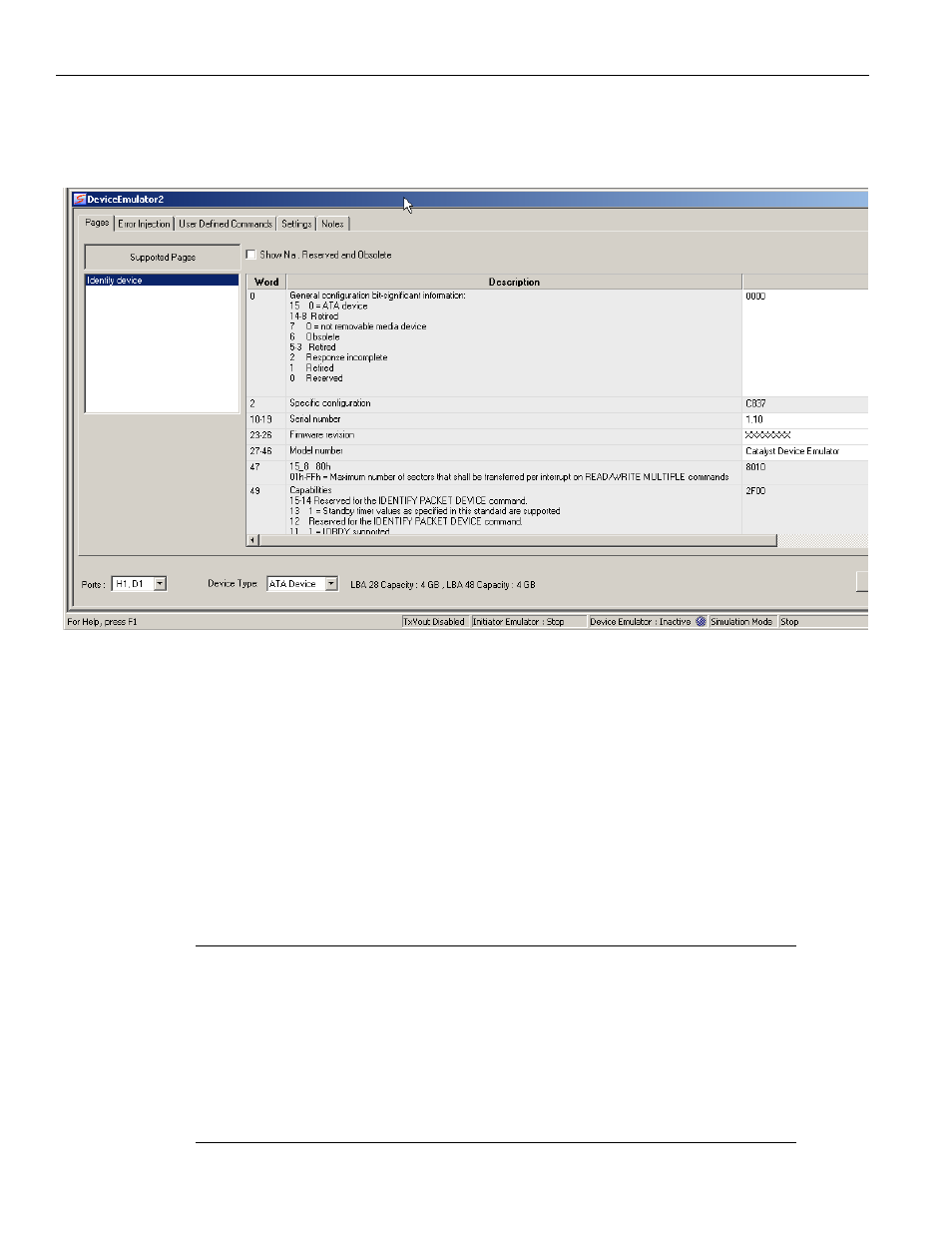

Figure 2.173: SATA: Device Emulation Project Pages Tab
The Device Emulator pages open with default settings for each page. To change settings
for your application:
1. Set the Device Type of either ATA or ATAPI
2. Set values for each of the enabled (White) Value fields on the Identify page.
3. To reset the pages to the default settings, click the Default Settings button.
To use a previously defined emulation, click the Import button and select an emulation.
Words with Settable Bits
The table below lists the words with settable bits.
TABLE 2.1:
Word Bit Numbers of Settable Bits
0 All
10‐19 All
23‐26 All
27‐46 All
48 All
75 0, 1, 2, 3 and 4
