398 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
5.1.1 File Menu
New GenFile: Starts a new Generation File.
Open: Opens a file.
Close: Closes the current window.
Launch Analyzer: Displays Analyzer Window.
Launch Jammer: Displays Jammer (Infusion) Window.
Save As: Saves the current file with a new name.
Print: Prints part or all of the current traffic data file.
Print Preview: Produces an on‐screen preview before printing.
Print Setup: Sets the options for the current or new printer.
Edit Comment: Allows you to enter a comment in a dialog.
Export: Saves trace as text file in Packet View Format.
Convert: Converts an SATrainer Generation File (.stg file) to a Generation File (.ssg file).

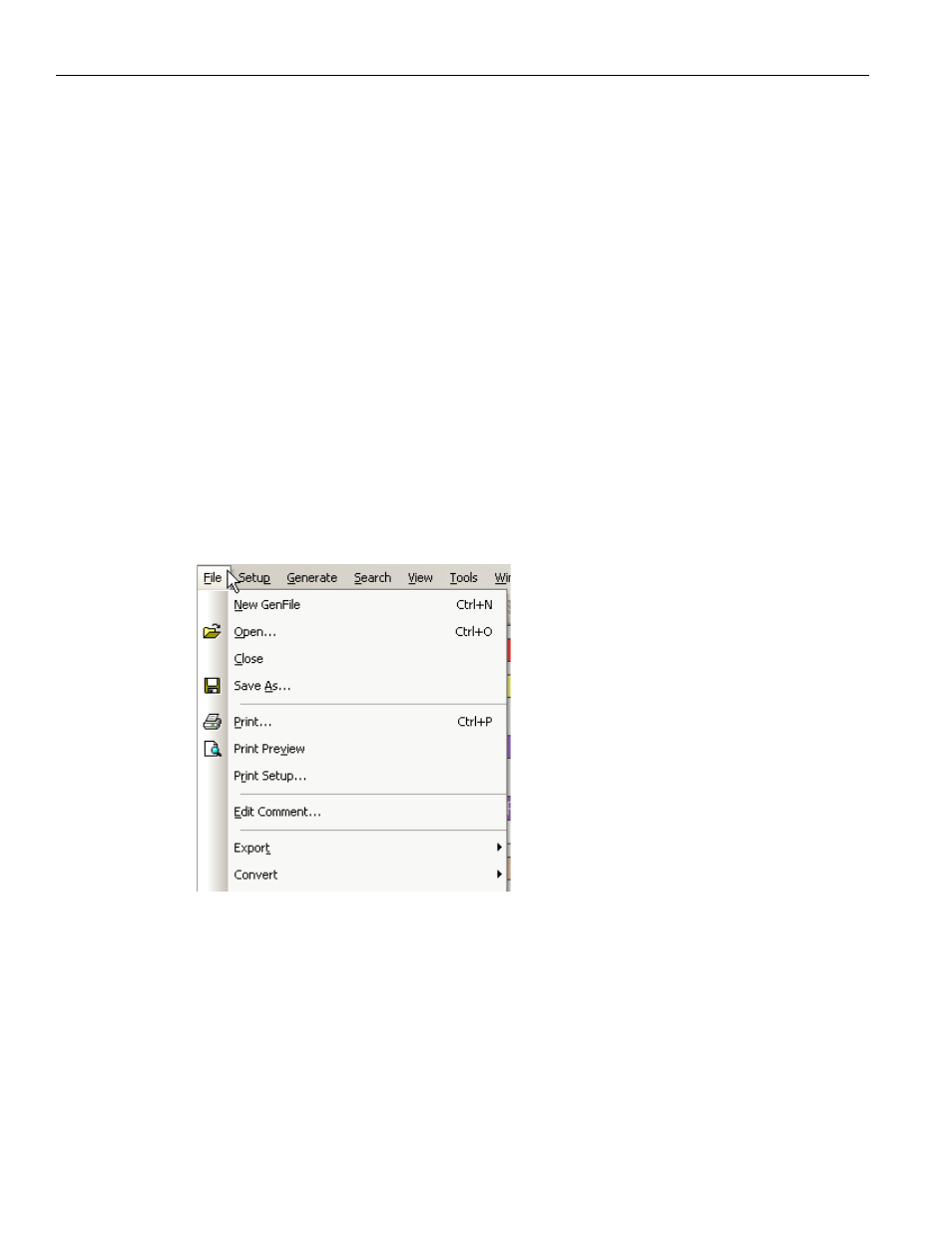

Figure 5.2: Trainer File Menu
5.1.2 Setup Menu
 Update Sierra Device: See “Update Device” on page 316 .
 Port Configuration:
You can select different combinations of Trainer with Analyzer and Jammer. When
running two different applications on the ports, you must set the same port
configuration in both of them. See
“Ports Configuration” on page 108 . The following
describes possible configurations:
 Analyzer and Trainer on same port: You can generate initiator/target traffic
and also capture the traffic generated.
