Teledyne LeCroy Display Options
470 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
5.18.2 Color Display Options
The program uses a default set of colors for each type of data in each group of data. The
colors and color combinations are appropriate for most graphic systems. You can alter
any color.
To specify a color for an information type, in the Color/Format/Hiding tab, select a row
(such as Data) in the Group and Color column and expand it.
Select a data type (such as Data Length) in the Group, then select a color in the Color
section, using Standard or Custom colors. Use a bright color for each important field.

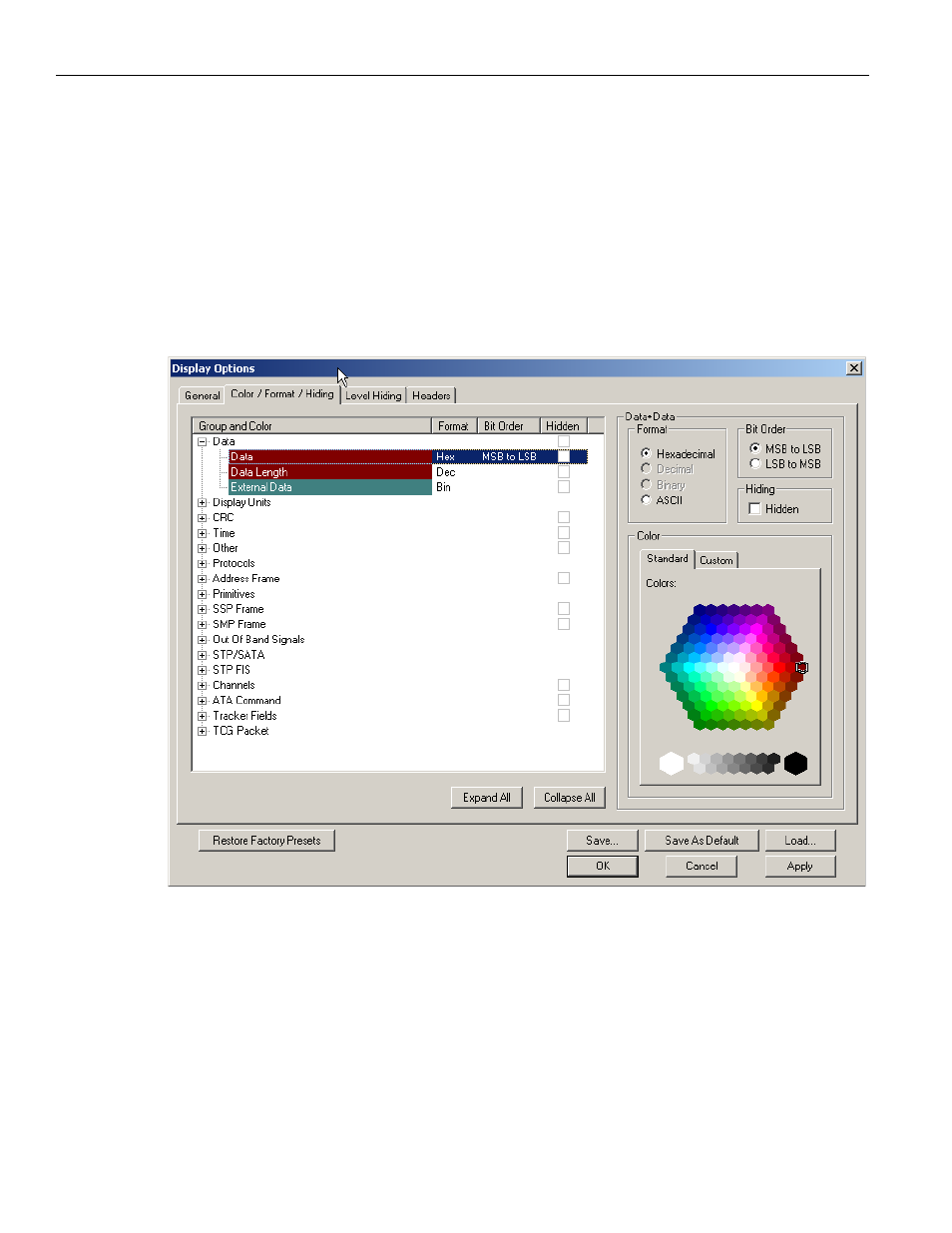

Figure 5.28: Display Options Dialog - Color
