Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 173
Performance Analysis Teledyne LeCroy
 Number of Data Frame Events
 Number of Protocol Errors
 Number of Completed Commands
 Number of Command Events
 Event Times:
 Total Frame Event Time
 Total Data Frame Time
 Total Data Payload Time
 Total Idle Time
Settings
Click the Setting tab to display the settings dialog.

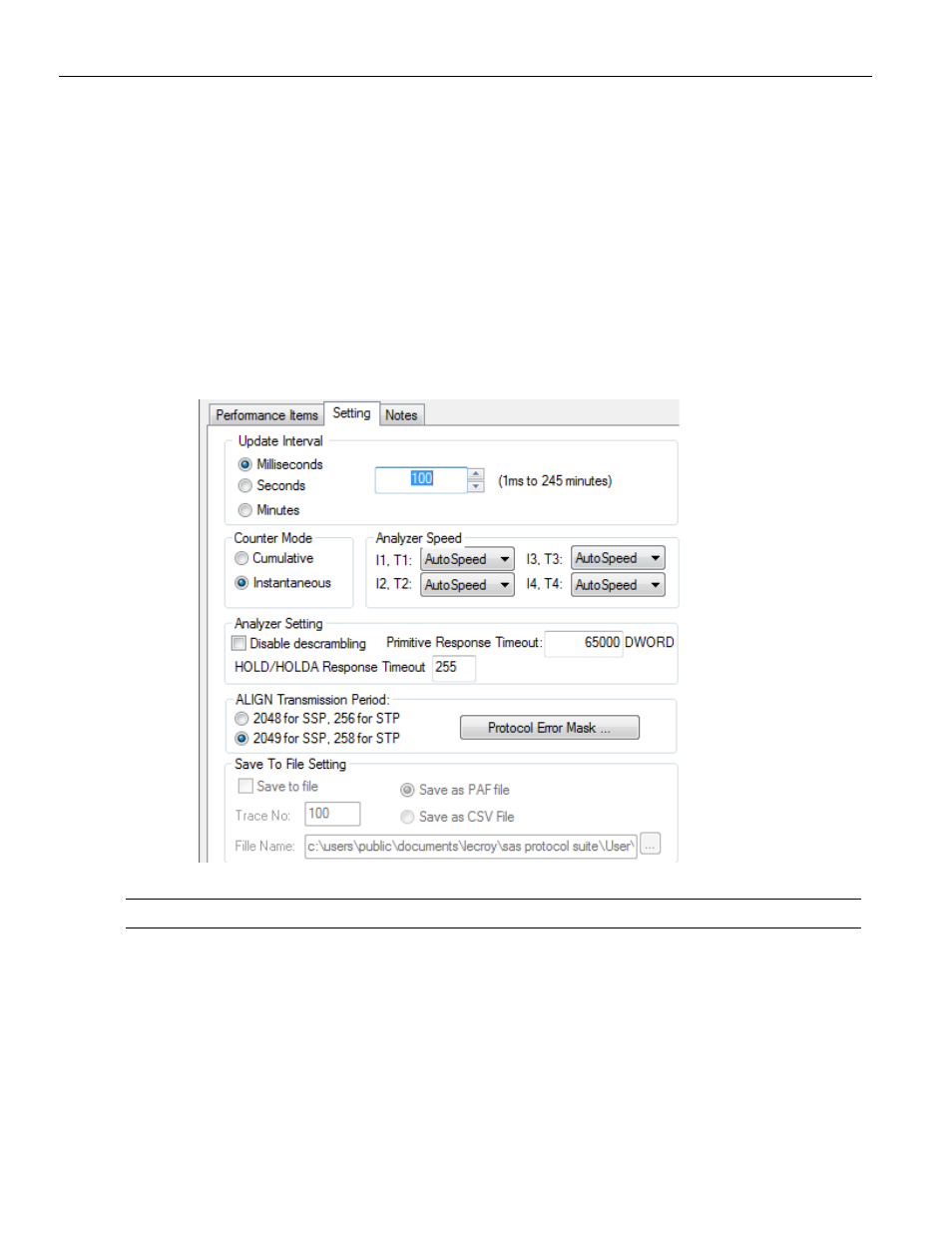

Figure 2.168: SAS: Settings Dialog
Note: When you use the Exerciser, channel 2 is not usable and is greyed out.
